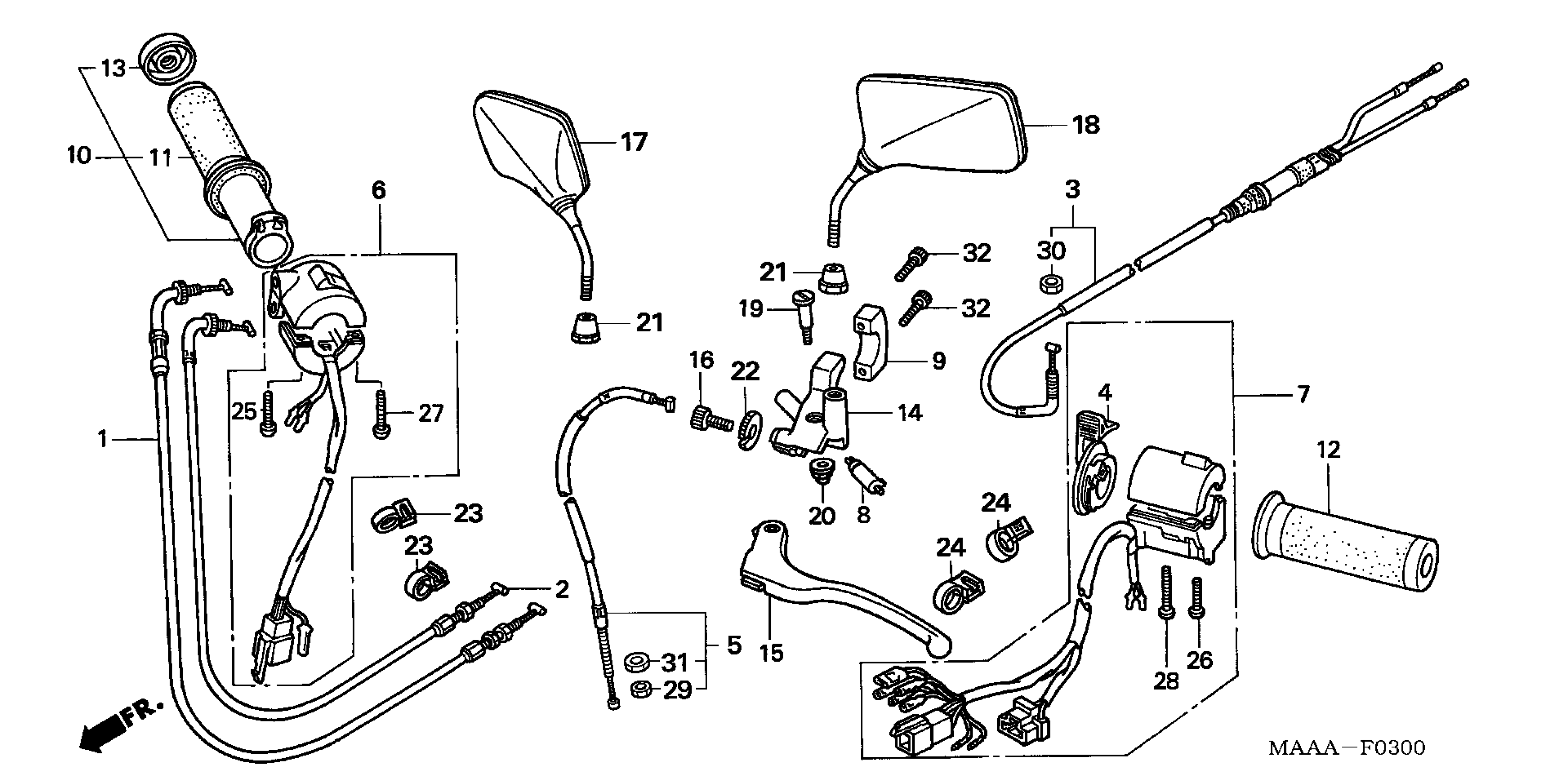

Honda VT1100CA (07) SHADOW SPIRIT, USA, VIN# 1HFSC180-7A100001 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MAH-000

$90.33

2

CABLE B, THROTTLE

17920-MAH-000

$32.78

3

CABLE, CHOKE

17950-MAH-000

$57.02

4

LEVER, CHOKE

17962-MZ0-671

$20.24

5

CABLE, CLUTCH

22870-MAH-000

$29.11

6

SWITCH ASSY., STARTER & STOP This part replaces 35013-MAH-A11.

35013-MAH-A02

$126.33

7

SWITCH SET, TURN SIGNAL

35020-MAH-A00

$110.04

7

SWITCH SET, TURN SIGNAL This part replaces 35020-MAH-A10.

35020-MAH-A00

$110.04

8

SWITCH, FR. LEVER

35330-413-003

$20.11

9

HOLDER, MASTER CYLINDER (NISSIN)

45517-MR1-671

$25.01

10

GRIP, R.

53145-MM8-000

$39.08

11

GRIP, R.

53145-MM8-000

$39.08

11

GRIP, R. This part replaces 53165-MM8-000.

53145-MM8-000

$39.08

12

GRIP, L. HANDLE

53166-KCR-000

$32.91

13

CAP, GRIP END

53167-MM8-000

$8.63

14

BRACKET, HANDLE LEVER

53172-MR1-000

$32.76

15

LEVER, L. HANDLE

53178-MAH-000

$17.39

16

BOLT, WIRE ADJUSTING

53192-268-000

$6.23

17

MIRROR, R.

88210-GCK-000

Unavailable

18

MIRROR, L.

88220-GCK-000

Unavailable

19

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.24

20

NUT, CAP (6MM)

90201-415-000

$1.99

21

NUT, LOCK

90314-323-000

$4.24

22

NUT, FIXING

90321-MA6-750

$9.59

23

CLIP, CABLE (12MM)

90690-GHB-691

$2.69

24

CLIP, CABLE (17MM)

90690-GHB-701

$2.80

25

SCREW, PAN (5X20)

93500-05020-0A

$0.76

26

SCREW, PAN (5X22)

93500-05022-0A

$0.62

27

SCREW, PAN (5X25)

93500-05025-0A

$1.19

28

SCREW, PAN (5X32)

93500-05032-0A

$1.01

29

NUT, HEX. (8MM)

94002-08000-0S

$1.21

30

NUT, HEX. (8MM)

94002-08070-0S

$1.21

31

NUT, HEX. (8MM)

94031-08000

$0.99

32

BOLT, SOCKET (6X22)

96600-06022-10

$1.94

32

BOLT, SOCKET (6X22) This part replaces 96700-06022-10.

96600-06022-10

$1.94
