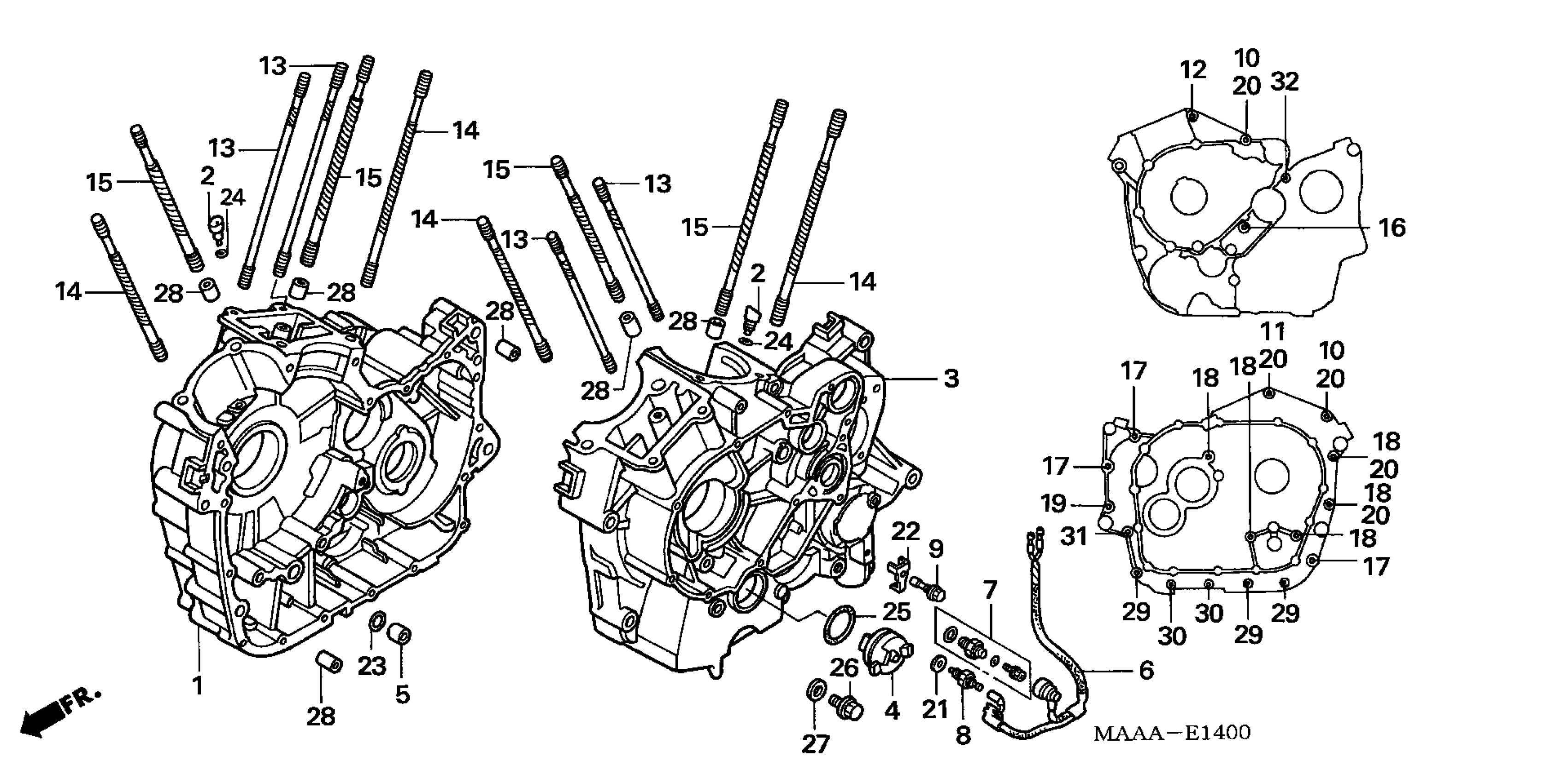

Honda VT1100CA (07) SHADOW SPIRIT, USA, VIN# 1HFSC180-7A100001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-MAA-A00

$891.88

2

JET, OIL

11140-MAA-A00

Unavailable

3

CRANKCASE, L.

11200-MAA-A30

Unavailable

4

PLUG, L. CRANKCASE

11211-MK7-770

$26.64

5

COLLAR, O-RING

15155-300-000

$3.31

6

SUB-HARNESS A

32101-MCK-A00

Unavailable

7

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$38.96

8

SWITCH ASSY., NEUTRAL (TOYO)

35600-KE8-003

$17.36

9

BOLT, ORIFICE (1.6MM)

90002-MG8-000

$16.63

10

BOLT, FLANGE (8X125)

90005-MCK-U50

$6.25

11

BOLT, FLANGE (8X136)

90006-MCK-U50

$6.25

12

BOLT, SPECIAL (6X12)

90007-MCK-U50

$2.15

13

BOLT, STUD (8X259)

90011-MAH-000

$10.74

14

BOLT, STUD (10X269)

90012-MBC-003

$14.47

15

BOLT, STUD (10X25)

90013-MBC-003

$17.41

16

BOLT, UBS (8X110)

90030-MS9-750

$9.78

17

BOLT, FLANGE (8X45)

90052-MM8-680

$4.51

18

BOLT, FLANGE (8X80)

90053-MM8-680

Unavailable

19

BOLT, FLANGE (8X100)

90054-MM8-680

Unavailable

20

WASHER, SEALING (8MM)

90441-MG8-000

$2.10

21

WASHER, NEUTRAL

90443-MJ6-000

$1.78

22

PLATE, SEALING (6MM)

90444-MG8-000

Unavailable

23

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.63

23

O-RING (14.8X2.4) (NOK)

91356-MA6-005

$1.72

24

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.80

25

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.63

26

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.40

27

WASHER, DRAIN PLUG (14MM)

94109-14000

$0.57

28

PIN, DOWEL (14X20)

94301-14200

$2.80

29

BOLT, FLANGE (6X50)

95701-06050-00

$2.59

30

BOLT, FLANGE (6X90)

95701-06090-00

$1.87

31

BOLT, FLANGE (10X105)

95701-10105-00

Unavailable

32

BOLT, FLANGE (6X100)

96001-06100-00

$1.81
