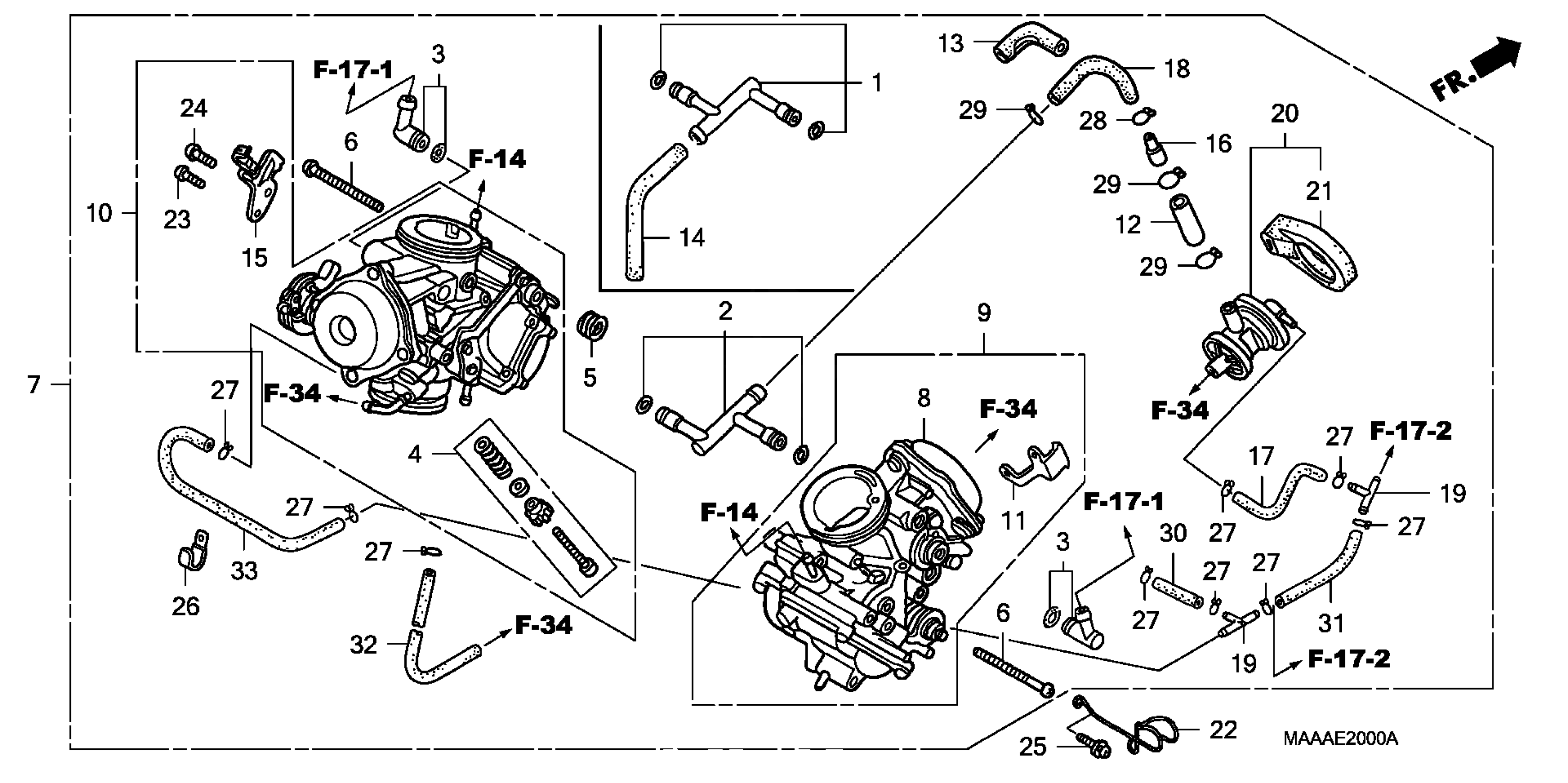

Honda VT1100CA (07) SHADOW SPIRIT, USA, VIN# 1HFSC180-7A100001 CARBURETOR (ASSY.) Diagram

#

Description
Price

1

JOINT SET

16026-MAH-670

Unavailable

3

JOINT SET

16026-MR1-004

$37.68

4

SCREW SET

16028-MAH-000

$51.69

5

SPRING

16053-ME9-672

Unavailable

5

SPRING This part replaces 16053-MG7-601.

16053-ME9-672

Unavailable

6

SCREW, PAN

16082-ME9-671

Unavailable

7

CARBURETOR ASSY. (VDKJB A)

16100-MAA-B21

Unavailable

8

CARBURETOR ASSY., R. FR.

16101-MAA-B21

Unavailable

10

CARBURETOR ASSY., L. RR.

16102-MAA-B21

Unavailable

14

TUBE

16144-MM8-004

Unavailable

15

STAY, WIRE

16169-MM9-621

Unavailable

19

JOINT A, VACUUM TUBE

17201-MG9-000

$14.63

22

CLAMP, IGNITION WIRE

30701-MCK-A50

$4.66

23

SCREW-WASHER (4X8)

93892-04008-00

$0.54

23

SCREW-WASHER (4X8) This part replaces 93892-04008-10.

93892-04008-00

$0.54

24

SCREW-WASHER (5X12)

93892-05012-00

$1.00

24

SCREW-WASHER (5X12) This part replaces 93892-05012-10.

93892-05012-00

$1.00

25

SCREW-WASHER (5X10)

93893-05010-08

$1.24

26

CLIP (4X40)

94591-44000

$2.13

27

CLIP, TUBE (B7)

95002-02079

$1.10

30

BULK HOSE, VACUUM (3.5X8000) (3.5X45)

95005-35008-10M

$117.77

33

BULK HOSE, VACUUM (3.5X8000) (3.5X360)

95005-35008-10M

$117.77
