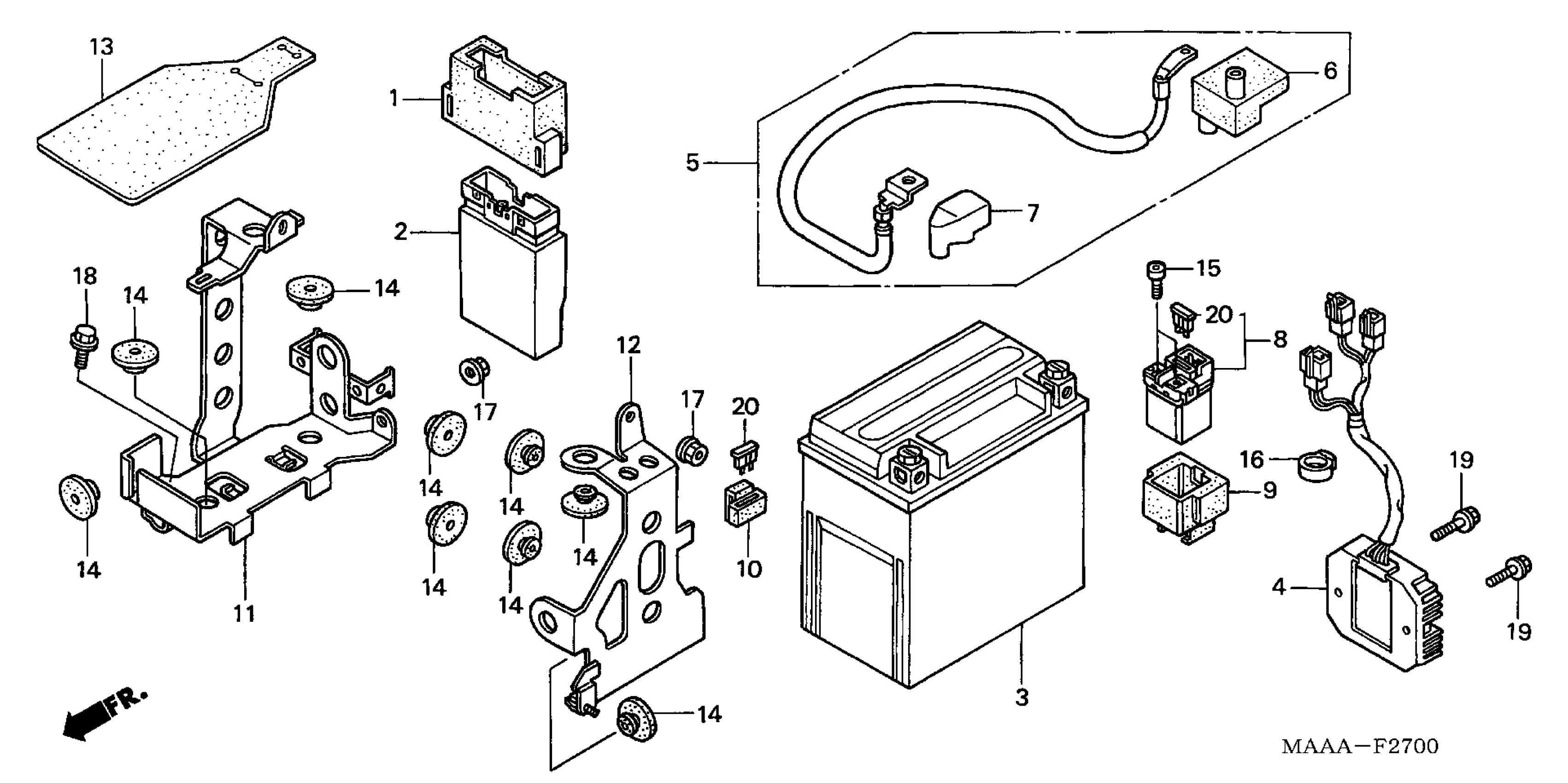

Honda VT1100CA (07) SHADOW SPIRIT, USA, VIN# 1HFSC180-7A100001 BATTERY Diagram

CUSHION, SPARK UNIT

30405-MBT-610

Unavailable

MODULE, IGNITION CONTROL (CDI)

30410-MCK-A01

Unavailable

BATTERY (YTX14-BS) (YUASA) (MSDS) This part replaces 31500-HC4-726.

31500-HC4-726AH

Unavailable

BATTERY (YTX14-BS) (YUASA) (MSDS) This part replaces 31500-HM5-631.

31500-HC4-726AH

Unavailable

RECTIFIER ASSY., REGULATOR

31600-MCK-A51

$67.32

CABLE, STARTER BATTERY

32401-MCK-A00

$30.28

COVER, STARTER MAGNETIC TERMINAL

32406-MZ5-000

$5.59

COVER, BATTERY TERMINAL

32412-MY9-790

$4.54

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-MT4-000.

35850-MT4-003

$78.00

RUBBER, SHOCK

35856-KBG-007

$10.43

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.74

BOX, BATTERY

50325-MCK-A01

$75.13

BAND, BATTERY

50327-MAA-A30

Unavailable

RUBBER, BATTERY COVER

50332-MCK-A00

Unavailable

RUBBER, BATTERY BOX

83618-323-000

$2.47

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

CLIP, WIRE HARNESS

90683-KJ2-003

$3.56

NUT, FLANGE (6MM)

94050-06080

$1.49

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

BOLT, FLANGE (6X28)

95701-06028-08

$2.08

FUSE, BLADE (30A)

98200-33000

$1.49
