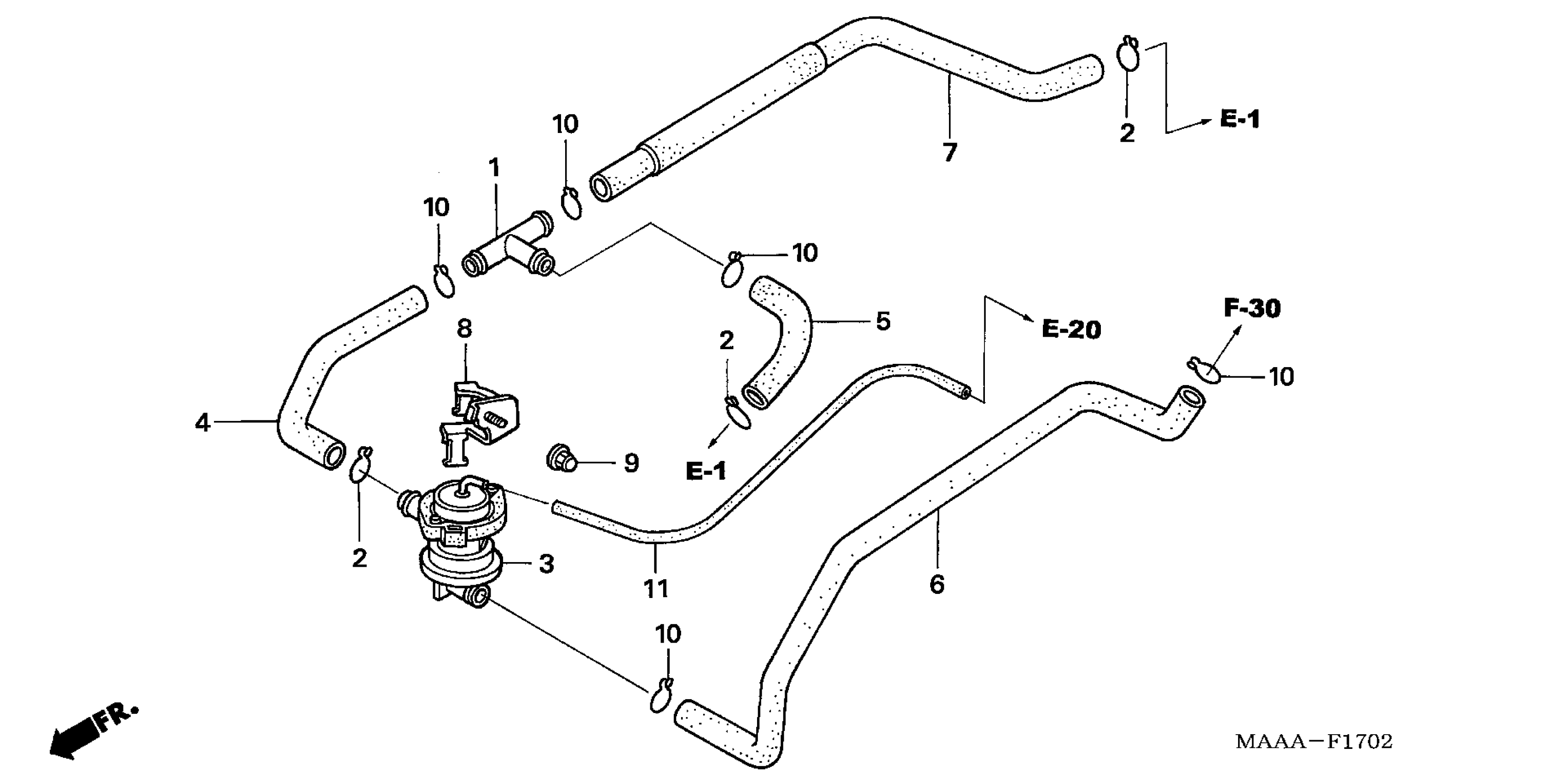

Honda VT1100CA (07) SHADOW SPIRIT, USA, VIN# 1HFSC180-7A100001 AIR INJECTION CONTROL VALVE Diagram

JOINT, BREATHER (THREE-WAY)

15772-HA7-670

$16.49

CLIP, BREATHER TUBE

17369-KB4-670

$5.24

VALVE ASSY., AIR INJECTION CONTROL

18650-MCK-L51

$74.82

TUBE A, AIR IN.

18651-MCK-L50

Unavailable

TUBE B, AIR IN.

18652-MCK-G00

$5.62

TUBE C, AIR IN.

18653-MCK-L50

$15.16

TUBE D, AIR IN.

18654-MCK-L50

Unavailable

STAY, AIR INJECTION CONTROL VALVE

18660-MCK-L50

$8.91

NUT, CAP (6MM)

90201-428-900

$2.06

CLIP, TUBE (B20)

90653-MK3-780

$1.85

BULK HOSE, VACUUM (3.5X1000) (3.5X260)

95005-35001-20M

$11.17
