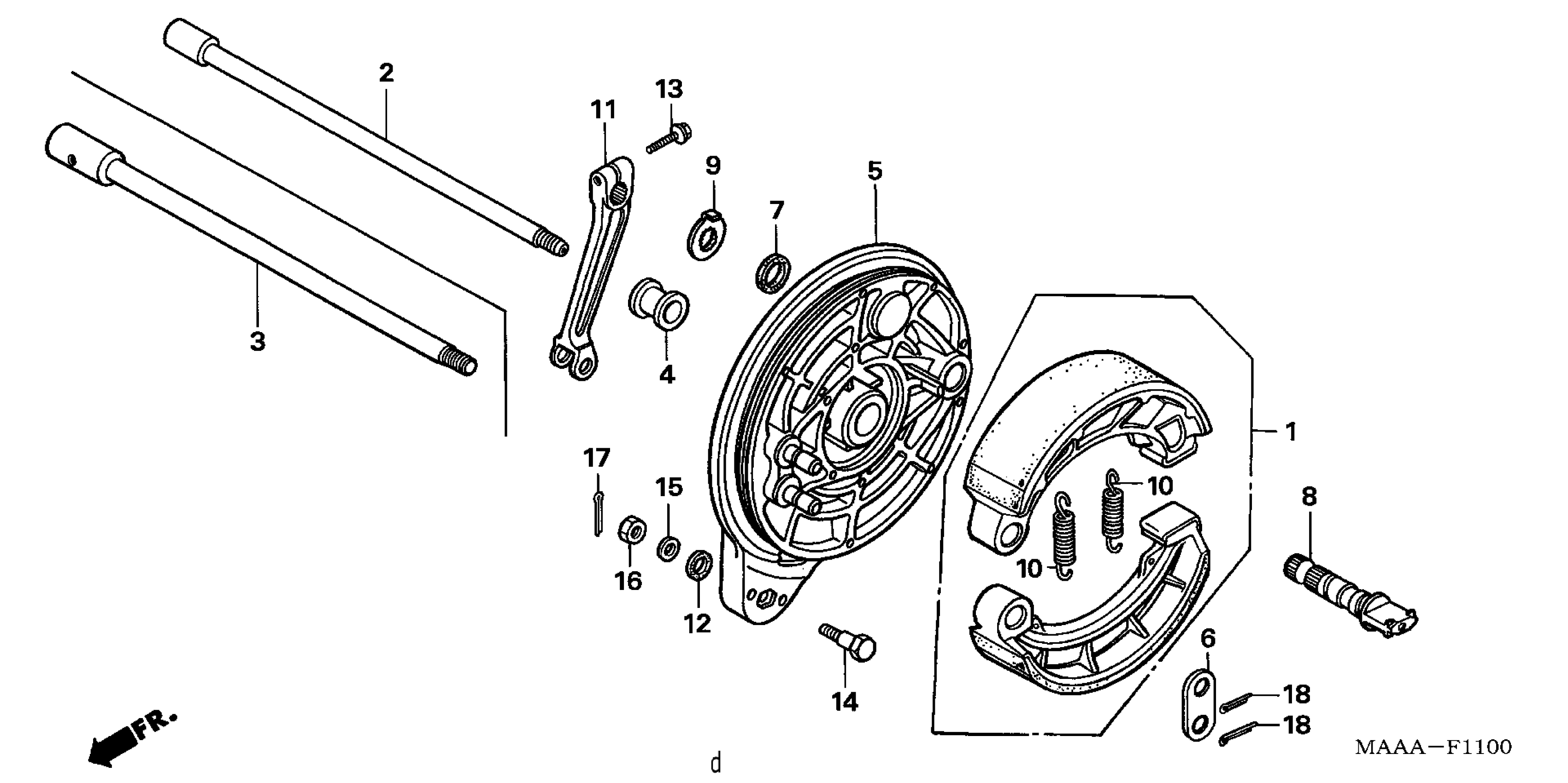

Honda VT1100CA (06) SHADOW SPIRIT, USA, VIN# 1HFSC180-6A000001 TO 1HFSC180-6A099999 REAR BRAKE PANEL Diagram

SHOE KIT, BRAKE

06430-MM8-881

$55.16

AXLE, RR. WHEEL

42301-MCK-A00

$23.41

AXLE, RR. WHEEL | (Optional).

42301-MM8-000

Unavailable

COLLAR, RR. WHEEL SIDE

42313-MJ1-830

Unavailable

PANEL, RR. BRAKE

43100-MM8-880

Unavailable

WASHER, ANCHOR PIN

43102-319-000

$6.21

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

CAM, RR. BRAKE

43141-MB0-010

$41.60

INDICATOR, RR. BRAKE

43145-ME5-000

$5.84

SPRING, RR. BRAKE SHOE

43151-346-000

$5.90

ARM, RR. BRAKE

43410-MJ1-000

$57.50

RUBBER, STOPPER ARM

43434-ME1-670

$3.47

BOLT, FLANGE (8X25) This part replaces 90107-KT8-000.

90107-MZ5-000

$4.65

BOLT, RR. BRAKE STOPPER

90127-393-000

$4.85

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.49

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

NUT, HEX. (8MM)

94001-08000-0S

$1.49

PIN, SPLIT (2.0X15)

94201-20150

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, SPLIT (2.5X30)

94201-25300

$1.49
