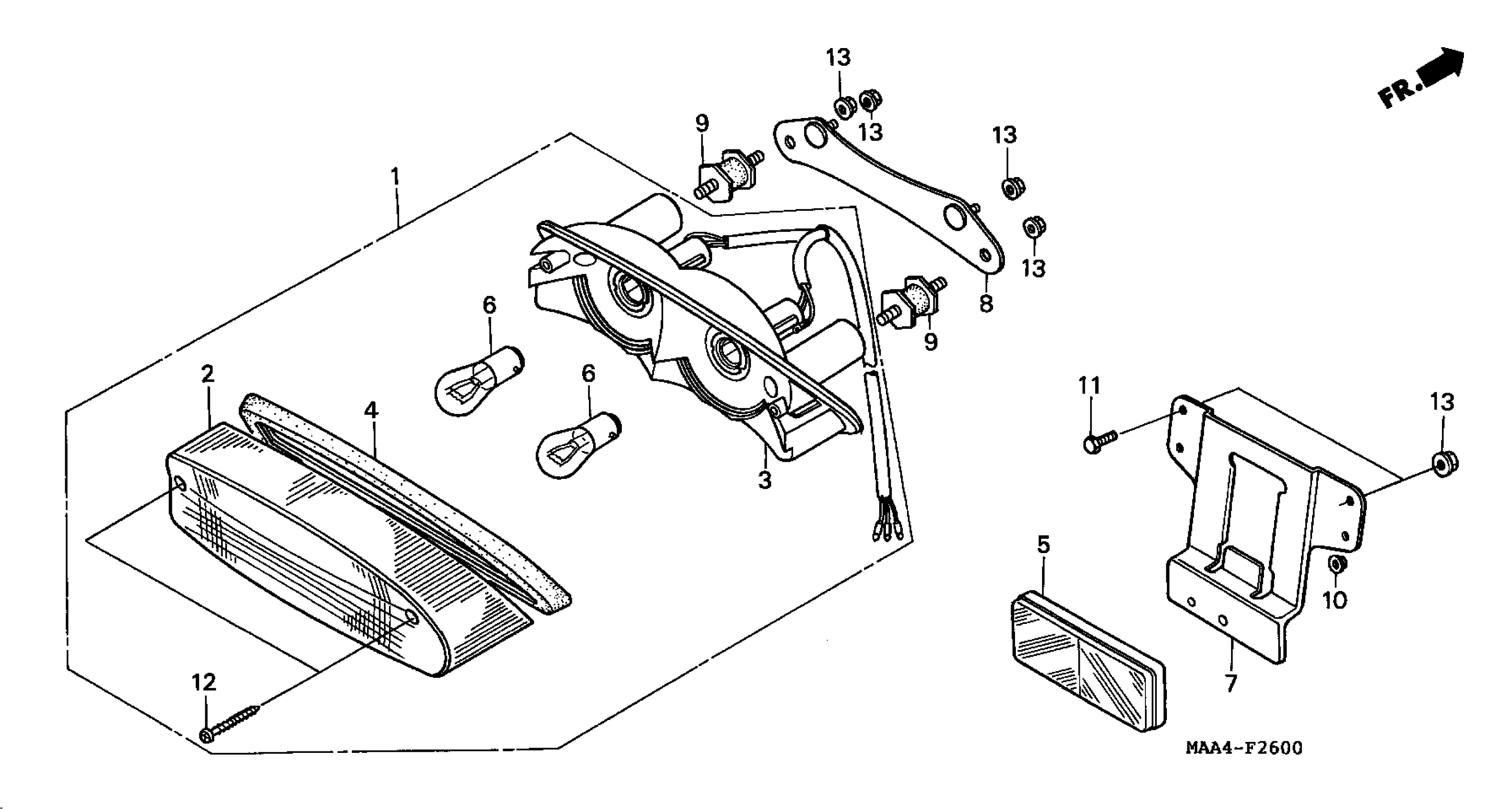

Honda VT1100CA (05) SHADOW SPIRIT, USA, VIN# 1HFSC180-5A900001 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT

33701-MAA-A30

Unavailable

2

LENS, TAILLIGHT

33702-MM8-671

$50.18

3

BASE, TAILLIGHT

33704-MAA-A30

Unavailable

4

GASKET, TAILLIGHT

33709-MM8-671

Unavailable

5

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$14.85

6

BULB, TAILLIGHT (12V 32/3CP) (STANLEY)

34906-425-771

$4.20

7

STAY, RR. REFLECTOR

80102-MM8-010

Unavailable

8

STAY, TAILLIGHT

80103-MM8-000

Unavailable

9

RUBBER, OIL COOLER MOUNTING

85201-438-000

$12.61

10

NUT, FLANGE (5MM)

90301-MG8-000

$4.31

11

BOLT, HEX. (6X10)

92101-06010-0G

Unavailable

12

SCREW, TAPPING (4X30)

93901-34780

$0.47

13

NUT, FLANGE (6MM)

94050-06080

$0.60
