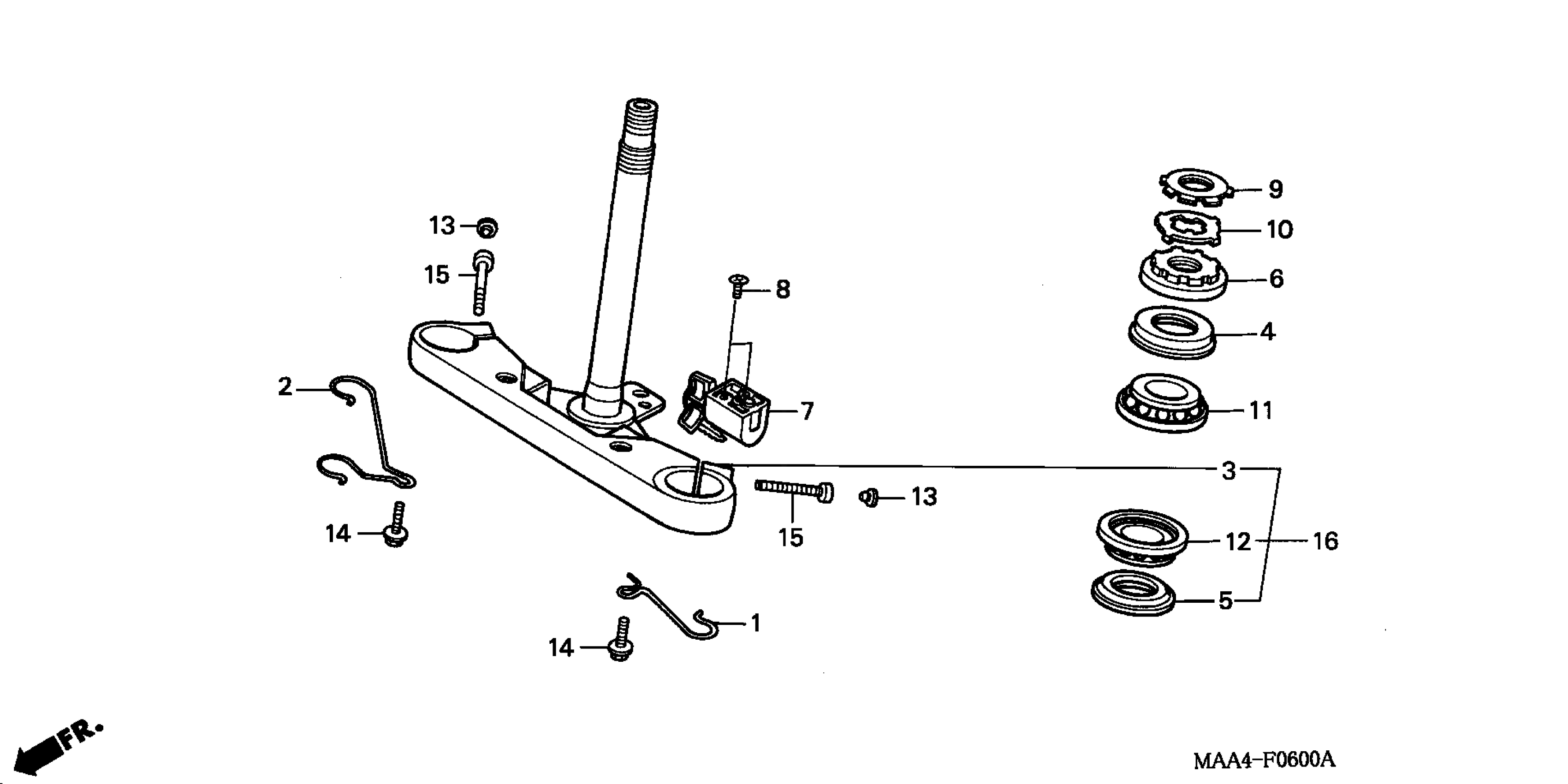

Honda VT1100CA (05) SHADOW SPIRIT, USA, VIN# 1HFSC180-5A900001 STEERING STEM Diagram

#

Description

Price

1

CLAMP, SPEEDOMETER CABLE

44832-MM8-000

Unavailable

2

CLAMP, FR. BRAKE HOSE

45131-MAA-A00

$11.93

4

DUST SEAL, STEERING HEAD (ARAI)

53213-MB4-771

$12.13

5

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

6

THREAD, STEERING HEAD TOP

53220-422-000

$32.73

7

LOCK, HANDLEBAR (HONDALOCK)

53600-GCN-003

$26.66

8

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

9

THREAD B, STEERING HEAD TOP

90302-425-830

$21.73

10

WASHER, LOCK

90506-425-830

$7.05

11

BEARING, HEAD PIPE (UPPER) (KOYO)

91015-KT8-005

$36.57

12

BEARING, HEAD PIPE (LOWER) (KOYO)

91016-KT8-005

$36.57

13

CAP, SOCKET BOLT (8MM)

91455-MA6-750

$3.71

14

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

15

BOLT, SOCKET (10X28)

96700-10028-10

$2.11

16

STEM SUB-ASSY., STEERING

53219-MAA-B00

Unavailable
