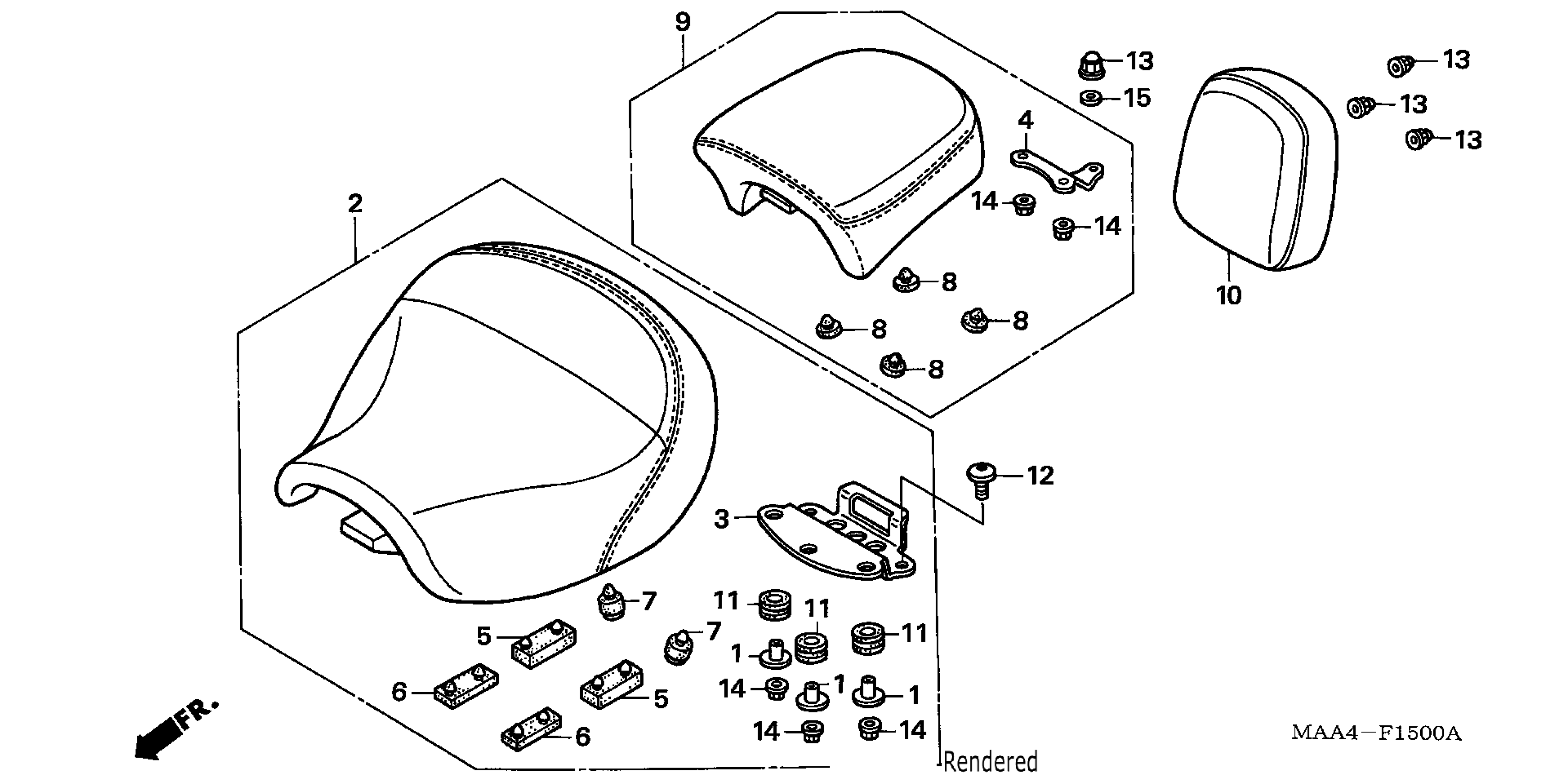

Honda VT1100CA (05) SHADOW SPIRIT, USA, VIN# 1HFSC180-5A900001 SEAT Diagram

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

Unavailable

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

SEAT ASSY., MAIN

77200-MAA-A80

$338.82

STAY, FR. SEAT

77202-MAA-A00

$19.68

STAY, RR. SEAT

77203-MM8-000

Unavailable

RUBBER A, SEAT SETTING This part replaces 77205-MG2-000.

77205-GB5-670

$7.72

RUBBER B, SEAT SETTING

77205-286-000

$5.04

RUBBER, SEAT MOUNTING

77211-GK4-000

$7.10

RUBBER B, SEAT STOPPER

77215-GC2-000

$4.83

SEAT ASSY., RR. This part replaces 77300-MAA-B00.

77300-MAA-A80

$256.69

SEAT, BACK

77400-MZ0-000

$59.87

RUBBER, RR. FENDER MOUNTING

80106-382-770

$4.08

SCREW, PAN (6X14)

90118-MR1-000

$2.95

NUT, CAP (6MM)

90202-ZV0-000

$2.69

NUT, FLANGE (6MM)

94050-06080

$0.60

WASHER, PLAIN (6MM)

94103-06200

$1.04
