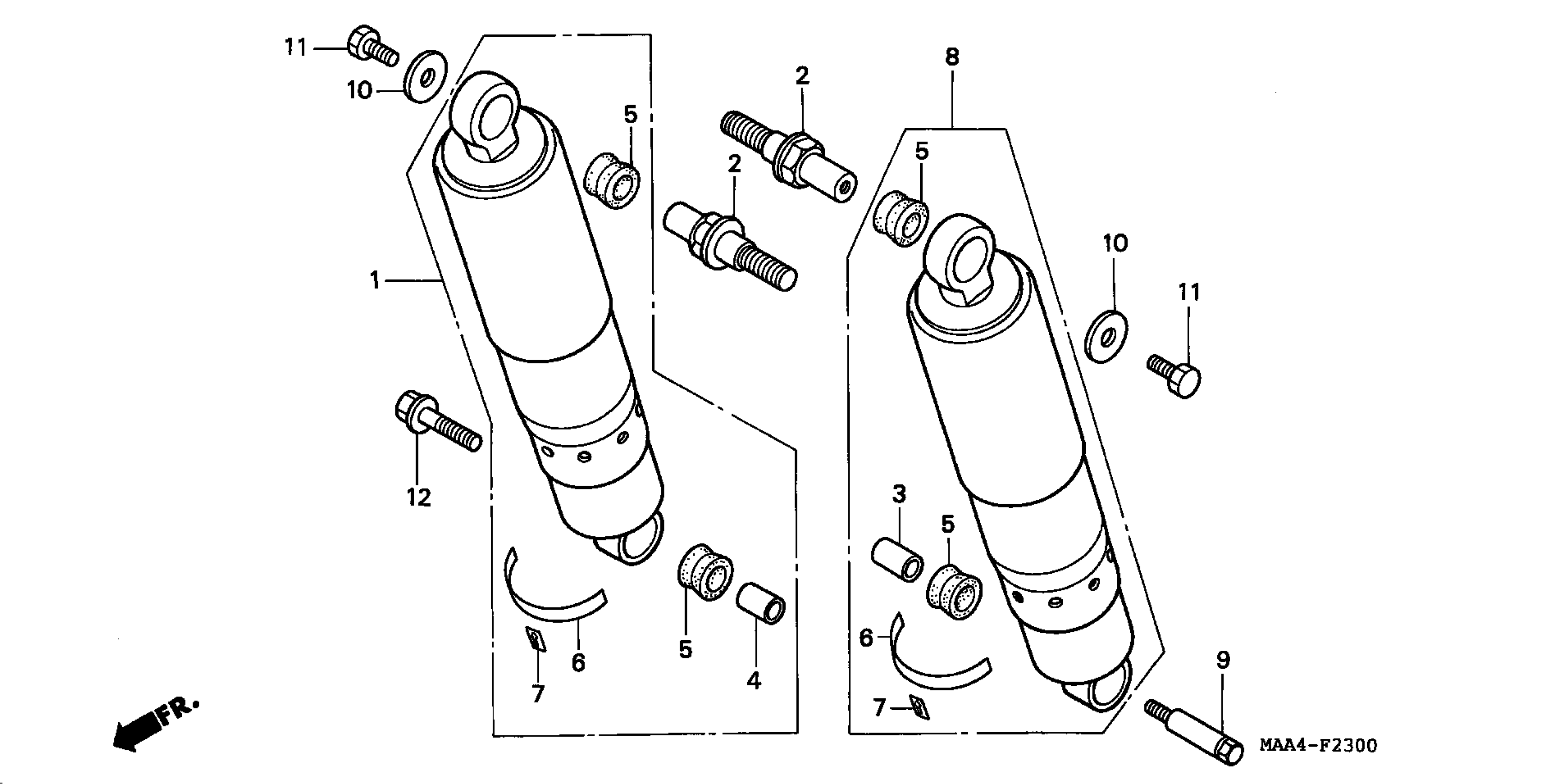

Honda VT1100CA (05) SHADOW SPIRIT, USA, VIN# 1HFSC180-5A900001 REAR SHOCK ABSORBER Diagram

SHOCK ABSORBER ASSY., R. RR. (SHOWA)

52400-MAA-A81

Unavailable

BOLT, RR. SHOCK

52452-MAH-A40

$19.83

COLLAR, RR. SHOCK ABSORBER

52486-MG9-671

$9.54

COLLAR, RR. SHOCK ABSORBER

52486-463-000

$7.23

BUSH, RR. SHOCK ABSORBER

52489-KR3-003

$4.73

LABEL A

52496-MB4-003

$6.88

LABEL B, RR. CUSHION

52497-KR3-003

Unavailable

SHOCK ABSORBER ASSY., L. RR. (SHOWA)

52500-MAA-A81

Unavailable

BOLT, RR. CUSHION

90159-MG9-000

$15.81

WASHER (8.5X26)

90504-ME4-000

$3.03

BOLT, HEX. (8X12)

95501-08012-02

$1.87

BOLT, FLANGE (10X35)

95801-10035-02

$2.10
