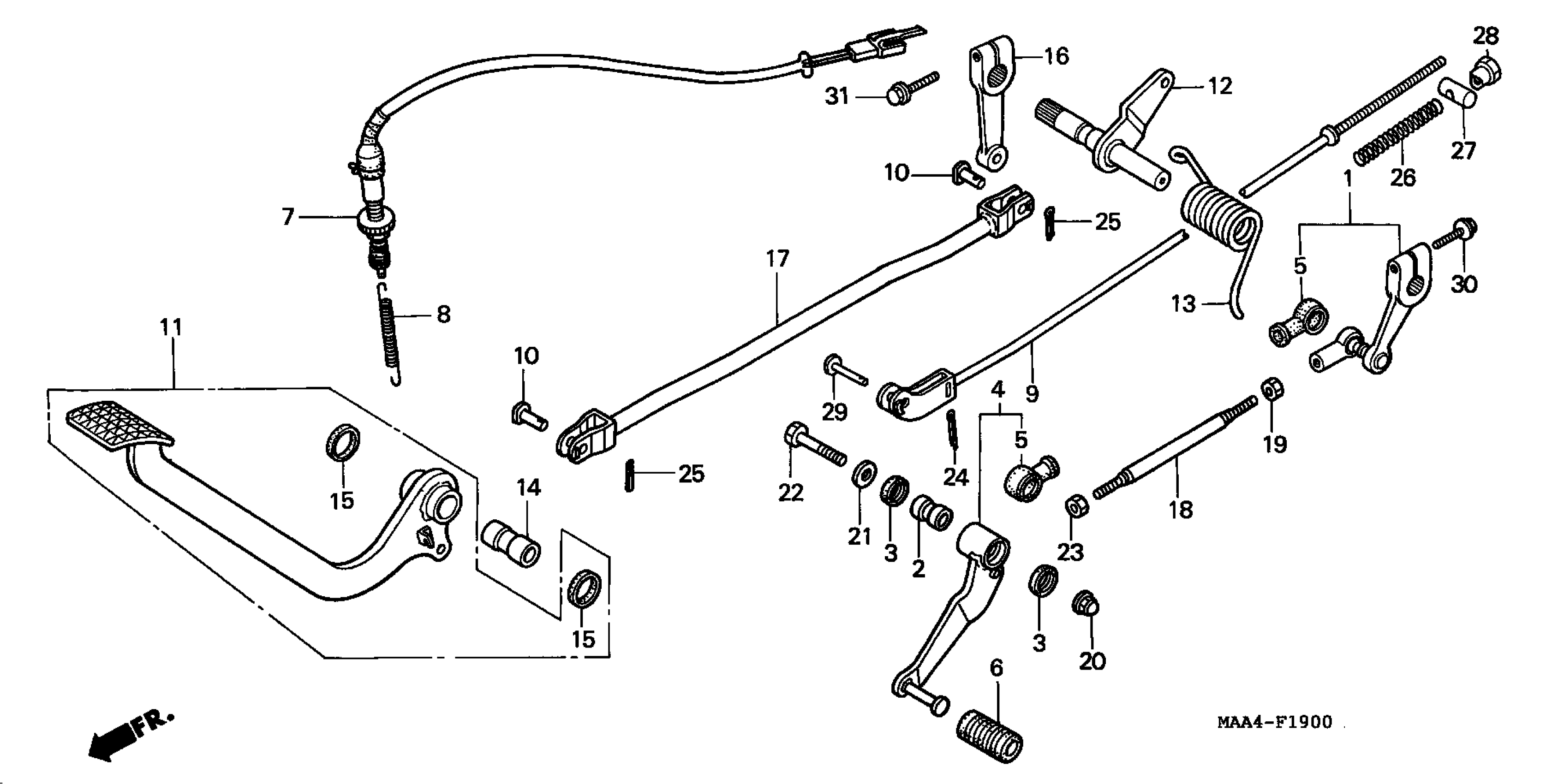

Honda VT1100CA (05) SHADOW SPIRIT, USA, VIN# 1HFSC180-5A900001 PEDAL Diagram

#

Description
Price

1

ARM, GEARSHIFT

24702-MM8-000

$58.68

2

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MK3-000

$9.59

3

RUBBER, DUST SEAL

24706-MK3-770

$4.16

4

PEDAL, GEARSHIFT

24710-MAA-A00

$72.80

5

COVER, DUST

24724-422-000

$6.21

6

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.15

7

SWITCH ASSY., RR. STOP

35350-MAA-A01

$23.42

7

SWITCH ASSY., RR. STOP This part replaces 35350-MAA-A10.

35350-MAA-A01

$23.42

8

SPRING, STOP SWITCH

35357-ME9-000

$4.42

9

ROD, RR. BRAKE

43451-MM8-000

$19.25

10

PIN, MIDDLE ROD JOINT

43456-MK7-000

Unavailable

11

PEDAL ASSY., RR. BRAKE

46500-MAA-A00

$105.64

12

ARM, RR. BRAKE MIDDLE

46510-MM8-000

Unavailable

13

SPRING, BRAKE RETURN

46514-MM8-000

Unavailable

14

COLLAR, RR. BRAKE PIVOT

46515-MM8-000

$10.53

15

DUST SEAL (17X20X2.5)

46525-KK0-003

$4.70

16

ARM, RR. BRAKE PEDAL PIVOT

46530-MM8-000

Unavailable

17

ROD, RR. BRAKE MIDDLE

46540-MAA-A00

Unavailable

18

BOLT, TIE ROD

90065-KAF-000

Unavailable

19

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$0.70

20

NUT, CAP (8MM)

90208-438-000

$2.80

21

WASHER (8MM)

90514-921-000

$0.99

22

BOLT, HEX. (8X45)

92201-08045-0A

$1.83

23

NUT, HEX. (6MM)

94002-06000-0S

$1.19

24

PIN, SPLIT (1.6X12)

94201-16120

$0.94

25

PIN, SPLIT (2.0X15)

94201-20150

$0.94

26

SPRING A, BRAKE ROD

95014-73100

$1.17

27

JOINT B, BRAKE ARM

95015-32001

$0.86

28

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.75

29

PIN B, BRAKE ROD JOINT

95015-52000

$1.94

30

BOLT, FLANGE (6X20)

95701-06020-02

$1.06

31

BOLT, FLANGE (8X25)

95701-08025-02

$2.07
