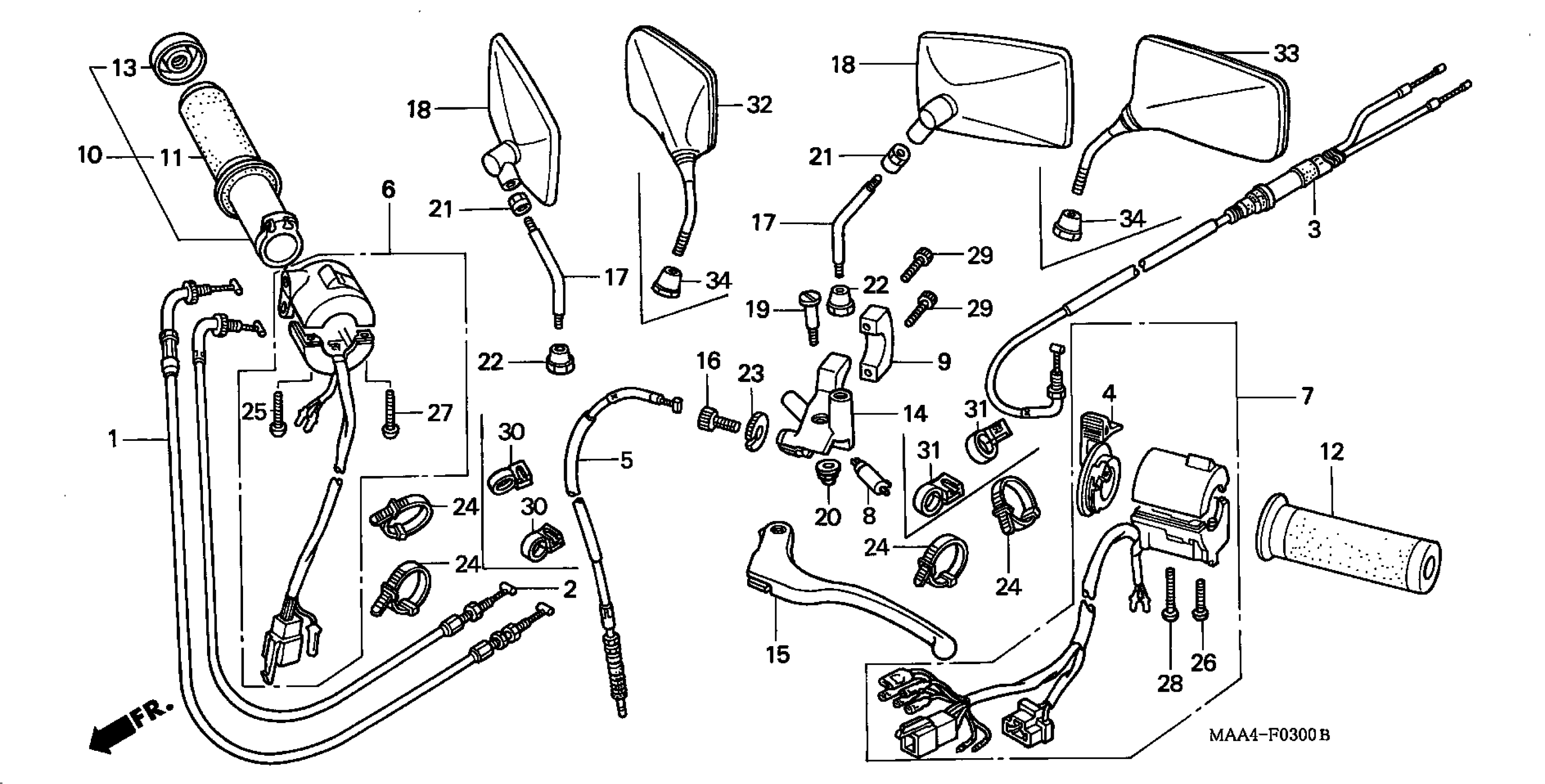

Honda VT1100CA (05) SHADOW SPIRIT, USA, VIN# 1HFSC180-5A900001 HANDLE SWITCH Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MAH-000

$101.34

2

CABLE B, THROTTLE

17920-MAH-000

$36.78

3

CABLE, CHOKE

17950-MAH-000

$62.12

4

LEVER, CHOKE

17962-MZ0-671

$22.04

5

CABLE, CLUTCH

22870-MAH-000

$32.66

6

SWITCH ASSY., STARTER & STOP This part replaces 35013-MAH-A01.

35013-MAH-A02

$137.60

6

SWITCH ASSY., STARTER & STOP This part replaces 35013-MAH-A11.

35013-MAH-A02

$137.60

7

SWITCH SET, TURN SIGNAL

35020-MAH-A00

$119.84

7

SWITCH SET, TURN SIGNAL This part replaces 35020-MAH-A10.

35020-MAH-A00

$119.84

8

SWITCH, FR. LEVER

35330-413-003

$21.91

9

HOLDER, MASTER CYLINDER (NISSIN)

45517-MR1-671

$27.25

10

GRIP, R.

53145-MM8-000

$43.84

11

GRIP, R.

53145-MM8-000

$43.84

11

GRIP, R. This part replaces 53165-MM8-000.

53145-MM8-000

$43.84

12

GRIP, L. HANDLE

53166-KCR-000

$36.92

13

CAP, GRIP END

53167-MM8-000

$9.37

14

BRACKET, HANDLE LEVER

53172-MR1-000

$35.68

15

LEVER, L. HANDLE

53178-MAH-000

$19.50

16

BOLT, WIRE ADJUSTING

53192-268-000

$6.72

19

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

20

NUT, CAP (6MM)

90201-415-000

$2.05

23

NUT, FIXING

90321-MA6-750

$10.45

25

SCREW, PAN (5X20)

93500-05020-0A

$1.49

26

SCREW, PAN (5X22)

93500-05022-0A

$1.49

27

SCREW, PAN (5X25)

93500-05025-0A

$1.49

28

SCREW, PAN (5X32)

93500-05032-0A

$1.49

29

BOLT, SOCKET (6X22)

96600-06022-10

$2.10

29

BOLT, SOCKET (6X22) This part replaces 96700-06022-10.

96600-06022-10

$2.10

30

CLIP, CABLE (12MM)

90690-GHB-691

$2.92

31

CLIP, CABLE (17MM)

90690-GHB-701

$2.92

32

MIRROR, R.

88210-GCK-000

Unavailable

33

MIRROR, L.

88220-GCK-000

$83.01

34

NUT, LOCK

90314-323-000

$4.45
