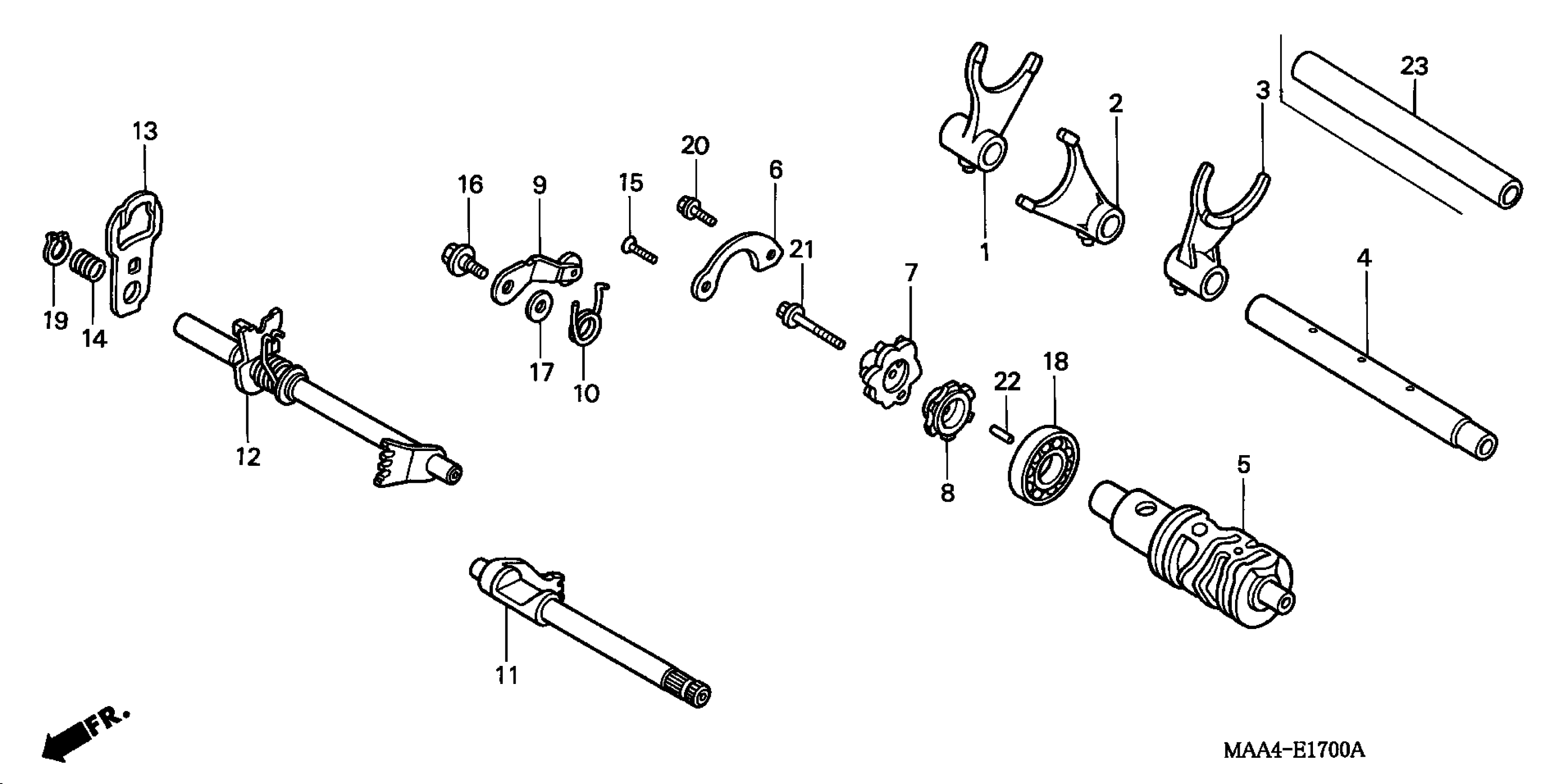

Honda VT1100CA (05) SHADOW SPIRIT, USA, VIN# 1HFSC180-5A900001 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-MCK-A00

$73.87

2

FORK C, GEARSHIFT

24212-MCK-A00

Unavailable

3

FORK, L. GEARSHIFT

24213-MCK-A00

Unavailable

5

DRUM, GEARSHIFT

24302-MG8-000

Unavailable

6

PLATE, SHIFT DRUM BEARING SETTING

24310-MK7-670

$10.13

7

CAM, GEARSHIFT

24411-MAH-000

Unavailable

8

ROTOR, POSITIVE STOPPER

24413-KA6-003

Unavailable

9

STOPPER, GEARSHIFT DRUM

24430-MAH-000

Unavailable

10

SPRING, SHIFT DRUM STOPPER

24435-MM8-000

Unavailable

11

SPINDLE A, GEARSHIFT

24610-MAA-A00

Unavailable

12

SPINDLE, GEARSHIFT (B)

24615-MAH-000

Unavailable

13

PLATE, GEARSHIFT

24621-MG8-000

Unavailable

14

SPRING, GEARSHIFT PLATE

24631-MAH-300

$3.90

15

SCREW, FLAT (6X16)

90022-ME9-000

$2.30

16

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.48

17

WASHER, SHIFT DRUM STOPPER

90487-MB0-000

$3.41

18

BEARING, RADIAL BALL (17X32X7)

91006-MCK-A01

Unavailable

19

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

20

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

21

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

22

ROLLER (3X10)

96222-30100

$1.49

23

SHAFT, GEARSHIFT FORK

24241-MCK-A00

Unavailable
