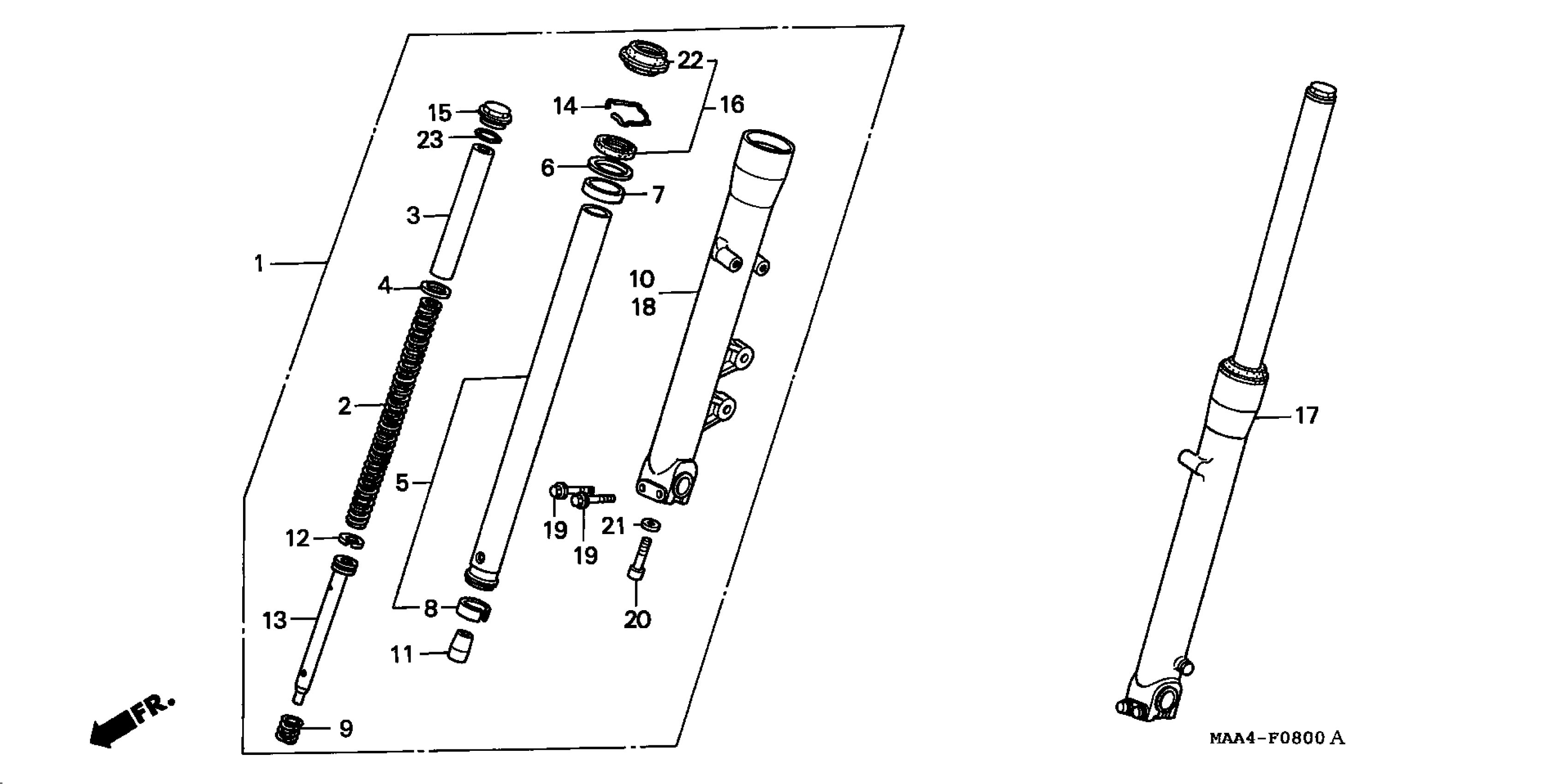

Honda VT1100CA (05) SHADOW SPIRIT, USA, VIN# 1HFSC180-5A900001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR.

51400-MAA-A01

Unavailable

2

SPRING, FR. FORK (SHOWA)

51401-MM8-881

Unavailable

3

COLLAR, SPRING (SHOWA)

51402-MM8-881

Unavailable

4

PLATE, SPRING JOINT

51404-MB4-003

$4.94

5

PIPE, FR. FORK

51410-MAA-A01

Unavailable

6

RING, BACK-UP

51412-MB4-003

$9.65

7

BUSH, GUIDE (SHOWA)

51414-KCR-003

$14.02

8

BUSH, SLIDER (SHOWA)

51415-KCR-003

$12.27

9

SPRING, FR. REBOUND (SHOWA)

51416-MM8-881

$5.89

10

CASE, R. (LOWER)

51420-MAA-A01

Unavailable

11

PIECE, OIL LOCK

51432-MV9-003

$24.82

12

RING, PISTON (SHOWA)

51437-MN5-003

$8.53

13

PIPE, SEAT

51440-MAA-003

$54.57

14

RING, OIL SEAL STOPPER

51447-KA4-711

$4.53

15

BOLT, FR. FORK

51455-MG9-771

$45.36

16

SEAL SET, FR. FORK

51490-MN8-305

$35.20

17

FORK ASSY., L. FR.

51500-MAA-A01

Unavailable

18

CASE, L. (LOWER)

51520-MAA-A01

Unavailable

19

BOLT, FLANGE (8X45)

90109-MR7-000

$4.94

20

BOLT, SOCKET (8X27)

90116-383-721

$5.13

21

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

22

DUST SEAL

91254-MM8-003

$17.88

23

O-RING

91356-MB4-003

$3.54
