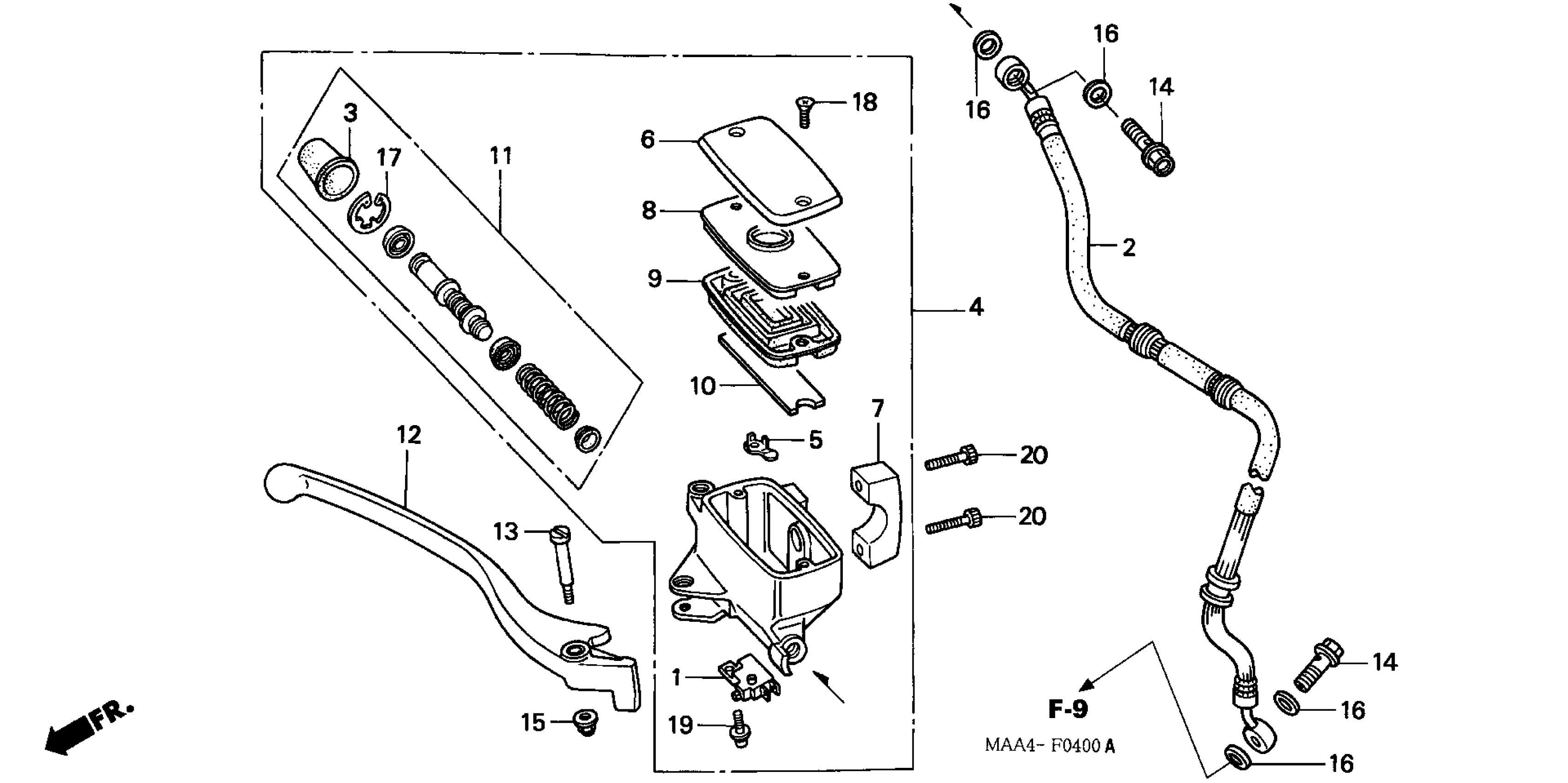

Honda VT1100CA (05) SHADOW SPIRIT, USA, VIN# 1HFSC180-5A900001 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MM5-600

$22.13

HOSE, FR. BRAKE

45126-MAA-A81

$35.46

HOSE, FR. BRAKE This part replaces 45126-MAA-A90.

45126-MAA-A81

$35.46

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) This part replaces 45510-MAH-A81.

45510-MFR-305

$265.03

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN)

45513-MR1-016

$30.62

HOLDER, MASTER CYLINDER (NISSIN)

45517-MR1-671

$27.25

PLATE, DIAPHRAGM

45518-MM5-006

$10.65

DIAPHRAGM

45520-MM5-006

$15.12

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-MN5-006

$4.49

MASTER CYLINDER SET

45530-471-831

$40.86

LEVER, R. HANDLE (COO) This part replaces 53175-ML5-006.

53175-MFR-305

$18.76

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

BOLT, OIL (10X22)

90145-MS9-612

$7.54

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-1A

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

BOLT, SOCKET (6X22)

96600-06022-10

$2.10

BOLT, SOCKET (6X22) This part replaces 96700-06022-10.

96600-06022-10

$2.10
