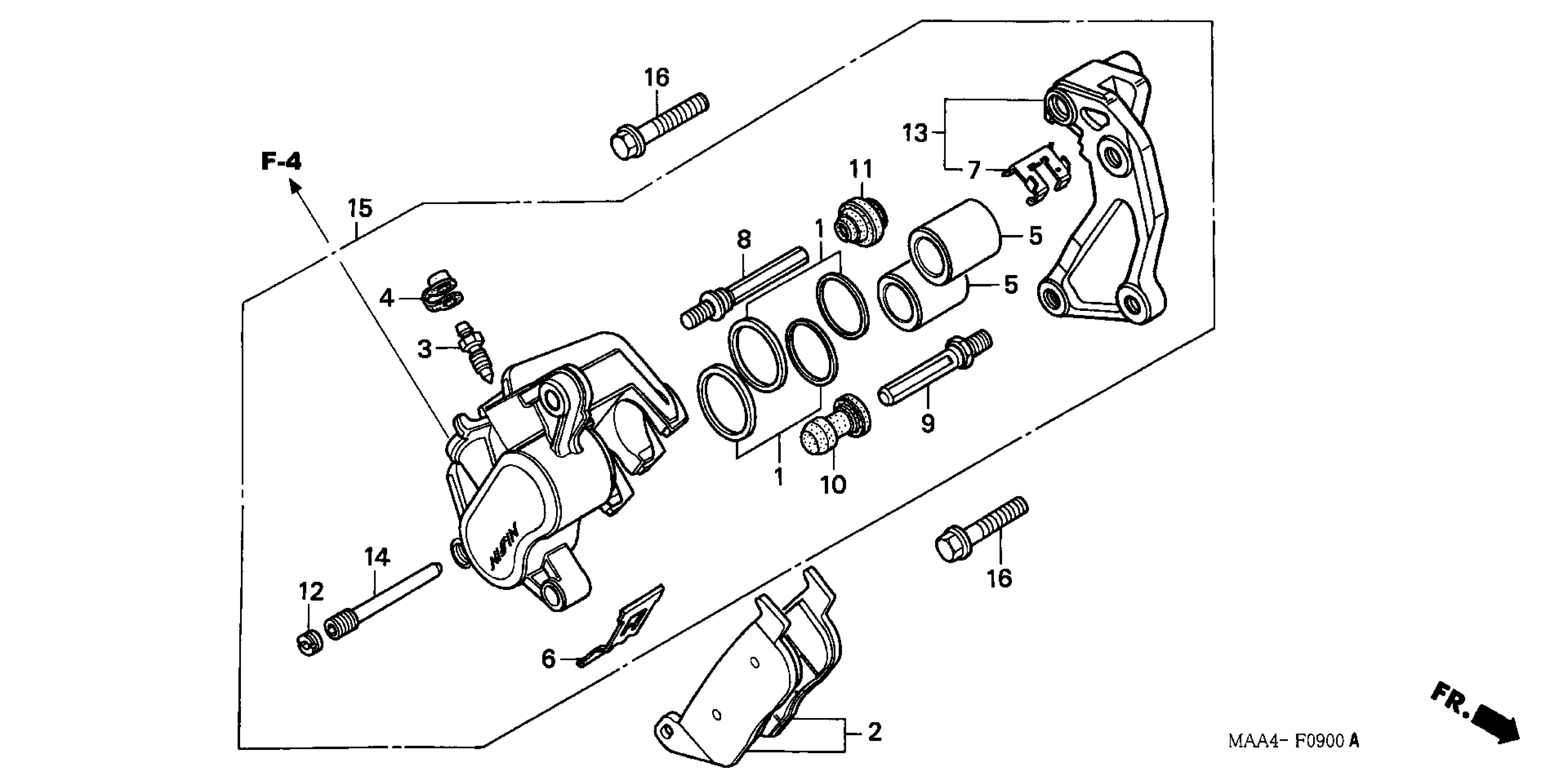

Honda VT1100CA (05) SHADOW SPIRIT, USA, VIN# 1HFSC180-5A900001 FRONT BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06431-MA3-405

$6.82

PAD SET, FR. This part replaces 06455-MAA-405.

06455-MAA-415

$52.13

PAD SET, FR.

06455-MAA-415

$52.13

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$3.93

CAP, BLEEDER

43353-461-771

$4.70

PISTON

45107-ML4-006

$34.00

SPRING, PAD (NISSIN)

45108-ML7-922

$5.75

RETAINER

45112-MAA-006

$5.50

BOLT A, PIN

45131-ML7-921

$13.86

BOLT, PIN

45131-166-016

$7.10

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.07

BOOT B

45133-MA3-006

$5.07

PLUG, PIN

45203-MG3-016

$4.76

BRACKET, R. FR.

45210-MAA-006

Unavailable

PIN, HANGER

45215-ML7-922

$9.51

CALIPER SUB-ASSY., R. FR. BRAKE (NISSIN)

45250-MAA-305

Unavailable

BOLT, SPECIAL FLANGE (10X40)

90101-MAA-000

Unavailable
