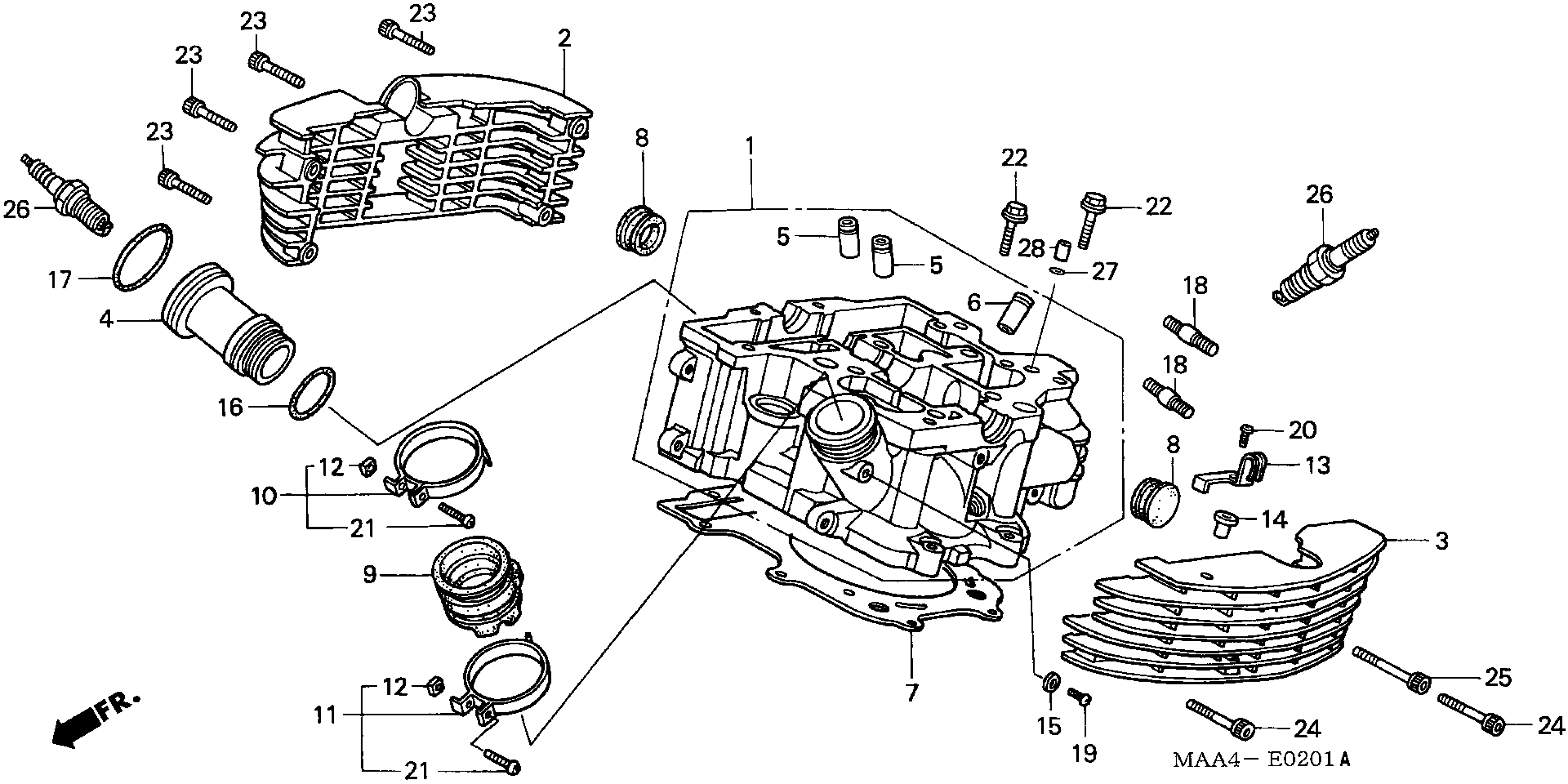

Honda VT1100CA (03) SHADOW SPIRIT, USA, VIN# 1HFSC180-3A700001 TO 1HFSC180-3A799999 CYLINDER HEAD (RR.) Diagram

#

Description
Price

1

CYLINDER HEAD, RR.

12220-MAA-A00

Unavailable

2

FIN A, RR. CYLINDER HEAD

12222-MAH-G40

$204.41

3

FIN B, RR. CYLINDER HEAD

12223-MAH-G40

$932.14

4

SLEEVE, PLUG

12225-MG8-000

$35.39

5

GUIDE, IN. VALVE (OVER SIZE)

12231-MG8-305

$19.39

6

GUIDE, IN VALVE This part replaces 12233-MG8-305.

12233-MG8-405

Unavailable

6

GUIDE, IN VALVE

12233-MG8-405

Unavailable

7

GASKET, CYLINDER HEAD

12251-MAH-003

$34.48

8

PLUG, CAMSHAFT

12312-ME9-750

$9.09

9

INSULATOR, CARBURETOR

16211-MAH-000

$21.14

10

BAND A, INSULATOR

16218-MAH-000

$9.50

11

BAND B, INSULATOR

16219-MAH-000

$6.55

12

NUT, SQUARE (5MM)

16222-MV4-300

$1.96

13

CLIP, IGNITION WIRE

32905-MAH-000

$15.33

14

NUT (5MM)

64528-KV3-000

$8.01

15

WASHER, SEALING (5MM)

90452-323-000

$1.52

16

O-RING (27.4X2.4) (ARAI)

91304-MG7-003

$5.99

17

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.44

18

BOLT, STUD (8X35)

92900-08035-0B

$2.23

18

BOLT 2, STUD (8X35) This part replaces 92900-08035-0E.

92900-08035-0B

$2.23

19

SCREW, PAN (5X8)

93500-05008-0A

$0.80

20

SCREW, PAN (5X12)

93500-05012-0G

$0.83

21

SCREW, PAN (5X25)

93500-05025-0G

$0.68

22

BOLT, FLANGE (6X35)

95701-06035-00

$1.71

23

BOLT, SOCKET (6X20)

96600-06020-00

$1.17

23

BOLT, SOCKET (6X20) This part replaces 96700-06020-00.

96600-06020-00

$1.17

24

BOLT, SOCKET (6X35)

96700-06035-00

Unavailable

25

BOLT, SOCKET (6X45)

96700-06045-00

$1.72

26

SPARK PLUG (DPR6EA-9) (NGK) | (Optional).

98069-56916

$2.00

26

SPARK PLUG (X20EPR-U9) (DENSO) | (Optional).

98069-56926

$2.25

26

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.00

26

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.25

26

SPARK PLUG (DPR8EA-9) (NGK) | (Optional).

98069-58916

$2.00

26

SPARK PLUG (X24EPR-U9) (DENSO) | (Optional).

98069-58926

$2.25
