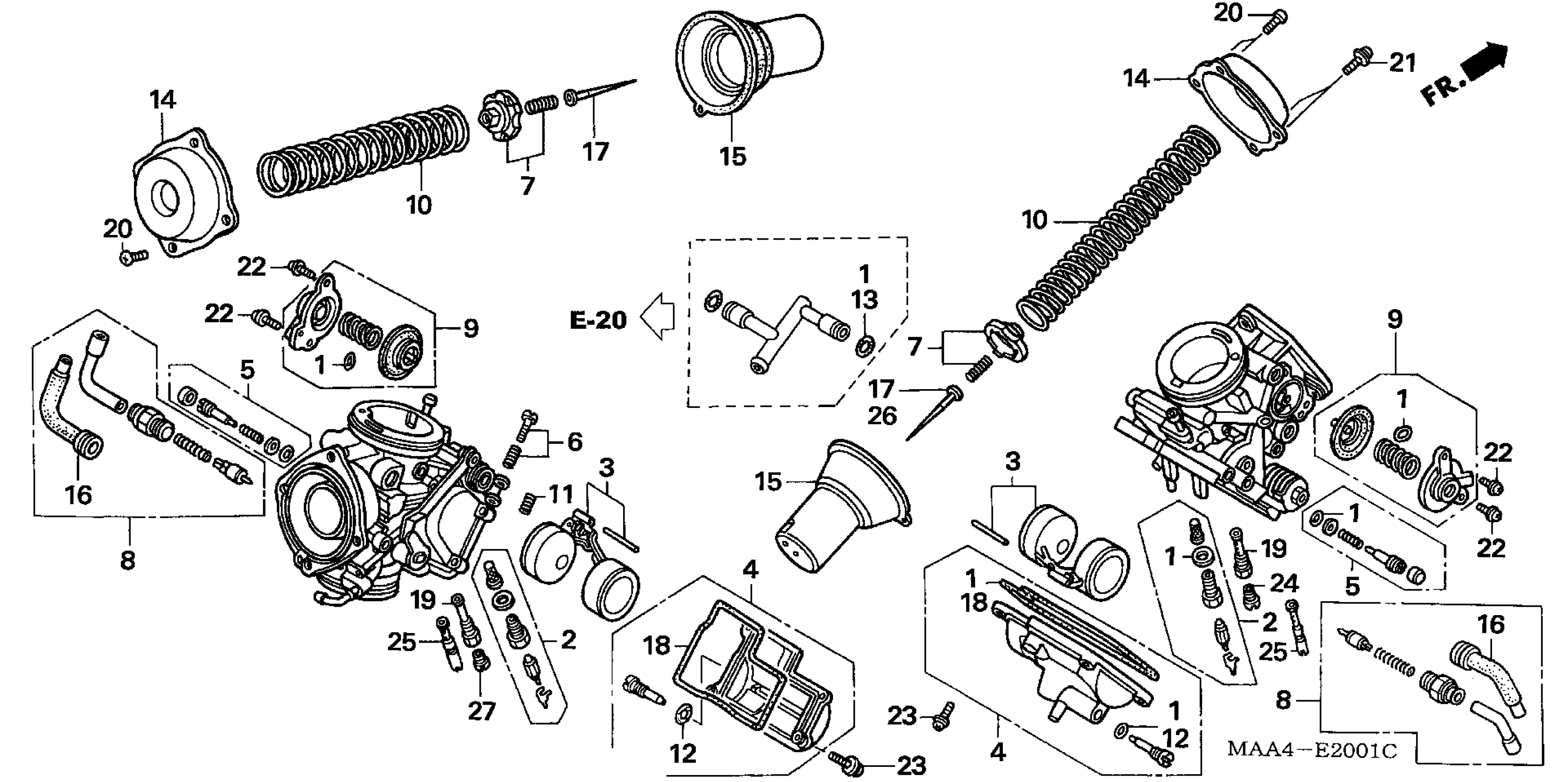

Honda VT1100CA (03) SHADOW SPIRIT, USA, VIN# 1HFSC180-3A700001 TO 1HFSC180-3A799999 CARBURETOR COMPONENTS Diagram

#

Description
Price

1

GASKET SET

16010-MAH-750

$37.47

2

VALVE SET, FLOAT

16011-MAH-000

$64.47

3

FLOAT SET

16013-MAH-000

$45.47

4

CHAMBER SET, FLOAT

16015-MAH-750

Unavailable

5

SCREW SET

16016-MAH-670

$24.30

6

SCREW SET C

16029-MB0-671

Unavailable

7

PLATE SET, VALVE

16037-MAK-000

$15.30

7

PLATE SET, VALVE This part replaces 16037-MN9-004.

16037-MAK-000

$15.30

8

VALVE SET, STARTER

16046-MAA-610

$64.44

9

VALVE SET, AIR CUT

16048-MAH-670

Unavailable

10

SPRING, COMPRESSION COIL

16050-MAA-A00

$9.72

11

SPRING

16052-ME9-672

$5.42

12

O-RING (1.3X4.3)

16075-GHB-640

$2.69

13

O-RING (1.3X7.0)

16075-GHB-670

Unavailable

14

TOP

16107-MM8-004

Unavailable

15

PISTON, VACUUM

16111-MAA-A00

$139.94

16

CAP, CABLE SEALING

16118-ME9-671

$13.10

17

NEEDLE, JET

16131-MAA-A00

Unavailable

18

GASKET, FLOAT CHAMBER

16163-MAH-750

$32.24

19

HOLDER, NEEDLE JET This part replaces 16165-ME9-671.

16165-MZ8-R10

Unavailable

20

SCREW, PAN (4X10)

93500-04010-0A

$0.84

20

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$0.84

21

SCREW, PAN (4X10)

93500-04010-0A

$0.84

21

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$0.84

22

SCREW-WASHER (4X12)

93892-04012-08

$0.72

22

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$0.72

23

SCREW-WASHER (4X16)

93892-04016-00

$0.49

23

SCREW-WASHER (4X16) This part replaces 93892-04016-10.

93892-04016-00

$0.49

24

JET (#178) This part replaces 99101-GHB-1780.

99101-MAA-1780

$11.07

24

JET (#178)

99101-MAA-1780

$11.07

25

JET, SLOW (#42) This part replaces 99103-MT2-0420.

99103-MV9-0420

$19.19

27

JET (#178) This part replaces 99101-GHB-1780.

99101-MAA-1780

$11.07

27

JET (#178)

99101-MAA-1780

$11.07
