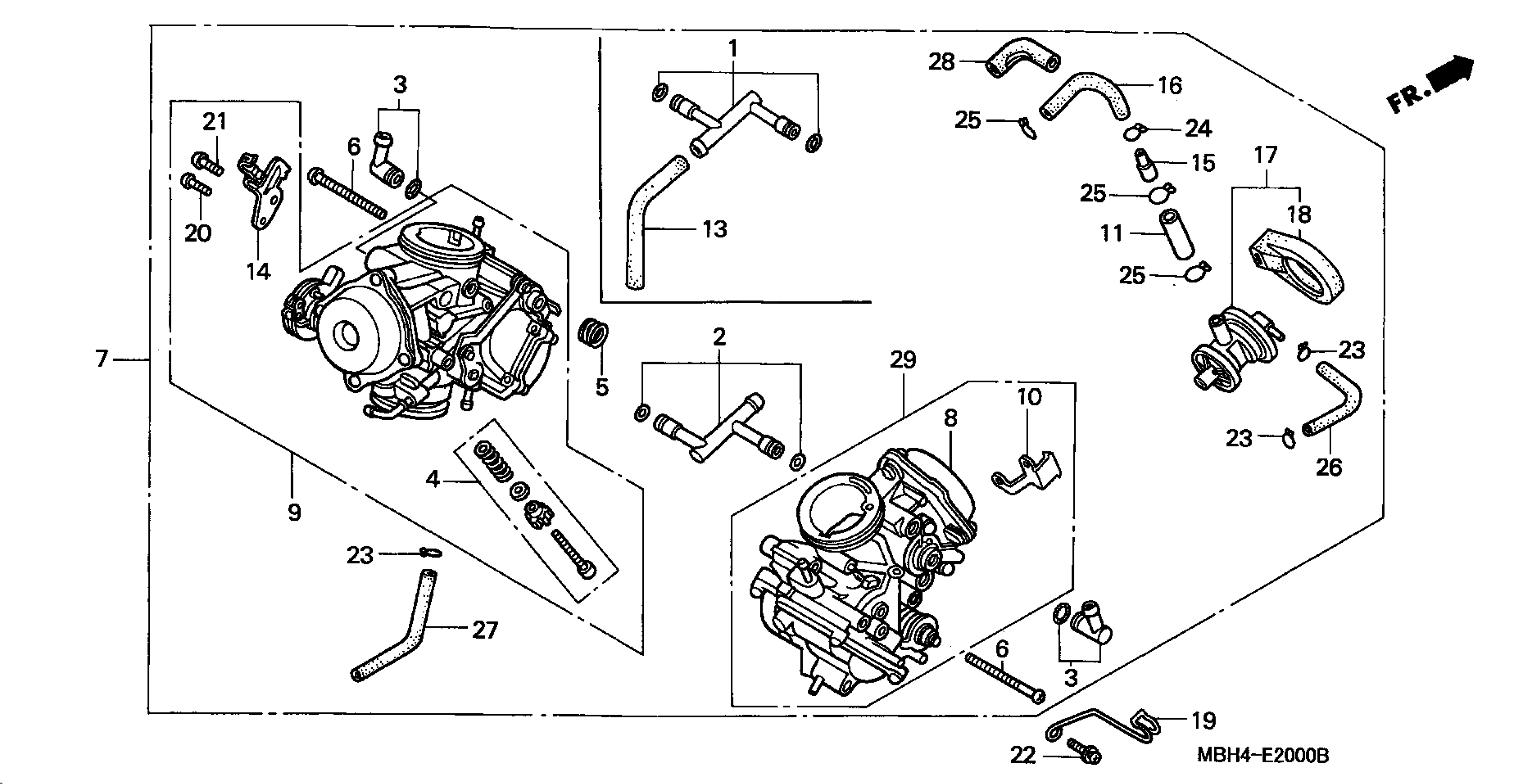

Honda VT1100C3AC (02) SHADOW AERO, USA, VIN# 1HFSC391-2A400001 CARBURETOR ASSY. Diagram

#

Description
Price

2

JOINT SET

16026-MAH-790

Unavailable

3

JOINT SET

16026-MR1-004

$41.04

4

SCREW SET

16028-MAH-000

$55.95

5

SPRING

16053-ME9-672

Unavailable

5

SPRING This part replaces 16053-MG7-601.

16053-ME9-672

Unavailable

6

SCREW, PAN

16082-ME9-671

Unavailable

7

CARBURETOR ASSY. (VDKEE A)

16100-MCK-L01

Unavailable

9

CARBURETOR ASSY., L.

16102-MCK-L01

$545.85

10

STAY, PLATE

16119-MAH-790

$13.08

11

TUBE

16143-MG8-791

Unavailable

14

STAY, WIRE

16169-MM9-621

Unavailable

15

JOINT

16180-MG8-791

Unavailable

16

TUBE

16199-MAH-790

Unavailable

17

VALVE ASSY., EVAP EMISSION CARB AIR VENT CONTROL

17300-MAH-791

Unavailable

18

RUBBER, MOUNTING

17305-MJ4-771

$12.46

19

CLAMP, IGNITION WIRE

30701-MAH-000

Unavailable

20

SCREW-WASHER (4X8)

93892-04008-00

$1.49

20

SCREW-WASHER (4X8) This part replaces 93892-04008-10.

93892-04008-00

$1.49

21

SCREW-WASHER (5X12)

93892-05012-00

$1.49

21

SCREW-WASHER (5X12) This part replaces 93892-05012-10.

93892-05012-00

$1.49

22

SCREW-WASHER (5X10)

93893-05010-08

$1.49

23

CLIP, TUBE (B7)

95002-02079

$1.49

24

CLIP, TUBE (B10)

95002-02109

$1.49

25

CLIP, TUBE (B12.5)

95002-02139

$1.49

26

BULK HOSE, VACUUM (3.5X8000) (3.5X115)

95005-35008-10M

$105.82

27

BULK HOSE, VACUUM (3.5X8000) (3.5X315)

95005-35008-10M

$105.82

28

PIPE, VINYL

16144-MAH-790

Unavailable

29

CARBURETOR ASSY., R.

16101-MCK-L01

Unavailable
