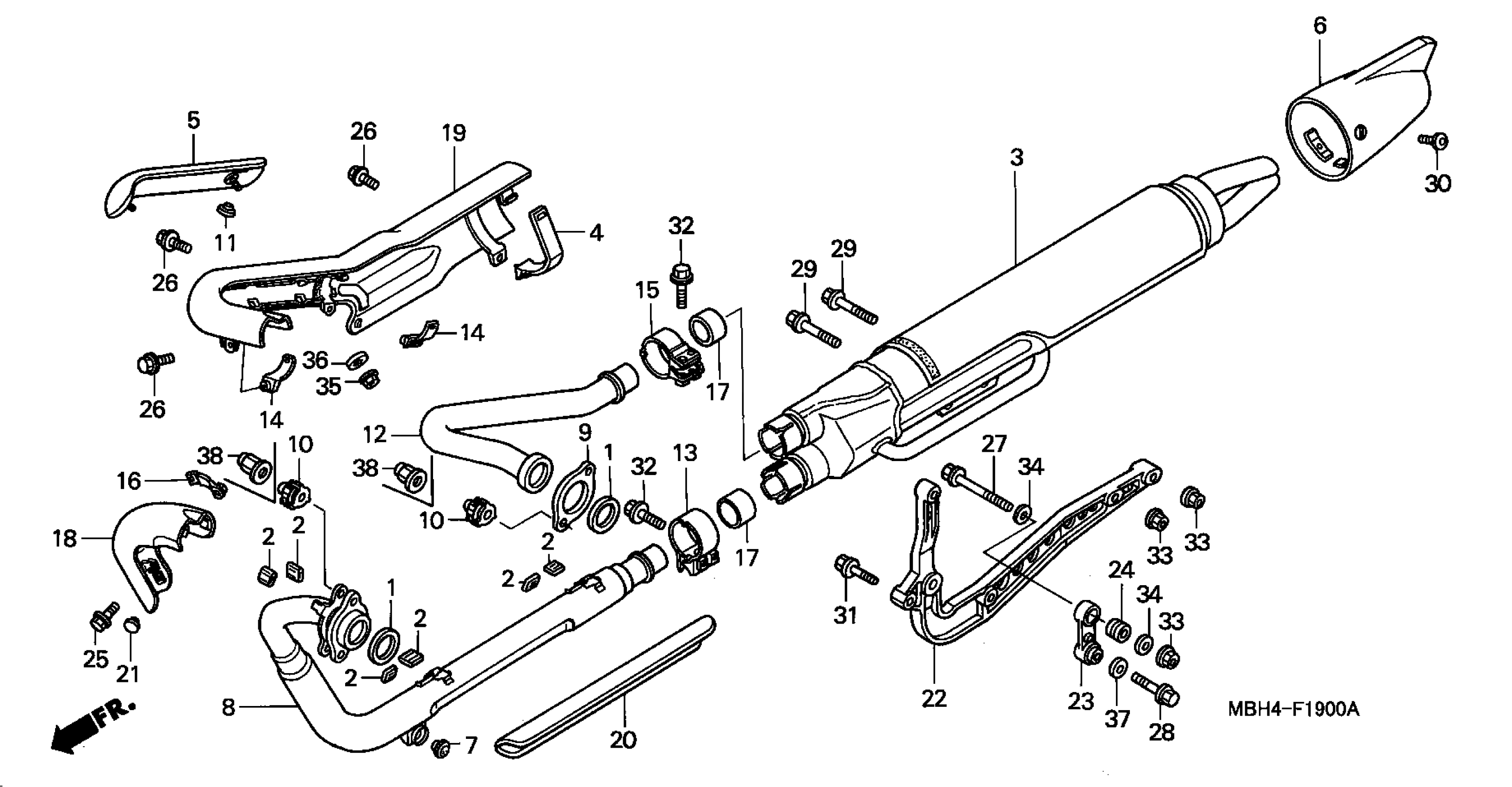

Honda VT1100C3A (99) SHADOW AERO, USA, VIN# 1HFSC390-XA100001 MUFFLER Diagram

GASKET, EX. PIPE

18291-MR5-801

$12.82

RUBBER, PROTECTOR

18293-MN0-000

$2.13

MUFFLER

18305-MBH-671

Unavailable

BAND, RR. EX. PIPE COVER

18314-MBH-003

Unavailable

PROTECTOR, RR. EX. PIPE

18315-MAH-003

$65.57

TAILPIECE, R.

18316-MBH-003

Unavailable

RUBBER, STOPPER

18319-MAH-000

$5.36

PIPE, FR. EX.

18320-MBH-003

Unavailable

JOINT, EX. PIPE

18325-MAH-000

$19.97

NUT ASSY. (8MM)

18330-MAH-000

$14.18

GROMMET A, MUFFLER PROTECTOR

18366-GW8-670

$4.23

PIPE, RR. EX.

18370-MBH-003

Unavailable

BAND, MUFFLER

18376-KG0-003

$18.83

BAND, EX. MUFFLER

18376-MAA-A01

Unavailable

BAND B, MUFFLER

18377-MAA-A01

Unavailable

BAND, RR. EX. PIPE COVER

18377-MAH-000

$13.51

GASKET, MUFFLER

18392-MBH-000

$16.50

COVER A, FR. EX. PIPE

18421-MAH-003

Unavailable

COVER, RR. EX. PIPE

18422-MBH-003

Unavailable

PROTECTOR, FR. EX. PIPE

18423-MBH-003

Unavailable

GROMMET, MUFFLER COVER

18430-MAH-000

Unavailable

BRACKET, MUFFLER

18455-MBH-000

Unavailable

BRACKET B, MUFFLER

18460-MAH-000

Unavailable

COLLAR, MUFFLER BRACKET

18461-MAH-000

Unavailable

BOLT, FLANGE (6X16) (NSHF) This part replaces 90001-GHB-630.

90004-GHB-630

$3.51

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

BOLT, FLANGE (6X25) (NSHF) This part replaces 90001-GHB-670.

90004-GHB-670

$2.89

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.89

BOLT, FLANGE (8X80)

90011-KV3-680

Unavailable

BOLT, FLANGE (8X80) This part replaces 90011-KV3-770.

90011-KV3-680

Unavailable

BOLT, UBS (8X36)

90031-752-000

Unavailable

BOLT, FLANGE (8X40)

90103-KAB-670

$4.28

SCREW, PAN (6X10)

90105-MM4-000

$2.21

BOLT, FLANGE (8X32)

90109-MAH-000

$9.46

BOLT, FLANGE (8X35)

90161-ML7-000

$3.67

NUT, FLANGE (8MM)

90309-MR1-770

$3.12

WASHER, SPECIAL (28X8.5X4.0)

90435-611-000

$8.69

NUT-WASHER (5MM)

94070-05080

$1.49

WASHER, PLAIN (5MM)

94103-05800

$1.49

WASHER, PLAIN (8MM)

94103-08800

$1.49
