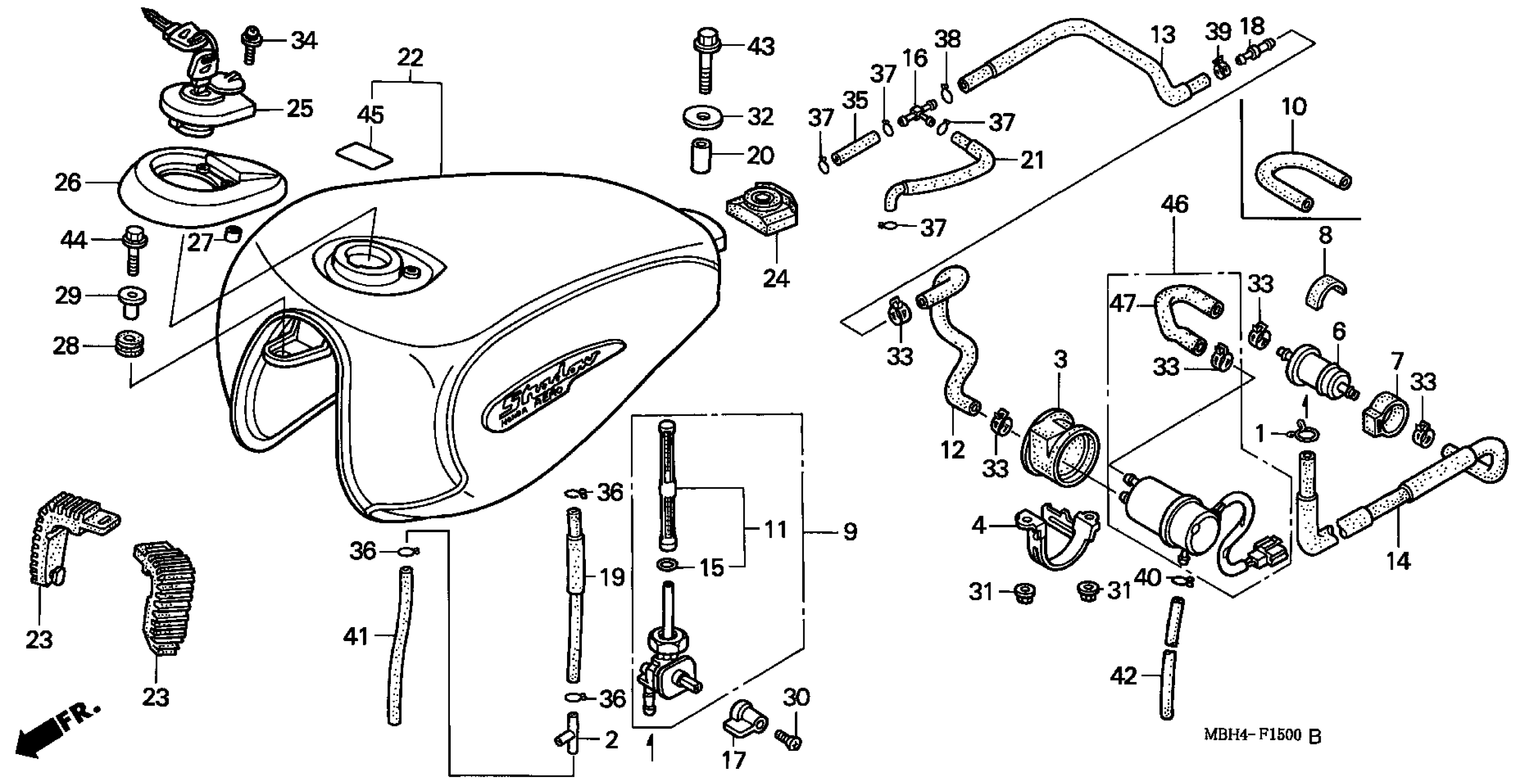

Honda VT1100C3A (98) SHADOW AERO, USA, VIN# 1HFSC390-WA000001 FUEL TANK Diagram

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.72

T-JOINT

16180-195-731

$12.95

RUBBER, FUEL PUMP

16701-MAA-000

$20.06

BAND, FUEL PUMP

16703-MM8-000

Unavailable

FILTER, FUEL

16900-MG8-003

$23.49

CUSHION, FUEL STRAINER

16905-MG7-000

$7.95

PROTECTOR

16911-MAH-300

$6.49

PETCOCK ASSY. This part replaces 16950-MAH-003.

16950-MAH-023

$103.68

PETCOCK ASSY. This part replaces 16950-MAH-013.

16950-MAH-023

$103.68

PETCOCK ASSY.

16950-MAH-023

$103.68

TUBE B, FUEL

16952-MAH-000

Unavailable

SCREEN SET, FUEL STRAINER

16952-MAH-003

$36.05

TUBE C, FUEL

16953-MAH-000

$11.84

TUBE D, FUEL

16954-MAH-000

$16.58

TUBE A, FUEL

16955-MAH-000

$26.55

O-RING

16958-KM9-005

$3.89

JOINT, FUEL TUBE

16961-MK7-000

$21.68

LEVER, PETCOCK

16963-MY5-610

$14.29

JOINT, FUEL TUBE

16966-MR1-000

$7.57

TUBE, FUEL TANK BREATHER

17467-MAH-000

Unavailable

COLLAR, FUEL TANK SETTING

17515-MAH-000

$2.95

TUBE, L. CARBURETOR FUEL

17515-MG8-000

$11.70

TANK SET, FUEL (TYPE2) (WL)

17520-MBH-000ZE

Unavailable

TANK SET, FUEL (TYPE3) (WL)

17520-MBH-000ZF

Unavailable

TANK SET, FUEL (TYPE4) (WL)

17520-MBH-000ZG

Unavailable

TANK SET, FUEL (TYPE1) (WL)

17520-MBH-000ZD

Unavailable

TANK SET, FUEL *NH1* (WL) (BLACK) This part replaces 17520-MBH-000ZC.

17520-MBH-A30ZA

Unavailable

TANK SET, FUEL *NH1* (WL) (BLACK) This part replaces 17520-MBH-A20ZC.

17520-MBH-A30ZA

Unavailable

TANK SET, FUEL *NH1* (WL) (BLACK)

17520-MBH-A30ZA

Unavailable

RUBBER, FR. FUEL TANK

17611-MM8-000

$29.62

RUBBER, RR. FUEL TANK

17613-MM8-000

$39.01

CAP COMP,FUEL FILLER This part replaces 17620-MW3-681.

17620-MW3-682

$106.30

COVER, FUEL CAP

17621-MZ0-000

Unavailable

RUBBER, CAP COVER

17623-MZ0-000

Unavailable

RUBBER, RADIATOR MOUNTING

19051-GE2-000

$4.98

COLLAR, SETTING

61104-422-000

$6.91

SCREW, OVAL (5X12)

90111-MZ5-000

$3.85

NUT, U (6MM)

90301-473-003

$4.07

WASHER, TANK MOUNTING

90455-896-700

$3.13

CLAMP, CANISTER HOSE

90682-SA0-671

$7.67

SCREW-WASHER (4X16)

93892-04016-00

$1.49

BULK HOSE, FUEL (5.5X3000) (5.5X65)

95001-55003-60M

$47.32

CLIP, TUBE (B8)

95002-02080

$1.80

CLIP, TUBE (B10)

95002-02100

$1.90

CLIP, TUBE (B12)

95002-02120

$2.00

CLAMP, TUBE (D12)

95002-41200-08

$2.34

CLIP, TUBE (C9)

95002-50000

$1.49

BULK HOSE, VACUUM (4.5X1000) (4.5X320)

95005-45001-10M

$23.47

BULK HOSE, VACUUM (5X3000) (5X300)

95005-50003-30M

$20.85

BOLT, FLANGE (8X35)

95701-08035-07

$1.49

BOLT, FLANGE (6X25)

96001-06025-07

$1.49

FILM, PROTECTOR

17503-MY1-300

$3.44

PUMP ASSY., FUEL

16710-MAH-305

$188.84

TUBE B, FUEL

16952-MAH-010

$9.76
