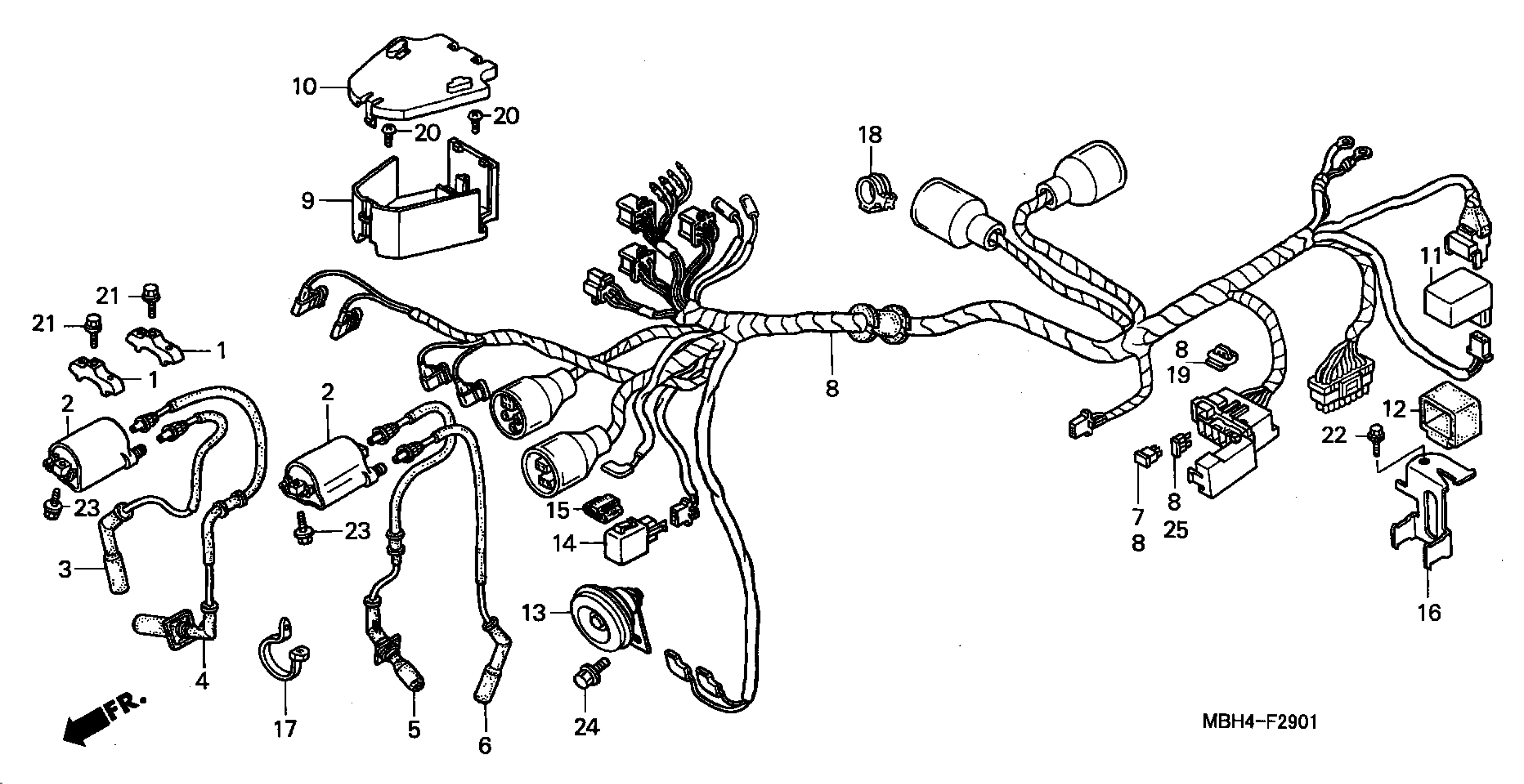

Honda VT1100C3A (02) SHADOW AERO, USA, VIN# 1HFSC390-2A400001 WIRE HARNESS (2) Diagram

BRACKET, IGNITION COIL

30505-MM8-000

Unavailable

COIL, IGNITION

30510-MCC-003

$89.93

CAP ASSY. 1, IGNITION

30751-MAH-003

$61.06

CAP ASSY. 2, IGNITION

30752-MAH-003

$69.60

CAP ASSY. 3, IGNITION

30753-MM8-770

$62.18

CAP ASSY. 4, IGNITION

30754-MAH-003

$65.31

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-MBH-A20

Unavailable

BOX, FR. CONNECTOR

32510-MM8-000

Unavailable

COVER, FR. CONNECTOR BOX

32511-MM8-000

$15.51

RELAY, FUEL CUT (SHINDENGEN)

36100-MN4-008

$95.46

SUSPENSION, FUEL CUT RELAY

36101-MB1-000

$6.54

HORN (LOW)

38120-MAH-003

$81.10

RELAY, TURN SIGNAL (TATEISHI)

38301-MF5-771

$81.63

SUSPENSION, TURN SIGNAL RELAY

38306-MF5-770

$5.77

STAY, STARTER MAGNETIC SWITCH

50330-MAH-000

Unavailable

CLIP, CABLE (10MM)

90690-GHB-641

$2.18

CLIP, CABLE (30MM)

90690-GHB-681

$2.92

CLIP, CONNECTOR (ORANGE)

91580-SM4-003

$6.67

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$1.49

SCREW, PAN (5X12)

93500-05012-0A

$1.49

SCREW, PAN (5X12) This part replaces 93500-05012-00.

93500-05012-0A

$1.49

SCREW, PAN (5X12) This part replaces 93500-05012-1A.

93500-05012-0A

$1.49

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

BOLT, FLANGE (8X12)

95701-08012-07

$1.72

FUSE, MINI (10A)

98200-41000

$1.49
