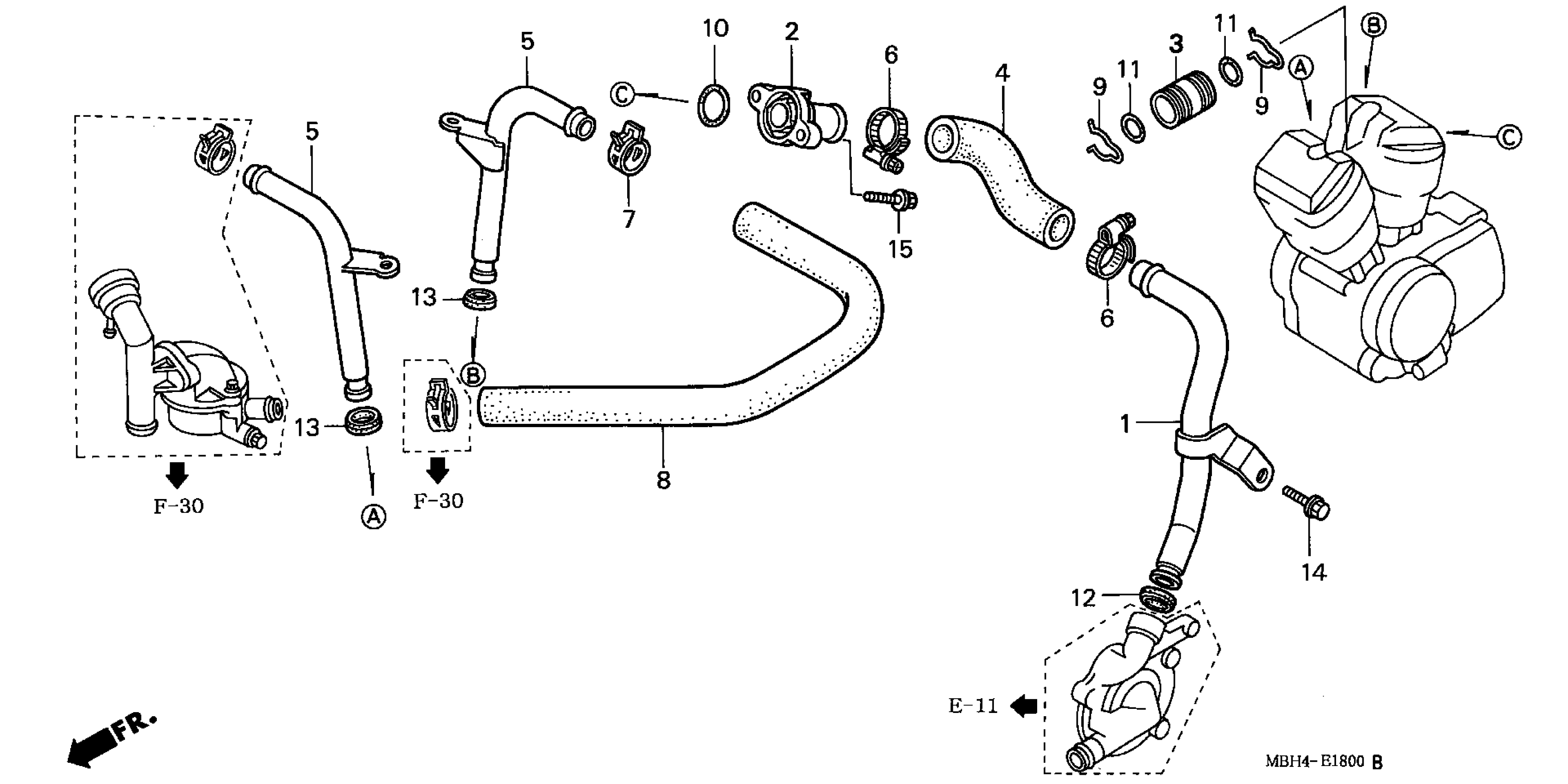

Honda VT1100C3A (02) SHADOW AERO, USA, VIN# 1HFSC390-2A400001 WATER PIPE Diagram

PIPE, INLET WATER

19501-MAA-A00

Unavailable

JOINT, WATER HOSE

19504-MAA-A00

Unavailable

JOINT, WATER

19505-MAA-A00

$26.93

HOSE, IN. WATER

19506-MAA-A00

$15.45

PIPE A, OUTLET WATER

19511-MM8-000

$30.17

CLAMP, HOSE (30-37MM)

19516-GAG-003

$12.40

CLIP, WATER HOSE

19517-KM9-000

$7.54

HOSE B, OUTLET WATER

19522-MM8-000

$28.12

CLIP, RING (22MM)

90601-MAA-A00

$3.75

O-RING (29X2.4)

91301-MAA-A00

$3.32

O-RING (21.5X2)

91310-MB0-003

$2.67

SEAL, WATER PIPE (22.5MM)

91315-MAH-003

$7.13

SEAL, WATER PIPE (ARAI)

91315-ME9-003

$4.20

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
