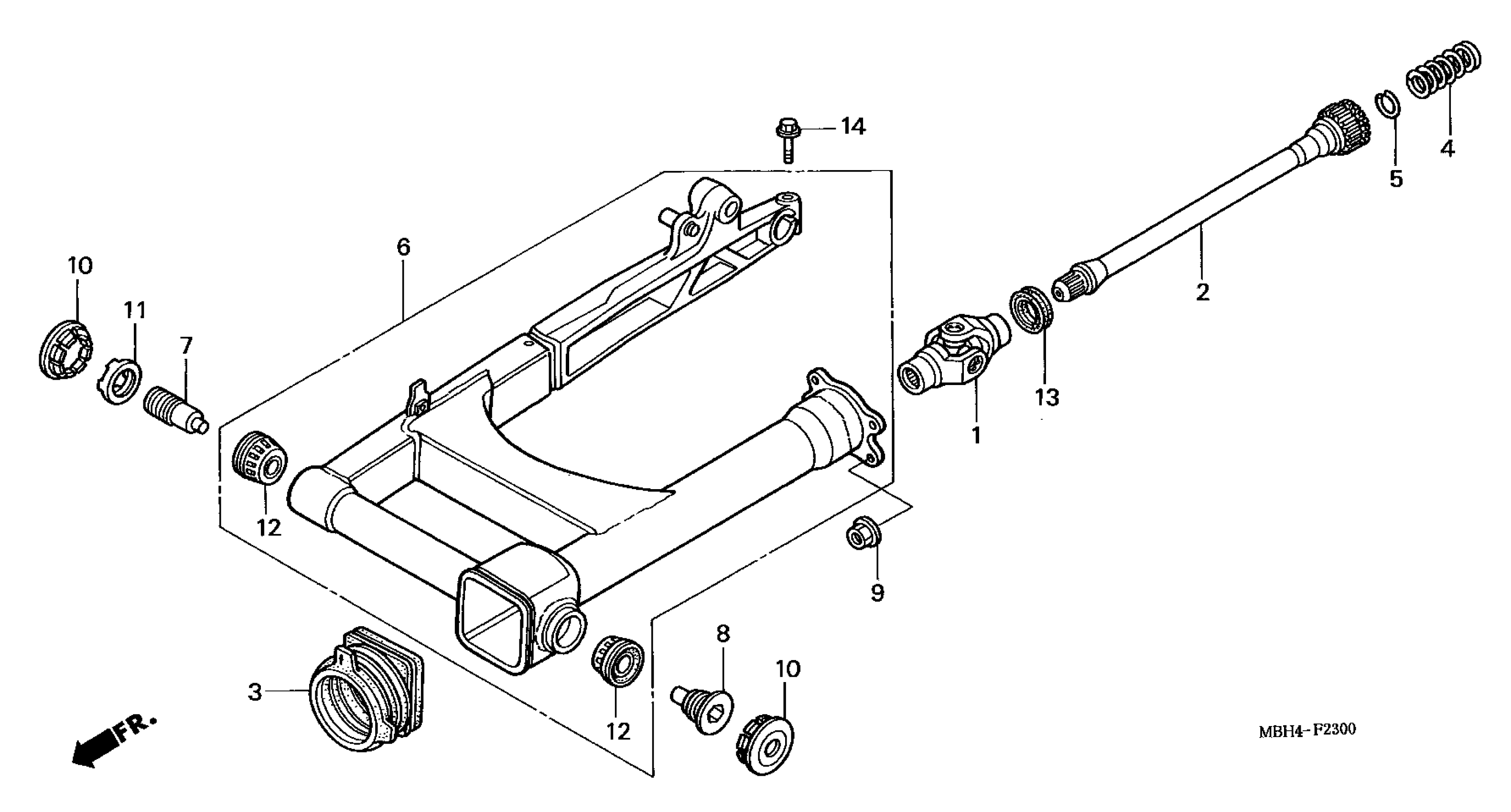

Honda VT1100C3A (02) SHADOW AERO, USA, VIN# 1HFSC390-2A400001 SWINGARM Diagram

JOINT ASSY., YOKE

40200-MAH-A00

$186.23

SHAFT, PROPELLER

40201-MBH-000

$70.48

BOOT, JOINT

40207-MG8-000

$12.00

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.90

RING, STOPPER

40221-MB0-000

$4.53

SWINGARM ASSY., RR.

52100-MBH-000

$390.28

BOLT, R. SWINGARM PIVOT

90121-MAH-A00

$12.31

BOLT, L. SWINGARM PIVOT

90122-MAH-A00

$12.13

NUT, HEX. (10MM)

90308-357-000

$4.85

CAP, R. LOCK NUT

90312-MB0-700

$18.22

NUT, SWINGARM PIVOT LOCK

90355-469-000

$17.54

BEARING, TAPER ROLLER (17X40X23.5) (NSK)

91066-HA7-672

$62.07

OIL SEAL (27X43X7)

91261-ME9-005

$12.13

BOLT, FLANGE (8X32)

95701-08032-00

$1.49
