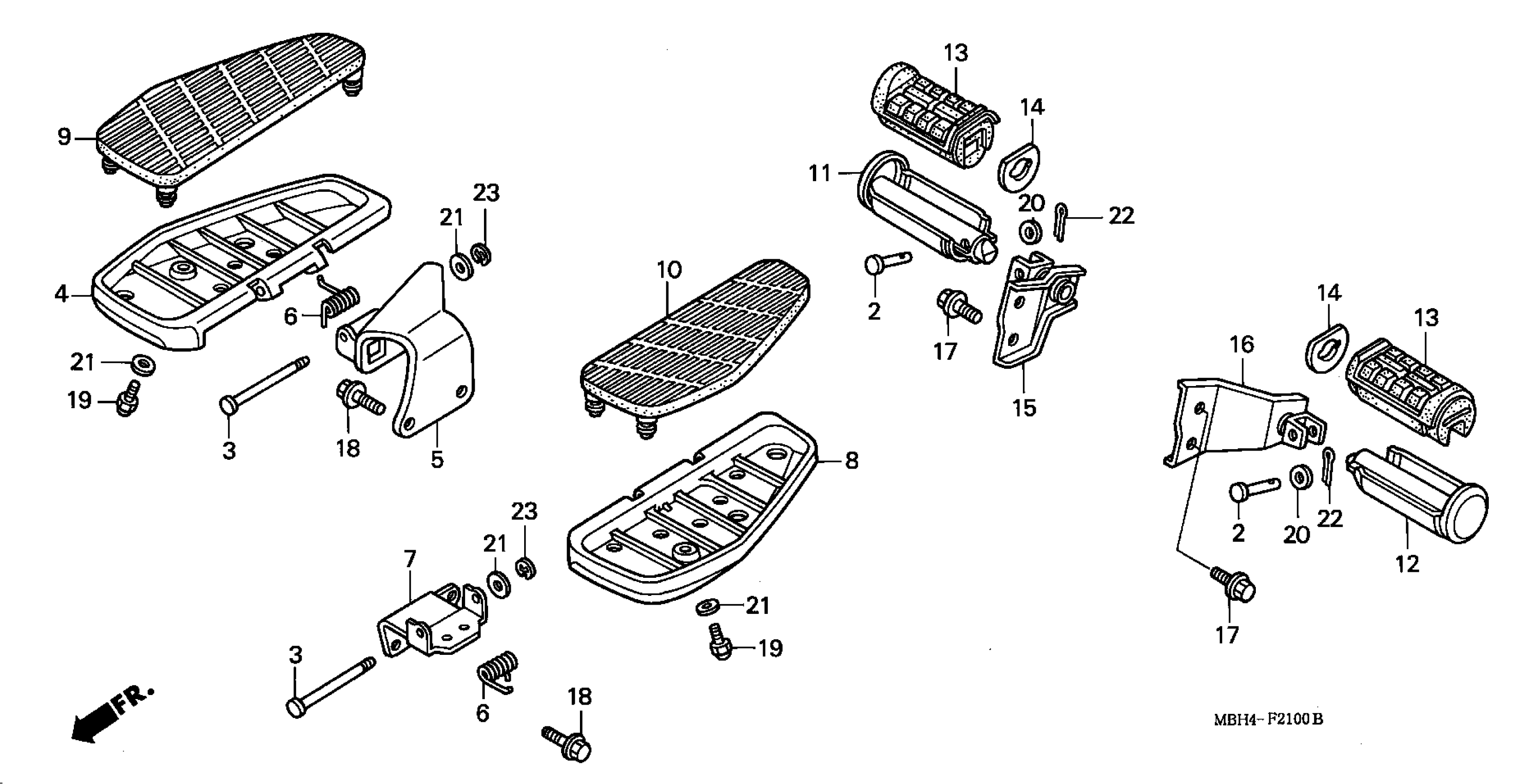

Honda VT1100C3A (02) SHADOW AERO, USA, VIN# 1HFSC390-2A400001 STEP Diagram

#

Description
Price

2

PIN, STEP BAR JOINT

50603-KB4-000

$4.84

3

PIN, STEP JOINT

50603-MBH-000

$7.26

4

BAR, R. STEP

50612-MBH-000

$133.31

5

BRACKET, R. STEP

50615-MBH-000

Unavailable

6

SPRING, STEP RETURN

50617-MBH-000

$7.38

7

BRACKET, L. STEP

50625-MBH-000

Unavailable

8

BAR, L. STEP

50642-MBH-000

$133.31

9

RUBBER, R. MAIN STEP

50661-MBH-000

$91.05

10

RUBBER, L. MAIN STEP

50662-MBH-000

$91.05

11

BAR, R. PILLION STEP

50711-MM8-000

Unavailable

12

BAR, L. PILLION STEP

50712-MM8-000

Unavailable

13

RUBBER, PILLION STEP

50713-MK7-000

Unavailable

14

WASHER, PILLION STEP

50714-MK7-000

$5.05

15

BRACKET, R. PILLION STEP

50715-MBH-760

Unavailable

16

BRACKET, L. PILLION STEP

50815-MBH-760

Unavailable

17

BOLT, SPECIAL FLANGE (10X16)

90109-KN8-730

$4.65

18

BOLT, SPECIAL FLANGE (10X30)

90110-MBH-000

$7.13

19

BOLT, CAP (8X14)

92501-08014-0B

$3.08

20

WASHER, PLAIN (8MM)

94101-08000

$1.49

21

WASHER, PLAIN (8MM)

94102-08000

$1.49

22

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

22

PIN, COTTER (1.6X25)

94201-16250

$1.49

23

E-RING (7MM)

94540-07029

$3.67
