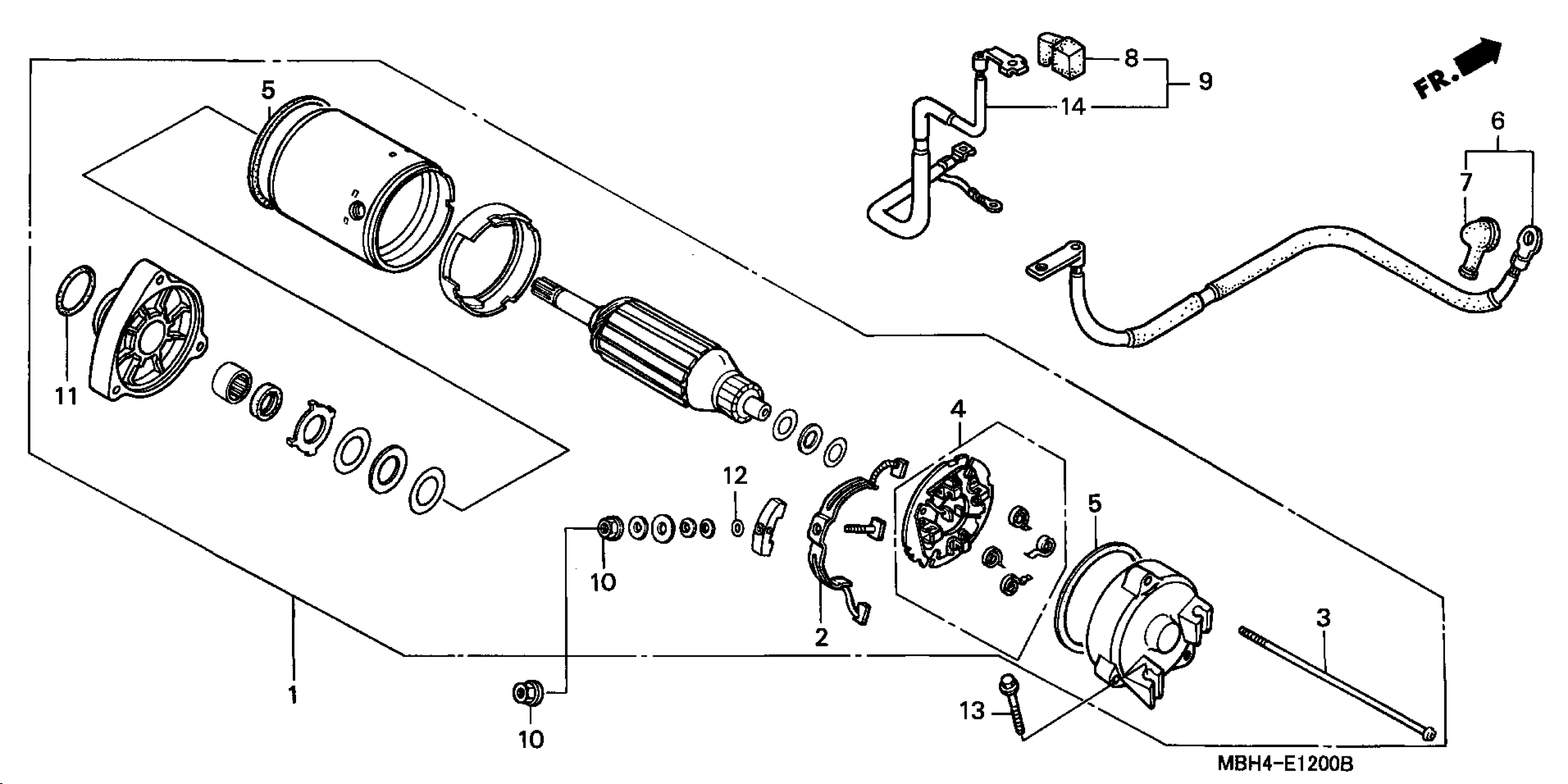

Honda VT1100C3A (02) SHADOW AERO, USA, VIN# 1HFSC390-2A400001 STARTER MOTOR Diagram

#

Description

Price

1

MOTOR ASSY., STARTER

31200-MAH-008

Unavailable

2

TERMINAL SET, BRUSH

31201-MR6-008

$23.39

3

BOLT, SETTING This part replaces 31205-MF5-008.

31205-MR1-008

$5.26

4

HOLDER SET, BRUSH

31206-MR6-008

$24.58

5

RING

31207-KS5-901

$3.12

6

CABLE, STARTER MOTOR

32410-MCK-A00

Unavailable

7

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

7

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

10

NUT-WASHER (6MM)

90071-MB0-000

$1.97

11

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

11

O-RING (24.4X3.1)

91312-MG7-003

$6.34

12

O-RING

91320-MB0-000

$2.43

13

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

14

CABLE, BATTERY GROUND

32601-MCK-A00

Unavailable
