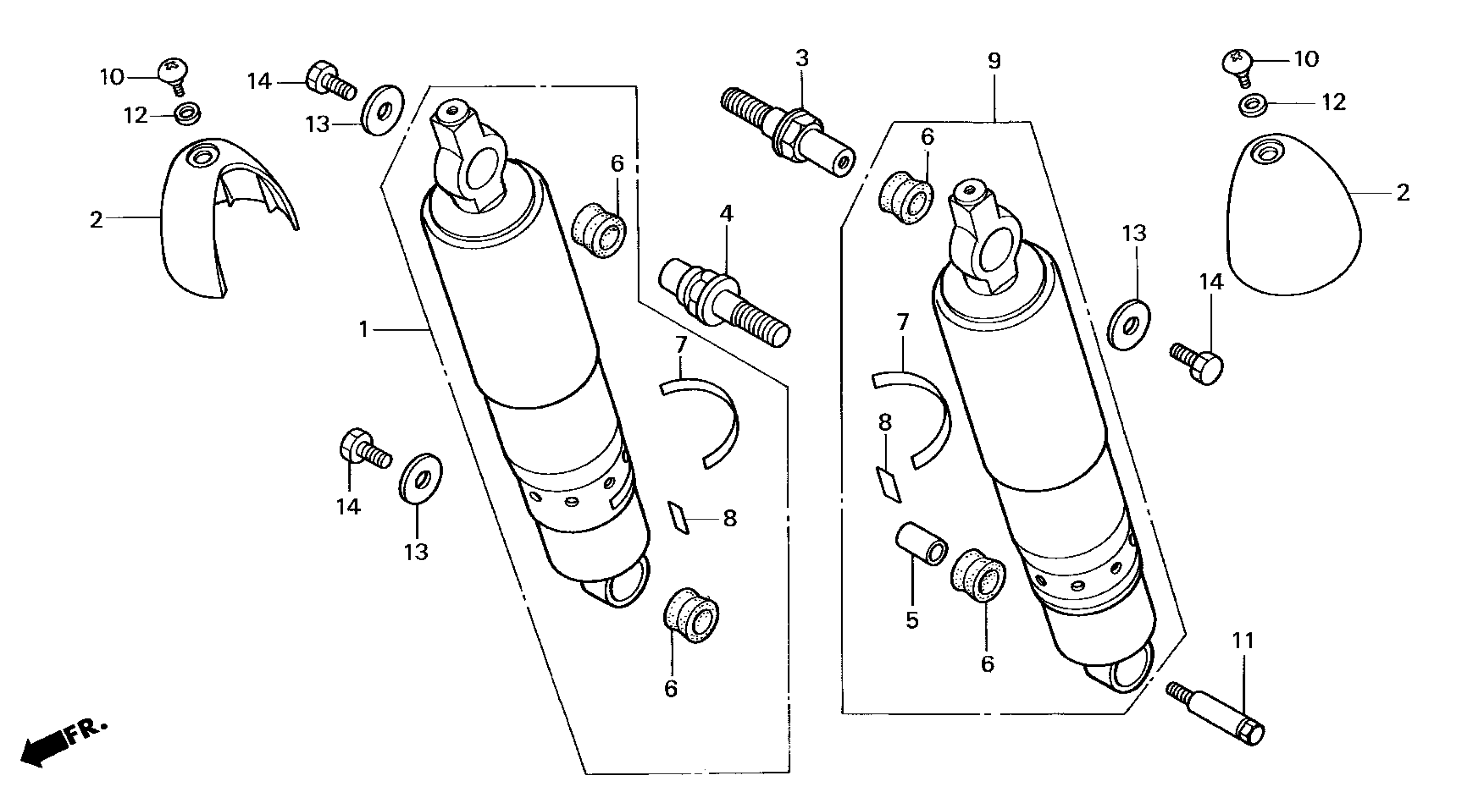

Honda VT1100C3A (02) SHADOW AERO, USA, VIN# 1HFSC390-2A400001 REAR SHOCK ABSORBER Diagram

SHOCK ABSORBER ASSY., R. RR.

52400-MBH-013

Unavailable

COVER, RR. SHOCK ABSORBER

52408-MBH-000

$25.33

BOLT, RR. SHOCK

52452-MAH-A40

$19.83

BOLT, RR. SHOCK ABSORBER

52452-MBH-000

Unavailable

COLLAR, RR. SHOCK ABSORBER

52486-MG9-671

$9.54

BUSH, RR. SHOCK ABSORBER

52489-KR3-003

$4.73

LABEL A

52496-MB4-003

$6.88

LABEL B, RR. CUSHION

52497-KR3-003

Unavailable

SHOCK ABSORBER ASSY., L. RR.

52500-MBH-013

Unavailable

SCREW, SPECIAL (6X10)

90112-MBH-000

$2.16

BOLT, RR. CUSHION

90159-MG9-000

$15.81

WASHER, RUBBER X (0.5) (15.5)

90501-MBH-000

$0.10

WASHER (8.5X26)

90504-ME4-000

$3.03

BOLT, HEX. (8X12)

95501-08012-02

$1.87
