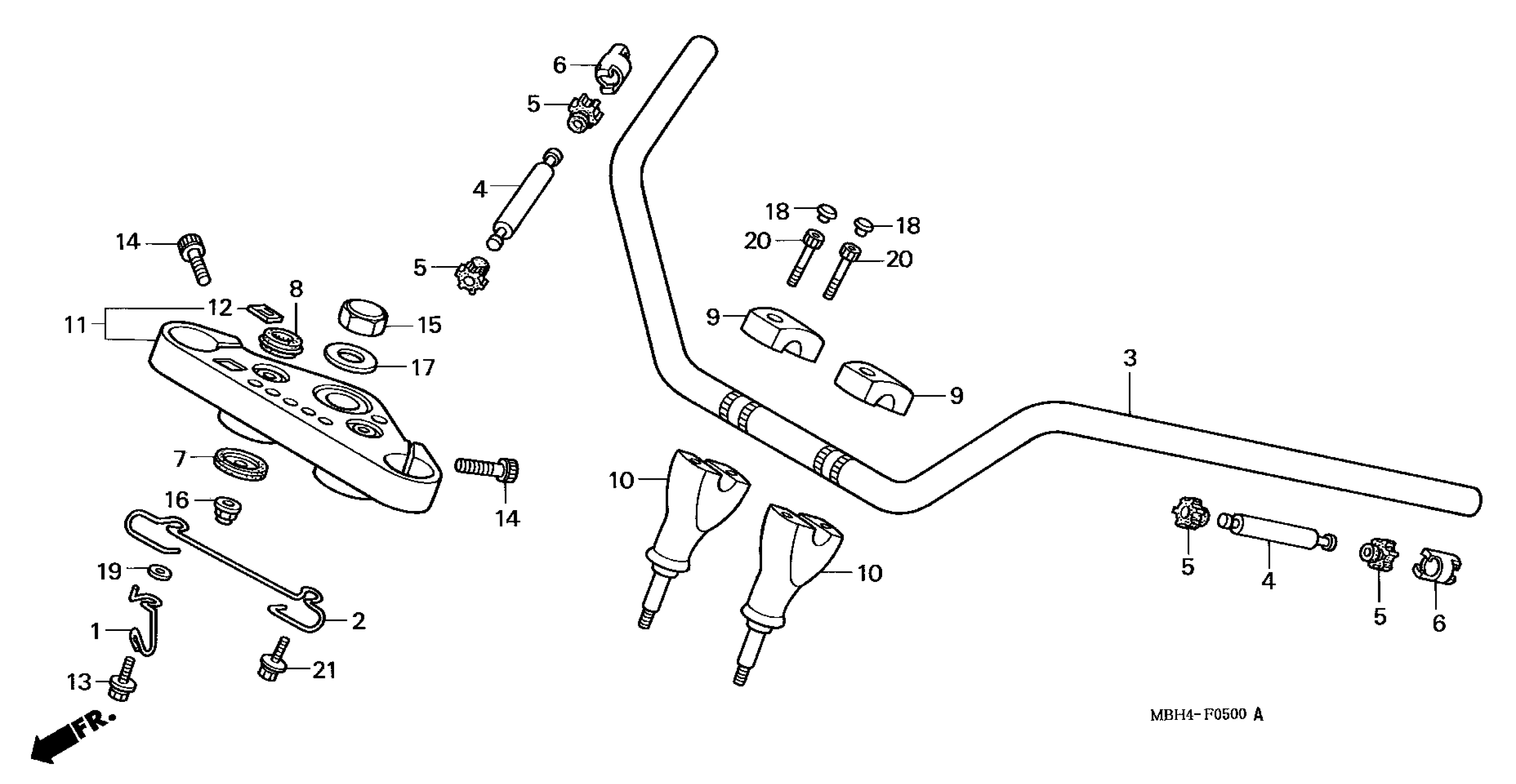

Honda VT1100C3A (02) SHADOW AERO, USA, VIN# 1HFSC390-2A400001 HANDLEBAR Diagram

#

Description
Price

1

GUIDE, FR. BRAKE HOSE

45156-MBH-000

Unavailable

2

GUIDE, CABLE

50337-MBH-000

Unavailable

3

HANDLEBAR

53100-MBH-000

Unavailable

4

WEIGHT, HANDLE

53106-KG1-920

$13.47

5

RUBBER, HANDLE WEIGHT

53107-MM8-000

$5.36

6

RING, HANDLE WEIGHT SNAP

53108-KW9-920

$7.04

7

WASHER, HANDLE HOLDER (LOWER)

53126-MBH-000

Unavailable

8

CAP, HANDLE (LOWER)

53125-MBH-000

Unavailable

9

HOLDER, HANDLE (UPPER)

53131-MM8-000

$19.24

10

HOLDER, HANDLE (LOWER)

53231-MBH-000

Unavailable

11

BRIDGE ASSY., FORK TOP

53300-MBH-000

Unavailable

12

EMBLEM, WING MARK

86150-MR1-760

$8.75

13

BOLT-WASHER (6X20)

90103-MBC-000

$2.64

14

BOLT, SOCKET (8X30)

90112-KM4-000

$4.06

15

NUT, STEERING STEM

90304-415-000

$19.83

16

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

16

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

17

WASHER, STEERING STEM

90503-283-000

$4.37

18

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

BOLT, SOCKET (8X32)

96700-08032-10

$1.62

21

BOLT-WASHER (6X16)

90103-MBH-000

Unavailable
