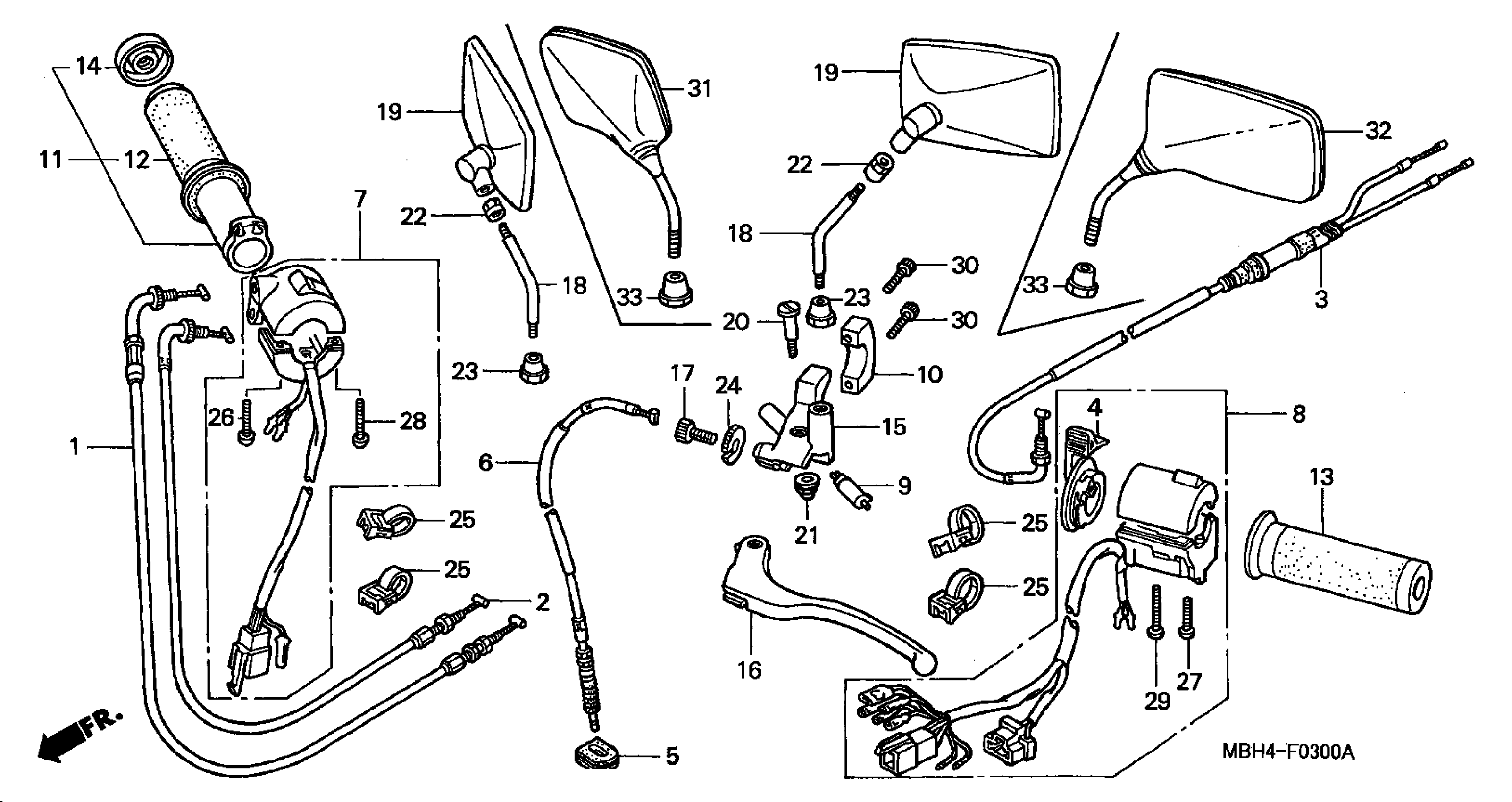

Honda VT1100C3A (02) SHADOW AERO, USA, VIN# 1HFSC390-2A400001 HANDLE SWITCH Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MBH-000

$34.06

2

CABLE B, THROTTLE

17920-MBH-000

$31.43

3

CABLE, CHOKE

17950-MBH-000

Unavailable

4

LEVER, CHOKE

17962-MZ0-671

$19.79

5

GROMMET, WIRE

19905-ZA8-701

$3.57

6

CABLE, CLUTCH

22870-MBH-000

$28.43

7

SWITCH SET, STARTER STOP

35013-MBH-A20

Unavailable

8

SWITCH SET, TURN SIGNAL

35020-MBH-A20

Unavailable

9

SWITCH, FR. LEVER

35330-413-003

$19.67

10

HOLDER, MASTER CYLINDER (NISSIN)

45517-MR1-671

$24.47

11

GRIP, R.

53145-MM8-000

$39.08

12

GRIP, R.

53145-MM8-000

$39.08

12

GRIP, R. This part replaces 53165-MM8-000.

53145-MM8-000

$39.08

13

GRIP, L. HANDLE

53166-KCR-000

$32.91

14

CAP, GRIP END

53167-MM8-000

$8.41

15

BRACKET, HANDLE LEVER

53172-MR1-000

$32.04

16

LEVER, L. HANDLE

53178-MAH-000

$17.39

17

BOLT, WIRE ADJUSTING

53192-268-000

$6.08

20

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.06

21

NUT, CAP (6MM)

90201-415-000

$1.96

24

NUT, FIXING

90321-MA6-750

$9.38

25

CLIP, CABLE (17MM)

90690-GHB-701

$2.78

26

SCREW, PAN (5X20)

93500-05020-0A

$0.75

27

SCREW, PAN (5X22)

93500-05022-0A

$0.61

28

SCREW, PAN (5X25)

93500-05025-0A

$0.86

29

SCREW, PAN (5X32)

93500-05032-0A

$1.00

30

BOLT, SOCKET (6X22)

96600-06022-10

$1.91

30

BOLT, SOCKET (6X22) This part replaces 96700-06022-10.

96600-06022-10

$1.91

31

MIRROR, R.

88210-GCK-000

Unavailable

32

MIRROR, L.

88220-GCK-000

Unavailable

33

NUT, LOCK

90314-323-000

$4.13
