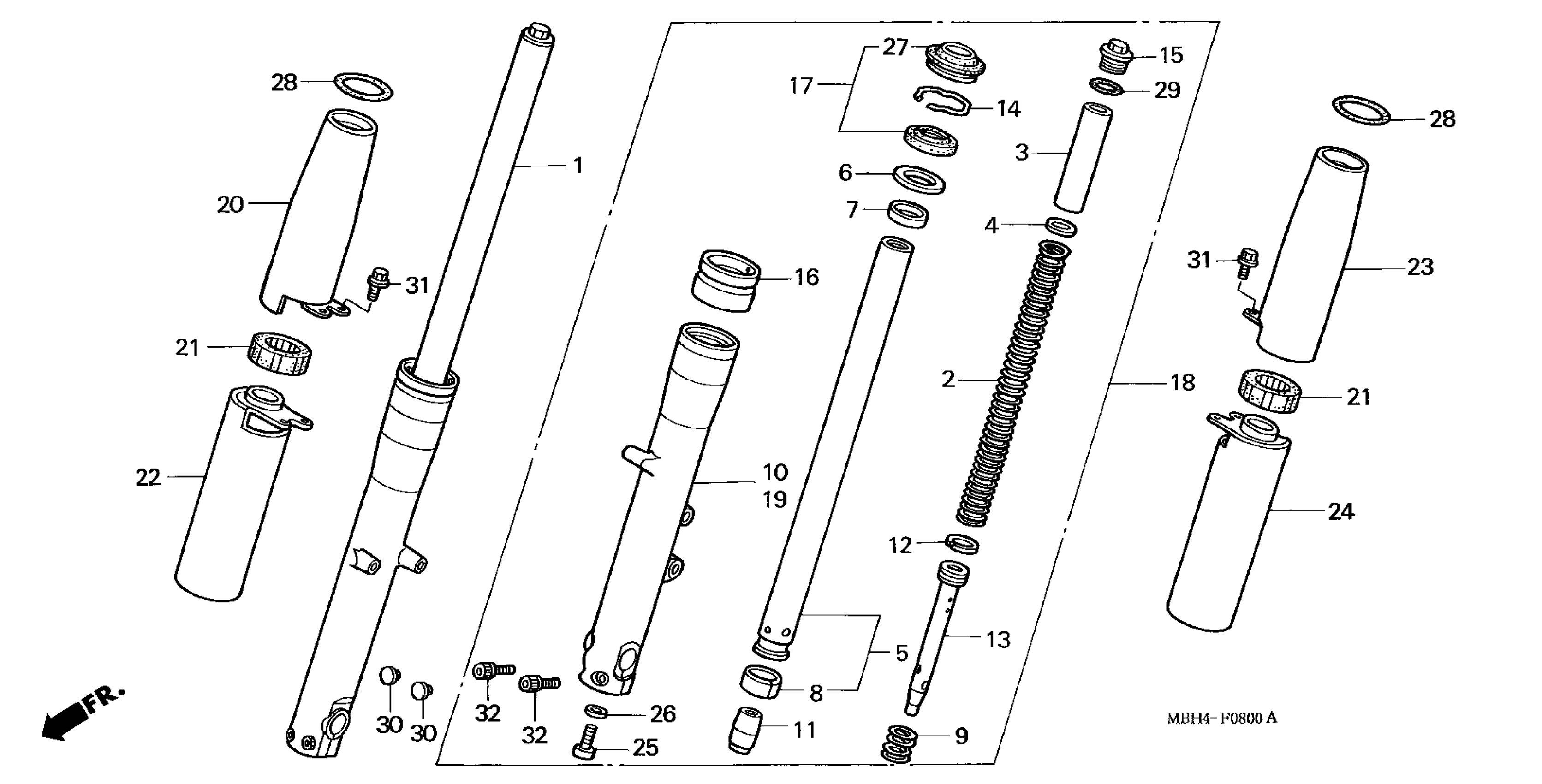

Honda VT1100C3A (02) SHADOW AERO, USA, VIN# 1HFSC390-2A400001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR.

51400-MBH-003

Unavailable

2

SPRING, FR. FORK

51401-MBH-003

Unavailable

3

COLLAR, SPRING

51402-MBH-003

Unavailable

4

PLATE, SPRING JOINT

51404-MB4-003

$4.60

5

PIPE, FR. FORK

51410-MBC-003

Unavailable

6

RING, BACK-UP

51412-MB4-003

$8.66

7

BUSH, GUIDE (SHOWA)

51414-KCR-003

$12.58

8

BUSH, SLIDER (SHOWA)

51415-KCR-003

$11.02

9

SPRING, FR. REBOUND (SHOWA)

51416-MM8-881

$5.48

10

CASE, R. (LOWER)

51420-MBH-003

Unavailable

11

PIECE, OIL LOCK

51432-MV9-003

$22.28

12

RING, PISTON

51437-MN5-003

$7.67

13

PIPE, SEAT (SHOWA)

51440-MAH-671

Unavailable

14

RING, OIL SEAL STOPPER

51447-KA4-711

$4.20

15

BOLT, FR. FORK

51455-MG9-771

$43.81

16

COVER, FR. FORK CASE

51460-MBH-003

$4.74

17

SEAL SET, FR. FORK (SHOWA)

51490-MN8-305

$31.62

18

FORK ASSY., L. FR.

51500-MBH-003

Unavailable

19

CASE, L. (LOWER)

51520-MBH-003

Unavailable

20

COVER, R. FR. FORK TOP

51610-MBH-000

Unavailable

21

MOUNT, FR. FORK COVER

51611-MBA-000

$8.88

22

COVER, R. FR. FORK (LOWER)

51620-MBH-000

Unavailable

23

COVER, L. FR. FORK TOP

51660-MBH-000

Unavailable

24

COVER, L. FR. FORK (LOWER)

51670-MBH-000

Unavailable

25

BOLT, SOCKET (8MM)

90116-KV3-701

$3.62

26

WASHER, SPECIAL (8MM)

90544-283-000

$2.61

27

DUST SEAL

91254-MM8-003

$16.06

28

O-RING (39.5X5)

91305-MC7-000

Unavailable

29

O-RING

91356-MB4-003

$3.30

30

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.36

31

BOLT, FLANGE (6X12)

96001-06012-02

$1.13

32

BOLT, SOCKET (8X35)

96600-08035-10

Unavailable
