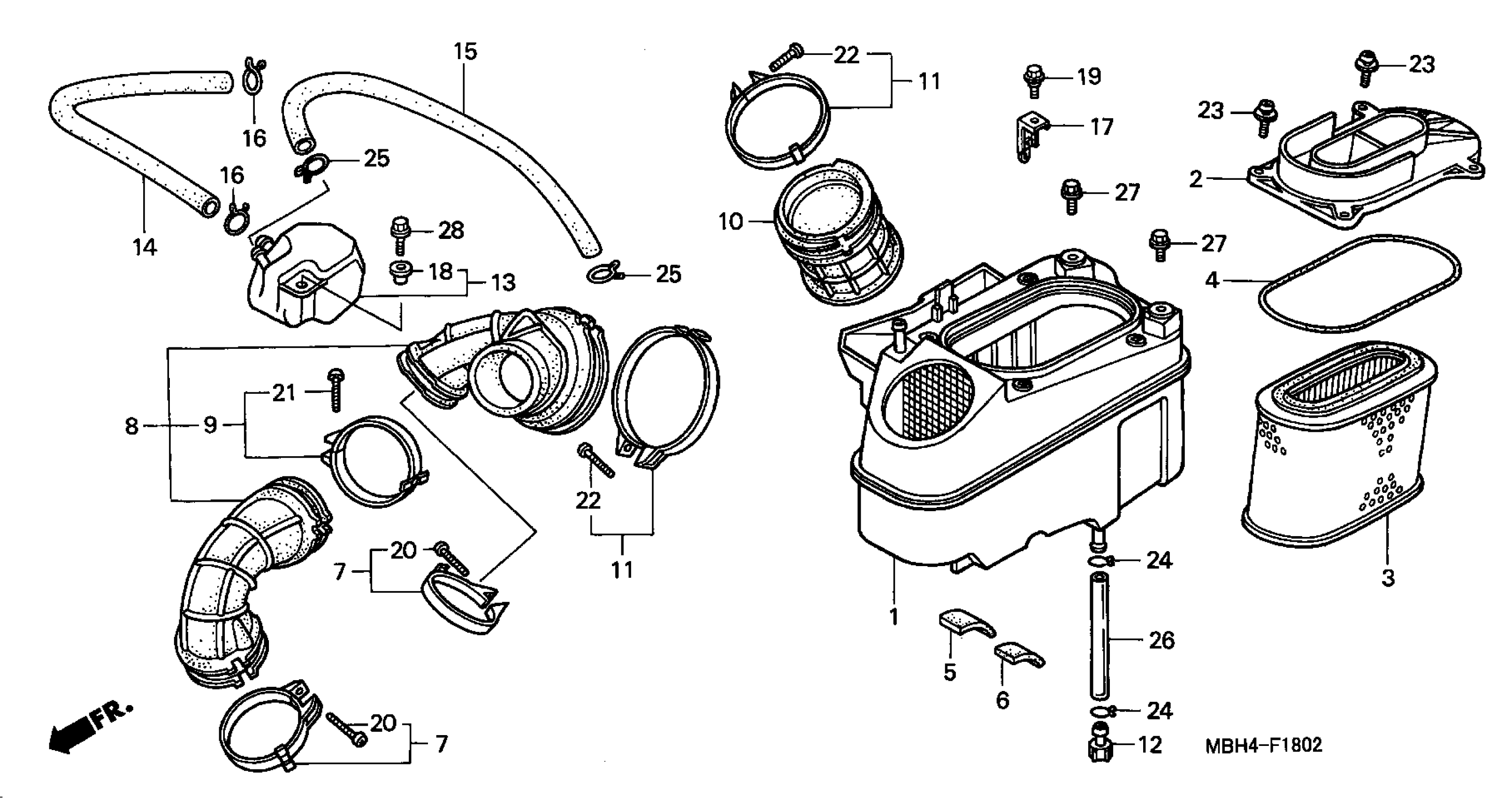

Honda VT1100C3A (02) SHADOW AERO, USA, VIN# 1HFSC390-2A400001 AIR CLEANER (2) Diagram

#

Description
Price

1

CASE SUB, AIR CLEANER

17210-MM8-020

$77.10

2

COVER, AIR CLEANER HOUSING

17212-MM8-010

$8.56

3

ELEMENT, AIR CLEANER

17215-MM8-020

$29.99

4

GASKET, AIR CLEANER HOUSING COVER

17217-MG8-300

$7.87

5

RUBBER A, CUSHION

17220-MAH-610

Unavailable

6

RUBBER B, CUSHION

17225-MAH-610

$2.25

7

BAND A, CONNECTING TUBE

17254-MAH-611

$11.91

8

CONNECTING TUBE A

17255-MM8-000

$51.64

9

BAND, AIR CLEANER CONNECTING TUBE (52) This part replaces 17256-MM8-000.

95018-52250

$5.14

10

TUBE B, AIR CLEANER CONNECTING

17258-MM8-300

$53.13

11

BAND C, CONNECTING TUBE

17259-MM8-000

$17.59

12

PLUG, BREATHER TUBE

17370-419-700

$3.74

13

TANK, STORAGE

17551-MM8-000

$46.61

14

TUBE A, BREATHER

17552-MCK-A00

$37.75

15

TUBE B, BREATHER

17553-MM8-000

Unavailable

16

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

17

STAY, FILLER NECK

19111-MM8-000

Unavailable

18

COLLAR, FR. FENDER

61105-KM7-910

$3.10

19

BOLT, FLANGE (6MM)

90116-ME9-000

$3.35

20

SCREW, PAN (4X18)

93500-04018-0G

$1.49

21

SCREW, PAN (4X20)

93500-04020-0G

$1.49

22

SCREW, PAN (4X25)

93500-04025-0G

$1.49

23

SCREW-WASHER (5X16)

93891-05016-07

$1.49

24

CLIP, TUBE (B12)

95002-02120

$2.00

25

CLIP, TUBE (B12.5)

95002-02130

$1.49

26

BULK HOSE, VINYL (7X11X8000) (7X11X260)

95003-19008-60M

Unavailable

27

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

28

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
