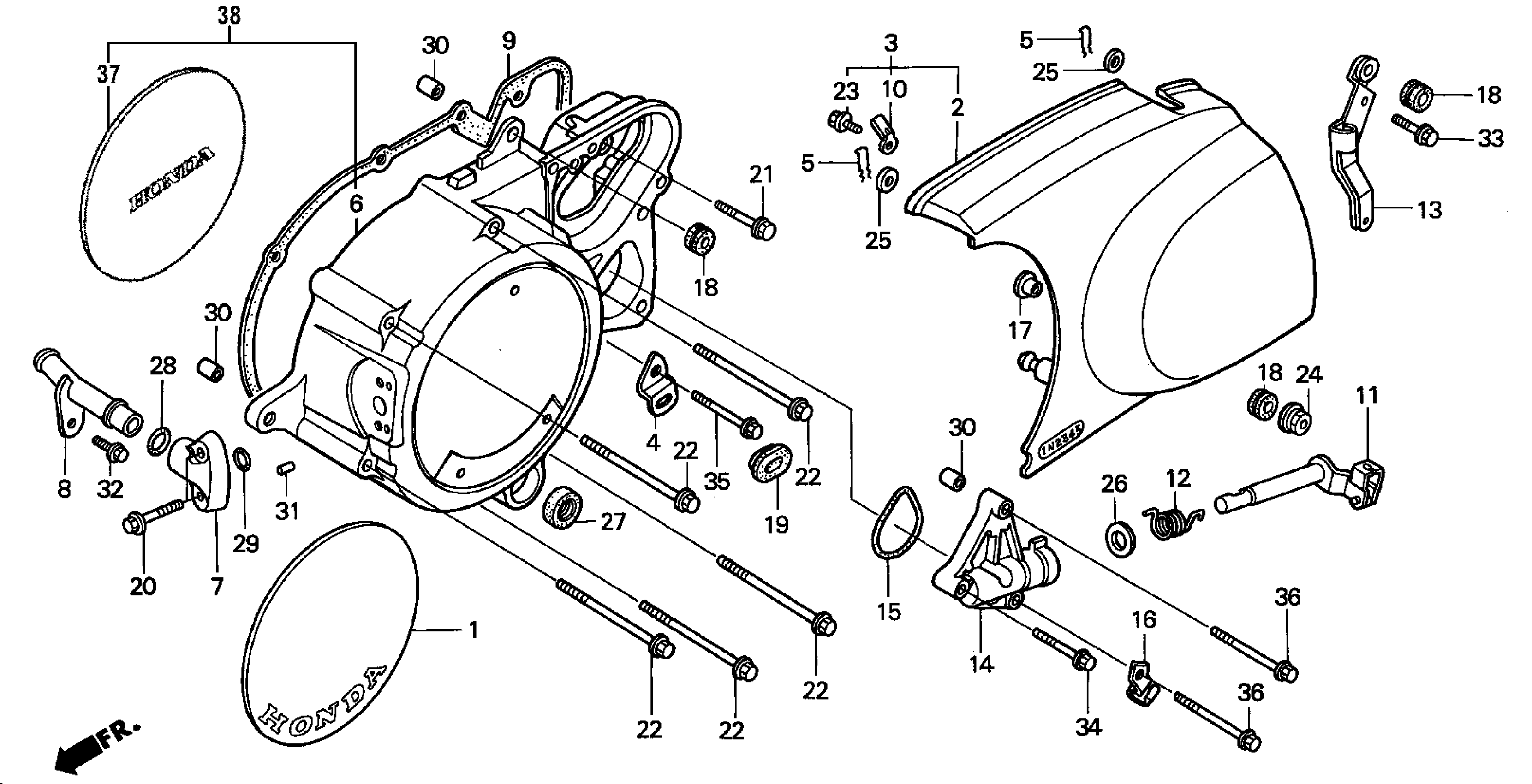

Honda VT1100C3A (01) SHADOW AERO, USA, VIN# 1HFSC390-1A300001 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

PLATE, EMBLEM

11335-MAH-A40

$50.01

2

COVER, L. RR.

11340-MAH-A40

$132.97

4

STAY, L. RR. COVER

11342-MM8-000

Unavailable

5

CLIP, L. RR. COVER

11356-MAH-000

$5.31

6

COVER SET, L. CRANKCASE

11360-MBC-305

Unavailable

6

COVER SET, L. CRANKCASE This part replaces 11361-MBC-000.

11360-MBC-305

Unavailable

9

GASKET, L. CRANKCASE COVER

11395-MAH-000

$12.52

11

LEVER, CLUTCH

22710-MAH-000

Unavailable

12

SPRING, CLUTCH LEVER

22815-MAH-000

Unavailable

13

RECEIVER, CLUTCH CABLE

22821-MAH-000

Unavailable

14

HOLDER, CLUTCH LIFTER

22860-MAH-000

Unavailable

15

GASKET, CLUTCH LIFTER HOLDER

22862-MAH-003

$17.59

16

CLAMP, CABLE

32111-MM8-000

Unavailable

17

COLLAR, CHAIN GUARD

52159-KB7-000

$6.05

18

CUSHION, AIR CLEANER

80105-MG9-000

$2.40

19

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

21

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$3.89

22

BOLT, FLANGE (6X80) (NSHF)

90004-GHB-790

$5.28

24

NUT, FLANGE (6MM)

90302-187-000

$2.21

25

WASHER (9.5MM)

90504-MAH-000

$2.19

26

WASHER, ADJUST HANDLE THRUST

90553-702-000

Unavailable

27

OIL SEAL (12.5X25X8) (ARAI)

91204-425-003

$6.32

30

PIN, DOWEL (8X14)

94301-08140

$2.62

33

BOLT, FLANGE (6X16)

95701-06016-00

$1.50

34

BOLT, FLANGE (6X35)

95801-06035-00

$0.99

35

BOLT, FLANGE (6X45)

95801-06045-00

$2.59

36

BOLT, FLANGE (6X60)

95801-06060-00

$2.07
