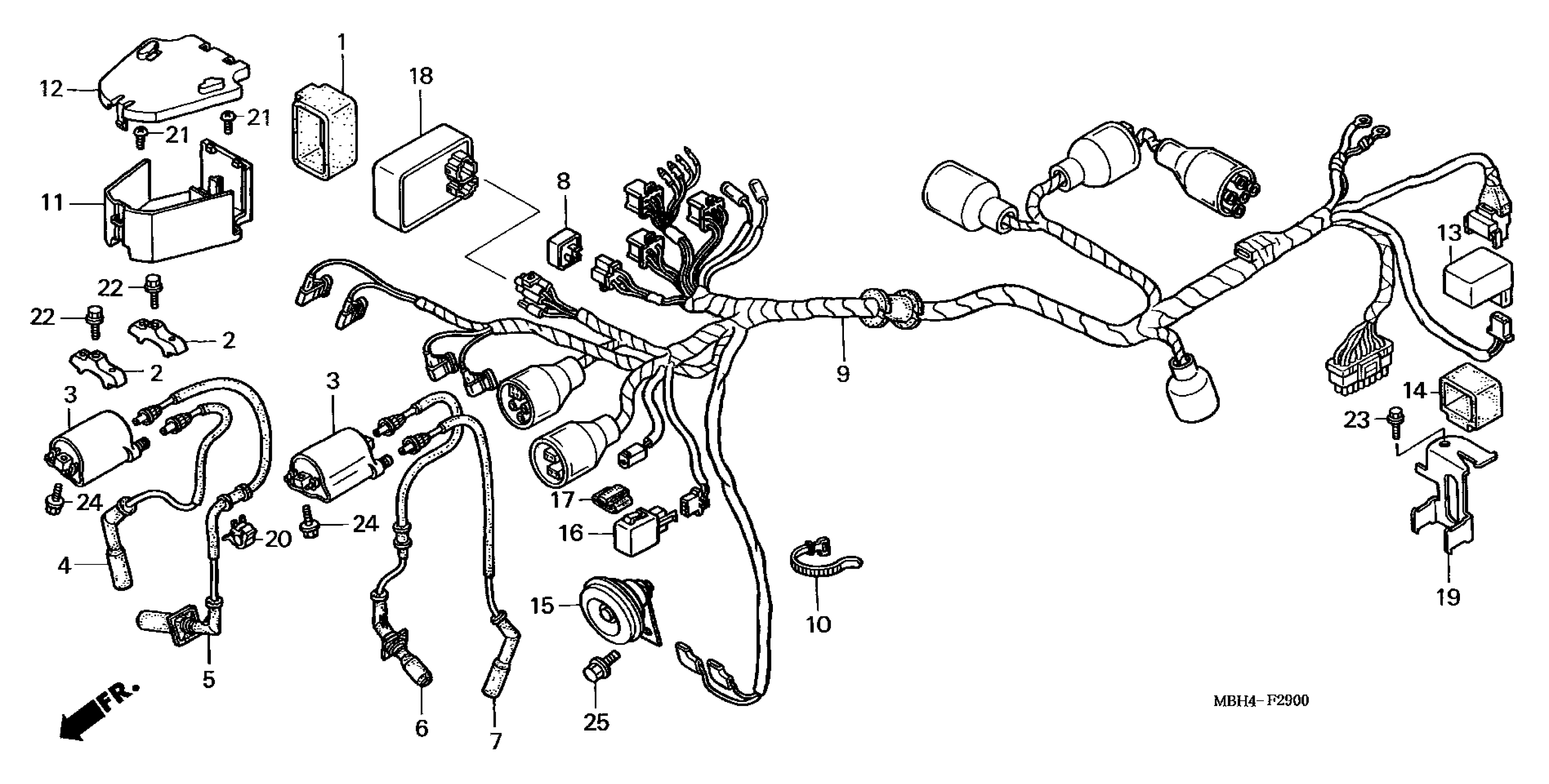

Honda VT1100C3A (00) SHADOW AERO, USA, VIN# 1HFSC390-YA200001 WIRE HARNESS (1) Diagram

RUBBER, IGNITION CONTROL MODULE

30401-GK8-000

$7.80

BRACKET, IGNITION COIL

30505-MM8-000

Unavailable

COIL, IGNITION (TEC)

30510-MM8-003

$112.08

CAP ASSY. 1, IGNITION

30751-MAH-003

$61.06

CAP ASSY. 2, IGNITION

30752-MAH-003

$69.60

CAP ASSY. 3, IGNITION

30753-MBH-003

Unavailable

CAP ASSY. 4, IGNITION

30754-MAH-003

$65.31

RECTIFIER, SILICON

31700-196-000

$26.42

WIRE HARNESS

32100-MBH-671

Unavailable

BAND B1, CABLE

32161-404-610

$2.23

BOX, FR. CONNECTOR

32510-MM8-000

Unavailable

COVER, FR. CONNECTOR BOX

32511-MM8-000

$15.51

RELAY, FUEL CUT (SHINDENGEN)

36100-MN4-008

$95.46

SUSPENSION, FUEL CUT RELAY

36101-MB1-000

$6.54

HORN (LOW)

38120-MAH-003

$81.10

RELAY, TURN SIGNAL (TATEISHI)

38301-MF5-771

$81.63

SUSPENSION, TURN SIGNAL RELAY

38306-MF5-770

$5.77

INDICATOR UNIT, TEMPERATURE

38710-MZ5-003

Unavailable

STAY, STARTER MAGNETIC SWITCH

50330-MAH-000

Unavailable

CLIP, CABLE (10MM)

90690-GHB-641

$2.18

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$1.49

SCREW, PAN (5X12)

93500-05012-0A

$1.49

SCREW, PAN (5X12) This part replaces 93500-05012-00.

93500-05012-0A

$1.49

SCREW, PAN (5X12) This part replaces 93500-05012-1A.

93500-05012-0A

$1.49

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

BOLT, FLANGE (8X12)

95701-08012-07

$1.72
