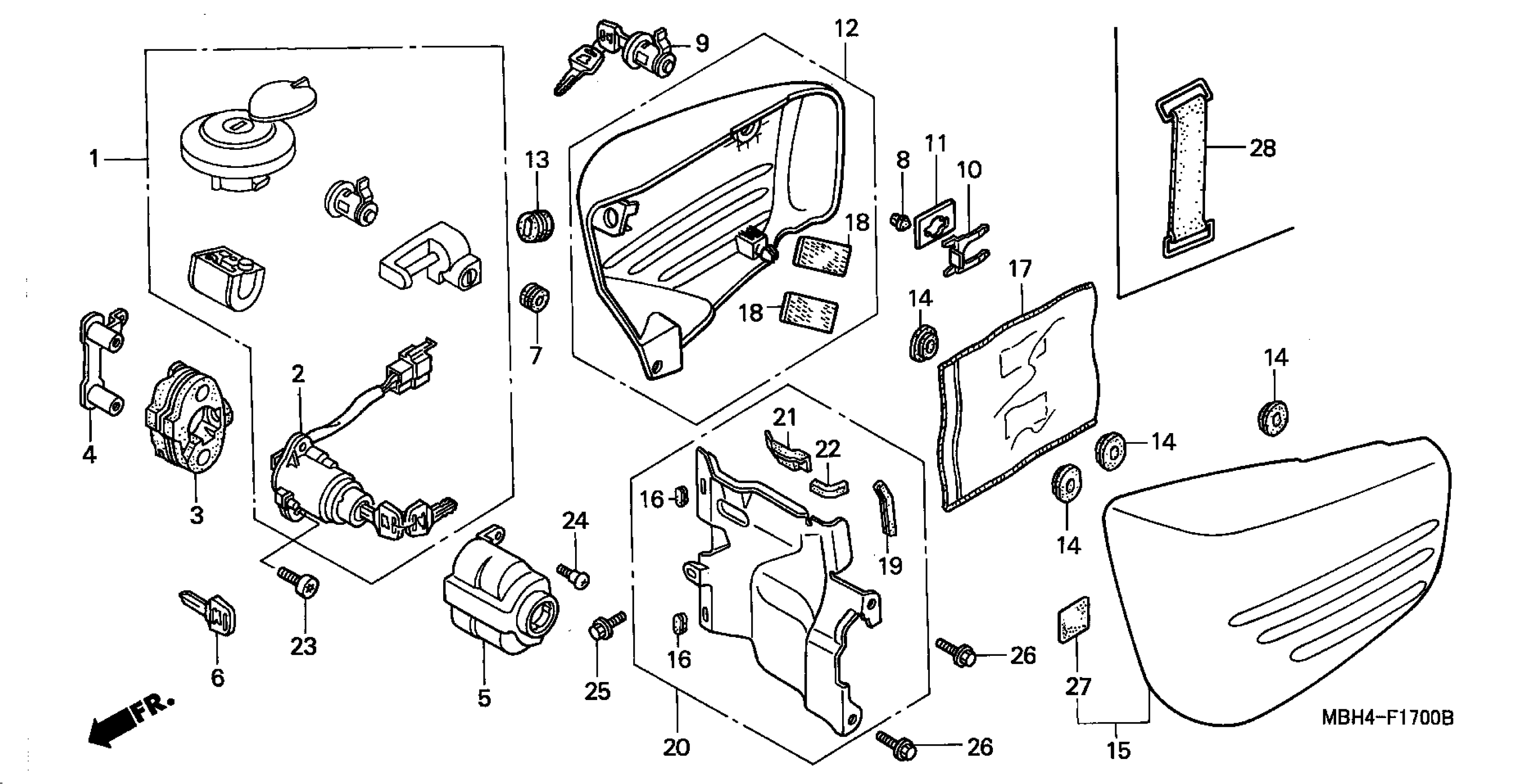

Honda VT1100C3A (00) SHADOW AERO, USA, VIN# 1HFSC390-YA200001 SIDE COVER Diagram

#

Description
Price

1

LOCK SET

35010-MBH-000

Unavailable

2

SWITCH ASSY., COMBINATION

35100-MAH-007

Unavailable

3

BASE, COMBINATION SWITCH

35102-MR1-000

$12.42

4

COLLAR, COMBINATION SWITCH

35103-MR1-000

Unavailable

5

COVER, COMBINATION SWITCH

35110-MR1-000

$26.09

6

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-MR1-770

$8.74

6

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-MR1-770

$8.74

7

GROMMET, SIDE COVER

50142-437-970

$2.48

8

CAP, STEP HOLDER END

50713-ML0-720

$2.85

9

LOCK ASSY., POCKET LID

64228-MT3-003

$29.09

10

SPRING, LOCK SETTING

77211-ME4-000

$6.52

11

WASHER, SEAT LOCK

77236-GZ5-000

$2.78

12

COVER, R. SIDE *NH1* (BLACK)

83500-MBH-000ZA

$218.94

13

RUBBER, SIDE COVER

83504-HB7-000

Unavailable

14

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.42

15

COVER, L. SIDE *NH1* (BLACK)

83600-MBH-000ZA

Unavailable

16

GROMMET, SIDE COVER

83602-MM8-000

$4.03

17

BAG, OWNER'S MANUAL

83642-MAH-A40

$2.77

18

TAPE, MAGIC (25X50) (FEMALE)

83643-355-300

$2.80

19

RUBBER, PROTECTOR

83701-MAH-300

Unavailable

20

COVER ASSY., CENTER

83702-MAH-000

$208.94

21

RUBBER C, PROTECTOR

83704-MAH-300

Unavailable

22

RUBBER D, PROTECTOR

83705-MAH-300

Unavailable

23

BOLT, TORX (6X14)

90107-KCR-000

$3.30

24

SCREW, RR. COVER

90114-GB6-920

$1.43

25

BOLT, FLANGE (6X10)

96001-06010-00

$1.48

26

BOLT, FLANGE (6X12)

96001-06012-02

$1.13

27

RUBBER, CUSHION

17235-KCT-690

Unavailable
