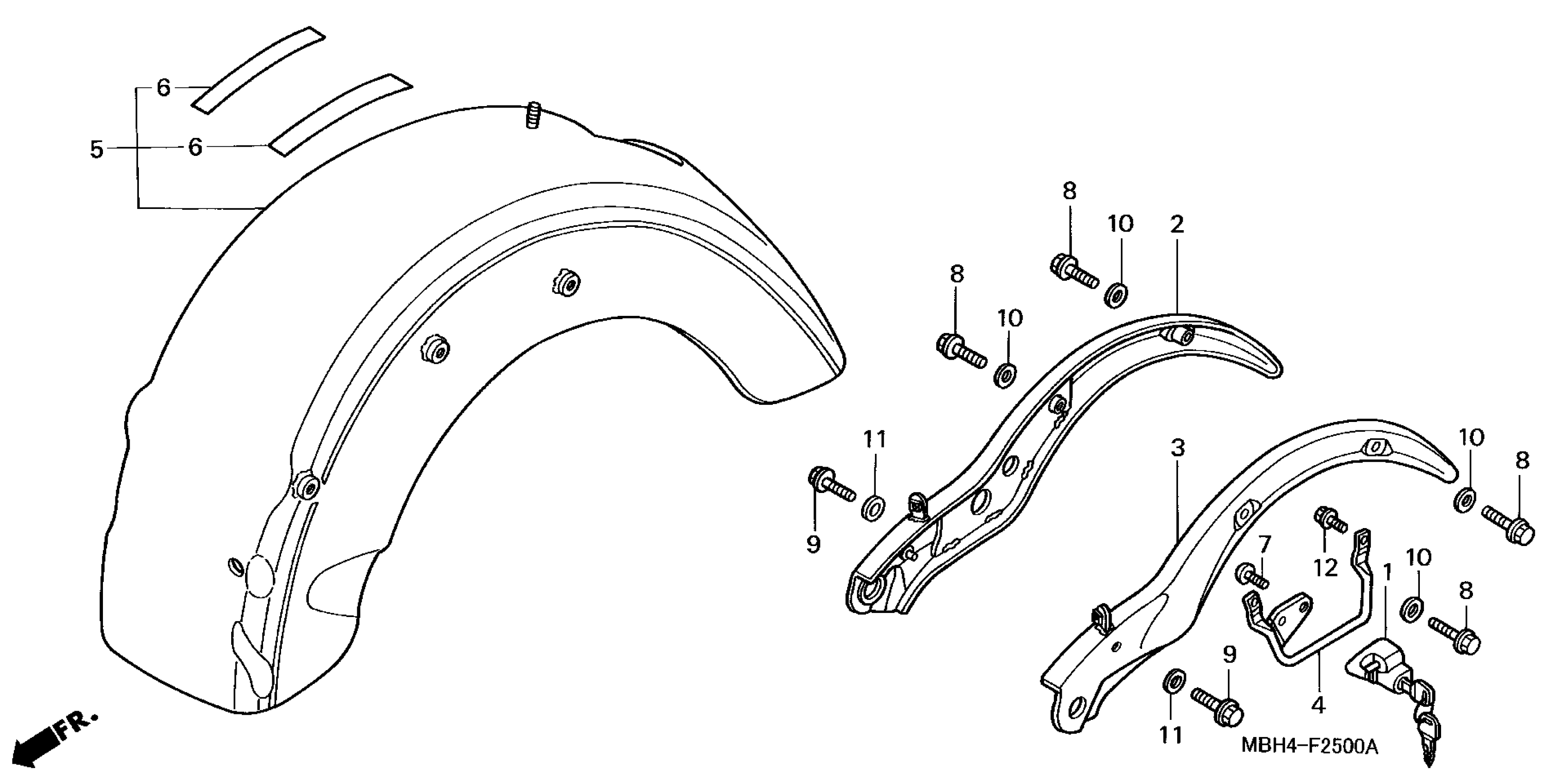

Honda VT1100C3A (00) SHADOW AERO, USA, VIN# 1HFSC390-YA200001 REAR FENDER Diagram

HOLDER ASSY., HELMET (COO) This part replaces 50710-GCN-003.

50710-GCN-305

$26.23

RAIL, R. RR. SIDE

77330-MBH-000

Unavailable

RAIL, L. RR. SIDE

77340-MBH-000

$231.20

WIRE, L. SIDE RAIL

77341-MBH-000

$12.67

FENDER SET, RR. *NH1* (BLACK)

80110-MBH-010ZA

Unavailable

FENDER SET, RR. (TYPE10) (WL) FENDER SET, RR. (TYPE9) (WL)

80110-MBH-A10ZA

Unavailable

FENDER SET, RR. (TYPE9) (WL) FENDER SET, RR. (TYPE8) (WL)

80110-MBH-A10ZC

Unavailable

FENDER SET, RR. (TYPE8) (WL)

80110-MBH-A10ZD

$1,339.48

PROTECTOR, RR. FENDER

80115-MAH-300

Unavailable

SCREW, PAN (6X12)

90106-MAV-000

$2.18

BOLT, SPECIAL FLANGE (8X35)

90107-ME7-000

$5.16

BOLT, SPECIAL FLANGE (10X40) This part replaces 90124-KR3-000.

90101-MAA-000

$11.41

WASHER, PLAIN (8MM)

90501-MM8-610

$2.33

WASHER, PLAIN (10MM)

90502-MM8-610

$2.92

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
