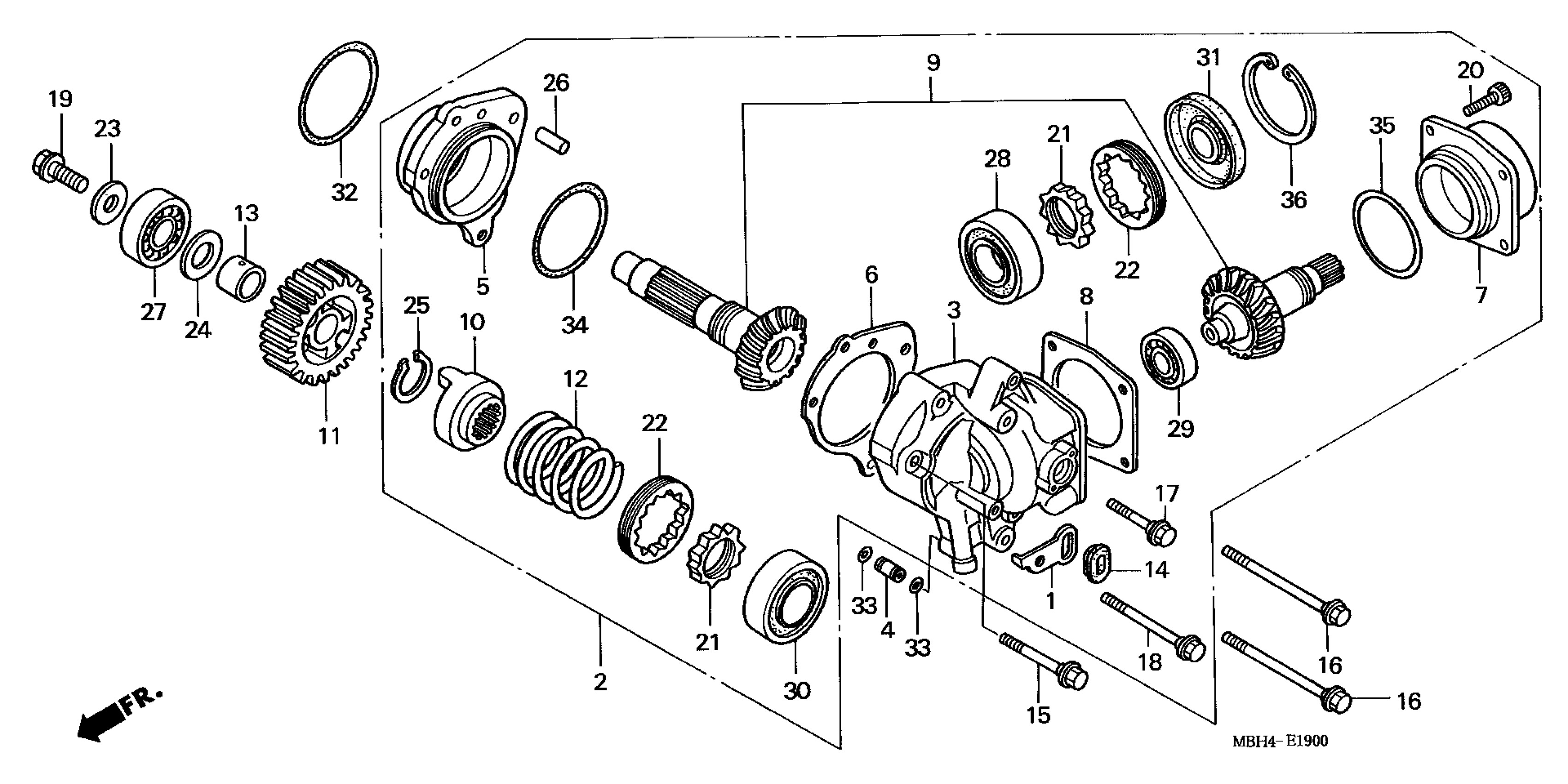

Honda VT1100C3A (00) SHADOW AERO, USA, VIN# 1HFSC390-YA200001 CROSS SHAFT Diagram

#

Description
Price

1

STAY, L. RR. COVER

11342-MAH-000

Unavailable

2

CASE ASSY., SIDE GEAR

21100-MBH-000

Unavailable

3

CASE, SIDE GEAR

21200-MBH-000

Unavailable

4

ORIFICE, SIDE GEAR CASE

21215-ME9-000

$9.61

5

HOLDER, FINAL DRIVESHAFT BEARING

21281-MM8-000

$140.95

6

SHIM, FINAL DRIVESHAFT (0.40)

21311-MG8-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (0.45)

21312-MG8-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (0.50)

21313-MG8-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (0.55)

21314-MG8-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (0.60)

21315-MG8-000

Unavailable

7

HOLDER, CROSS SHAFT BEARING

21371-MM8-680

Unavailable

8

SHIM, CROSS SHAFT (0.20)

21377-MB0-770

$23.13

8

SHIM, CROSS SHAFT (0.25)

21378-MB0-770

$22.13

8

SHIM, CROSS SHAFT (0.30)

21379-MB0-770

$22.13

8

SHIM, CROSS SHAFT (0.35)

21380-MB0-770

$22.13

8

SHIM, CROSS SHAFT (0.40)

21381-MB0-770

$25.25

8

SHIM, CROSS SHAFT (0.45)

21382-MB0-770

$25.25

8

SHIM, CROSS SHAFT (0.50)

21383-MB0-770

$25.25

8

SHIM, CROSS SHAFT (0.55)

21384-MB0-770

$25.25

8

SHIM, CROSS SHAFT (0.60)

21385-MB0-770

$25.25

9

SHAFT SET, CROSS

23200-MM8-000

$391.03

10

LIFTER, DAMPER

23721-MG8-000

$59.54

11

GEAR, DAMPER SHAFT (29T)

23726-MG8-000

$145.03

12

SPRING, DAMPER

23732-MAH-000

$43.30

13

COLLAR (22X25X18.5)

23733-MG8-000

$18.93

14

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

15

BOLT, UBS (8X60)

90029-MG8-000

Unavailable

16

BOLT, UBS (8X105)

90030-MG8-000

$8.25

17

BOLT, UBS (8X45)

90031-MG8-000

$4.36

18

BOLT, UBS (8X85)

90032-MG8-000

Unavailable

19

BOLT, SPECIAL (10MM)

90038-ME9-000

$4.72

20

BOLT, SOCKET (8X22)

90061-MB0-000

$5.44

21

NUT, LOCK (30MM)

90241-MB0-000

$21.10

22

NUT, LOCK (64MM)

90242-MB0-000

$32.52

23

WASHER (10MM)

90404-MG8-000

$8.97

24

WASHER, THRUST (20MM)

90451-426-000

$4.88

25

CIRCLIP (OUTER) (28MM)

90602-463-000

$3.64

26

PIN, DOWEL (10X24)

90701-MG8-000

$4.70

27

BEARING, RADIAL BALL (20X52X15) (TOYO)

91003-MG8-003

$40.08

28

BEARING, RADIAL BALL (5206) This part replaces 91008-300-008.

91012-MG7-003

$95.20

28

BEARING, RADIAL BALL (5206)

91012-MG7-003

$95.20

29

BEARING, BALL (6303) (KOYO)

91011-MB0-003

$30.64

29

BEARING, BALL (6303) (KOYO) This part replaces 91011-MB0-004.

91011-MB0-003

$30.64

30

BEARING, SPECIAL (30X62X25.8) (TOYO)

91012-MG8-003

$87.85

31

OIL SEAL (25X66X8.5) (ARAI)

91205-MG7-003

$18.78

32

O-RING (69.5X2.25) (ARAI)

91300-MG7-003

Unavailable

33

O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI) This part replaces 91307-422-000.

91313-MA6-005

$2.61

33

O-RING (4.8X1.9) (NOK)

91313-MA6-005

$2.61

34

O-RING (64.5X3) (ARAI)

91310-MG7-003

$9.98

35

O-RING (69.5X3) (ARAI)

91314-MG7-003

$9.24

36

CIRCLIP (INNER) (65MM)

94520-65120

$3.05
