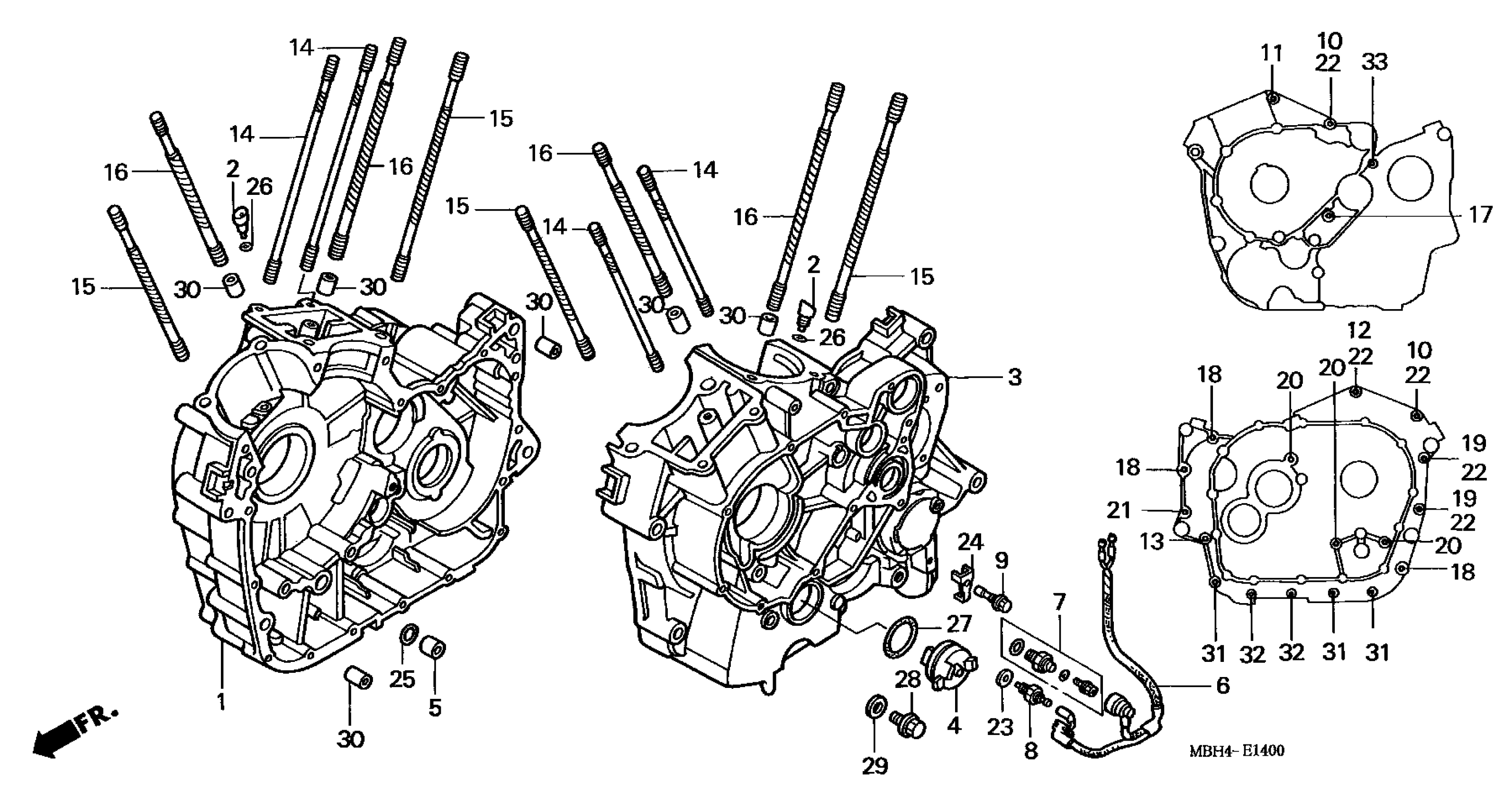

Honda VT1100C3A (00) SHADOW AERO, USA, VIN# 1HFSC390-YA200001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-MBC-000

Unavailable

2

JET, OIL

11140-MAA-A00

$11.46

3

CRANKCASE, L.

11200-MBC-000

Unavailable

4

PLUG, L. CRANKCASE

11211-MK7-770

$26.05

5

COLLAR, O-RING

15155-300-000

$3.22

6

SUB-HARNESS A

32101-MAH-000

Unavailable

7

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$38.10

8

SWITCH ASSY., NEUTRAL (TOYO)

35600-KE8-003

$16.98

9

BOLT, ORIFICE (1.6MM)

90002-MG8-000

$16.39

10

BOLT, FLANGE (8X125)

90005-MG8-000

Unavailable

11

BOLT, SPECIAL (6X12)

90006-MAH-000

$3.70

12

BOLT, FLANGE (8X136)

90006-MG8-000

$6.41

13

BOLT, SPECIAL FLANGE (10X107)

90009-MAH-000

$14.93

14

BOLT, STUD (8X259)

90011-MAH-000

$10.58

15

BOLT, STUD (10X269)

90012-MBC-003

$14.47

16

BOLT, STUD (10X25)

90013-MBC-003

$17.16

17

BOLT, UBS (8X110)

90030-MS9-750

$9.64

18

BOLT, FLANGE (8X45)

90052-MG8-000

$4.17

19

BOLT, FLANGE (8X80)

90053-MG8-000

$5.19

20

BOLT, FLANGE (8X80)

90053-MM8-680

Unavailable

21

BOLT, FLANGE (8X100)

90054-MG8-000

$6.39

22

WASHER, SEALING (8MM)

90441-MG8-000

$2.07

23

WASHER, NEUTRAL

90443-MJ6-000

$1.75

24

PLATE, SEALING (6MM)

90444-MG8-000

Unavailable

25

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.61

25

O-RING (14.8X2.4) (NOK)

91356-MA6-005

$1.70

26

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.80

27

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.44

28

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.32

29

WASHER, DRAIN PLUG (14MM)

94109-14000

$0.57

30

PIN, DOWEL (14X20)

94301-14200

$2.25

31

BOLT, FLANGE (6X50)

95701-06050-07

$1.26

32

BOLT, FLANGE (6X90)

95701-06090-07

$2.17

33

BOLT, FLANGE (6X100)

96001-06100-07

$1.96
