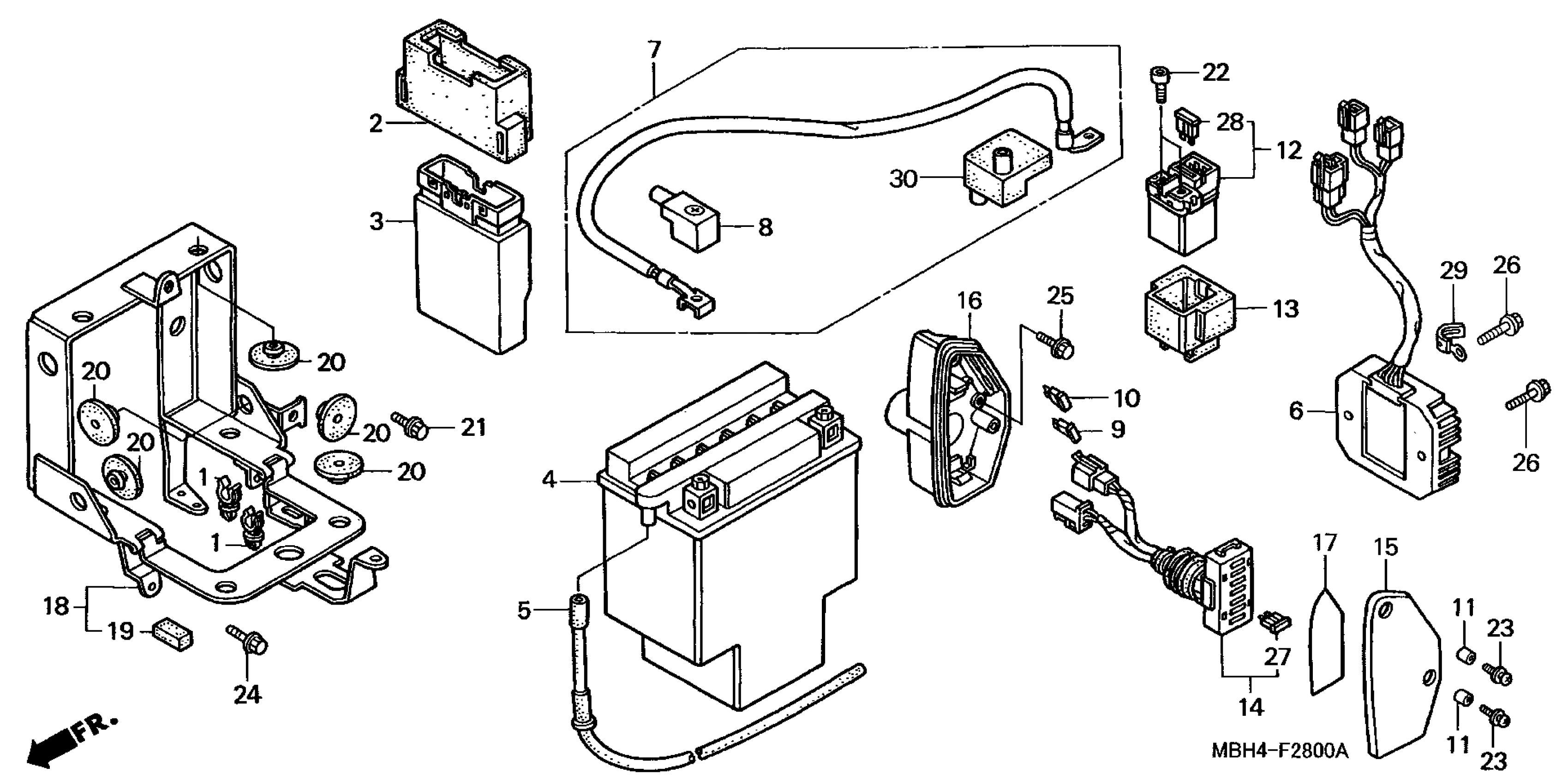

Honda VT1100C3A (00) SHADOW AERO, USA, VIN# 1HFSC390-YA200001 BATTERY (1) Diagram

CLIP, THROTTLE WIRE

17938-SE0-941

$6.80

RUBBER, SPARK UNIT

30405-MT6-000

Unavailable

MODULE, IGNITION CONTROL (CDI) This part replaces 30410-MBH-660.

30410-MBH-671

Unavailable

MODULE, IGNITION CONTROL (CDI)

30410-MBH-671

Unavailable

BATTERY (HYB16A-A) This part replaces 31500-ME9-677.

31500-ME9-677AH

Unavailable

TUBE, BATTERY BREATHER

31502-MAH-010

Unavailable

RECTIFIER ASSY., REGULATOR

31600-MAA-A01

$92.23

RECTIFIER ASSY., REGULATOR This part replaces 31600-MAA-A10.

31600-MAA-A01

$92.23

CABLE, BATTERY STARTER

32401-MBC-000

Unavailable

COVER, BATTERY TERMINAL

32412-MAH-000

Unavailable

FUSE, BLADE (10A) This part replaces 32503-SM4-003.

98200-31000

$1.49

FUSE, BLADE (10A)

98200-31000

$1.49

FUSE, BLADE (30A) This part replaces 32507-SM4-003.

98200-33000

$1.49

FUSE, BLADE (30A)

98200-33000

$1.49

COLLAR, FR. TURN SIGNAL

33609-GK4-620

$2.33

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-MT4-000.

35850-MT4-003

$78.00

RUBBER, SHOCK

35856-KBG-007

$10.43

PLATE ASSY., FUSE

38200-MBH-003

Unavailable

COVER, FUSE BOX

38210-MM8-000

Unavailable

PLATE, FUSE BOX

38211-MM8-000

Unavailable

LABEL, FUSE

38215-MBH-670

Unavailable

BOX, BATTERY

50320-MAH-A80

Unavailable

RUBBER

61313-GJ1-000

$5.20

RUBBER, BATTERY BOX

83618-323-000

$2.47

BOLT, SPECIAL (6X12)

90014-PC0-000

$6.26

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

SCREW-WASHER (5X12)

93891-05012-07

$1.49

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

BOLT, FLANGE (6X28)

95701-06028-08

$2.08

FUSE, BLADE (10A)

98200-31000

$1.49

FUSE, BLADE (30A)

98200-33000

$1.49

CLIP, WIRE HARNESS

91405-MG1-000

$2.31

COVER, STARTER MAGNETIC TERMINAL

32406-MZ5-000

$5.59
