Description

Price

1

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.72

3

RUBBER, FUEL PUMP

16701-MAA-000

$20.06

4

BAND, FUEL PUMP (NOT AVAILABLE)

16703-MM8-000

Unavailable

5

PUMP, FUEL (MSDS) This part replaces 16710-MAH-751.

16710-MAH-753

$169.18

5

PUMP, FUEL (MSDS) This part replaces 16710-MAH-752.

16710-MAH-753

$169.18

5

PUMP, FUEL (MSDS)

16710-MAH-753

$169.18

6

FILTER, FUEL

16900-MG8-003

$23.49

7

CUSHION, FUEL STRAINER

16905-MG7-000

$7.95

8

PROTECTOR

16911-MAH-300

$6.49

9

PETCOCK ASSY. This part replaces 16950-MAH-003.

16950-MAH-023

$103.68

9

PETCOCK ASSY. This part replaces 16950-MAH-013.

16950-MAH-023

$103.68

9

PETCOCK ASSY.

16950-MAH-023

$103.68

10

TUBE B, FUEL

16952-MAH-000

Unavailable

11

SCREEN SET, FUEL STRAINER

16952-MAH-003

$36.05

12

TUBE C, FUEL

16953-MAH-000

$11.84

13

TUBE D, FUEL

16954-MAH-000

$16.58

14

TUBE A, FUEL

16955-MAH-000

$26.55

15

O-RING

16958-KM9-005

$3.89

16

JOINT, FUEL TUBE

16961-MK7-000

$21.68

17

LEVER, PETCOCK

16963-MY5-610

$14.29

18

JOINT, FUEL TUBE

16966-MR1-000

$7.57

20

COLLAR, FUEL TANK MOUNTING

17515-MAH-000

$2.95

21

TUBE, L. CARBURETOR FUEL

17515-MG8-000

$11.70

22

TANK SET, FUEL NH1 This part replaces 17520-MAH-A80ZD.

17520-MCK-G00ZA

Unavailable

23

RUBBER, FR. FUEL TANK

17611-MM8-000

$29.62

24

CUSHION, RR. FUEL TANK

17613-MM8-000

$39.01

25

CAP, FUEL FILLER This part replaces 17620-KR3-751.

17620-KR3-753

$70.93

26

RUBBER, RADIATOR MOUNTING

19051-GE2-000

$4.98

27

COLLAR, SETTING

61104-422-000

$6.91

28

SCREW, OVAL (5X12)

90111-MZ5-000

$3.85

29

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$4.07

30

WASHER, TANK MOUNTING

90455-896-700

$3.13

31

CLAMP, CANISTER HOSE

90682-SA0-671

$7.67

32

BULK HOSE, FUEL (5.5X3000) (5.3X65)

95001-55003-60M

$47.32

34

CLIP, TUBE (B10)

95002-02100

$1.90

35

CLIP, TUBE (B12)

95002-02120

$2.00

36

CLAMP, TUBE (D12)

95002-41200-08

$2.34

37

CLIP, TUBE (C9)

95002-50000

$1.49

39

BULK HOSE, VACUUM (5X3000) (5X300)

95005-50003-30M

$20.85

40

BOLT, FLANGE (8X35)

95701-08035-07

$1.49

41

BOLT, FLANGE (6X25)

96001-06025-07

$1.49

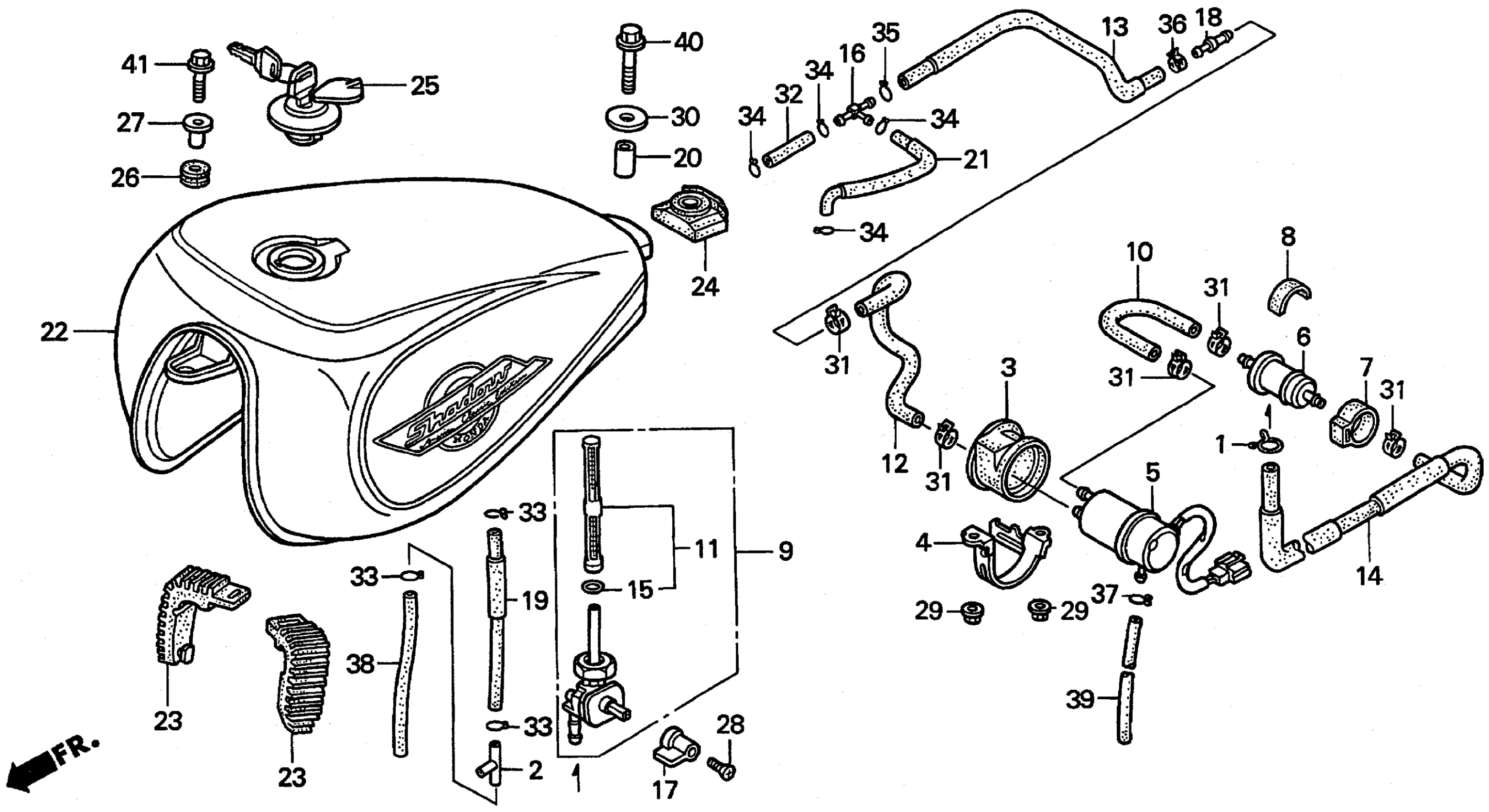

Honda VT1100C2AC (99) SHADOW ACE, USA, VIN# 1HFSC321-XA400000 FUEL TANK Diagram

CLIP, OIL DRAIN TUBE

RUBBER, FUEL PUMP

BAND, FUEL PUMP (NOT AVAILABLE)

PUMP, FUEL (MSDS) This part replaces 16710-MAH-751.

PUMP, FUEL (MSDS) This part replaces 16710-MAH-752.

PUMP, FUEL (MSDS)

FILTER, FUEL

CUSHION, FUEL STRAINER

PROTECTOR

PETCOCK ASSY. This part replaces 16950-MAH-003.

PETCOCK ASSY. This part replaces 16950-MAH-013.

PETCOCK ASSY.

TUBE B, FUEL

SCREEN SET, FUEL STRAINER

TUBE C, FUEL

TUBE D, FUEL

TUBE A, FUEL

O-RING

JOINT, FUEL TUBE

LEVER, PETCOCK

JOINT, FUEL TUBE

COLLAR, FUEL TANK MOUNTING

TUBE, L. CARBURETOR FUEL

TANK SET, FUEL *NH1* This part replaces 17520-MAH-A80ZD.

RUBBER, FR. FUEL TANK

CUSHION, RR. FUEL TANK

CAP, FUEL FILLER This part replaces 17620-KR3-751.

RUBBER, RADIATOR MOUNTING

COLLAR, SETTING

SCREW, OVAL (5X12)

NUT, U (6MM) (FUSE RASHI)

WASHER, TANK MOUNTING

CLAMP, CANISTER HOSE

BULK HOSE, FUEL (5.5X3000) (5.3X65)

CLIP, TUBE (B10)

CLIP, TUBE (B12)

CLAMP, TUBE (D12)

CLIP, TUBE (C9)

BULK HOSE, VACUUM (5X3000) (5X300)

BOLT, FLANGE (8X35)

BOLT, FLANGE (6X25)

TANK SET, FUEL NH1 This part replaces 17520-MAH-A80ZD.
