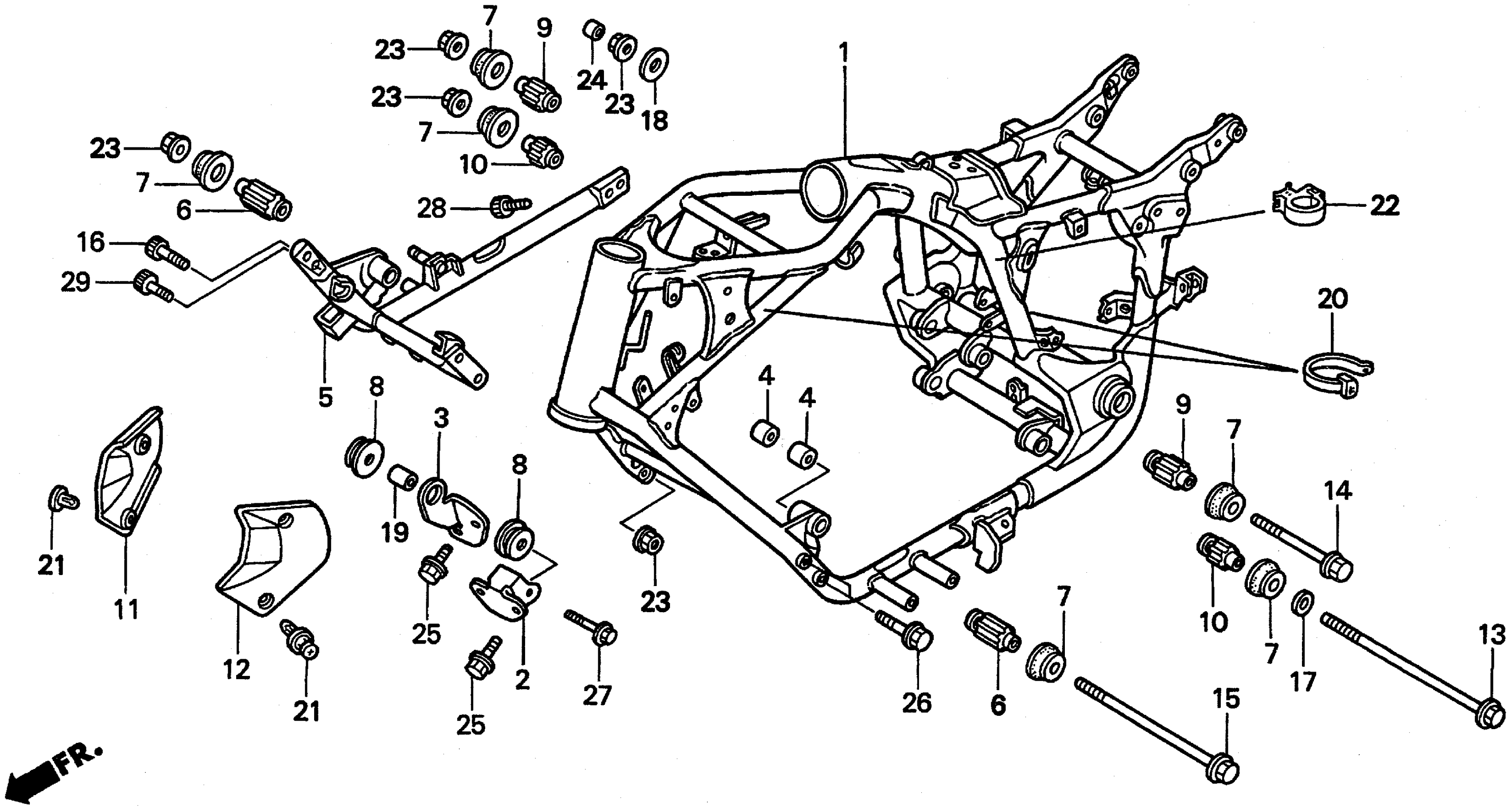

Honda VT1100C2AC (99) SHADOW ACE, USA, VIN# 1HFSC321-XA400000 FRAME Diagram

#

Description
Price

1

FRAME *NH1* (BLACK) (SOURCE: VINTAGE PARTS INC.)

50100-MAH-A80ZA

Unavailable

2

BRACKET A, FR. ENGINE HANGER

50135-MAH-000

$25.16

3

BRACKET B, FR. ENGINE HANGER

50136-MAH-000

$25.31

4

COLLAR, ENGINE HANGER

50140-MY2-700

$17.59

5

SUB-FRAME *NH1* (BLACK) (SOURCE: VINTAGE PARTS INC.)

50174-MAH-L40ZA

Unavailable

6

RUBBER, MOUNTING A

50201-MAH-000

$18.43

7

RUBBER, MOUNTING C

50203-MAH-000

$16.44

8

RUBBER C, MOUNTING

50203-MB0-010

$25.10

9

RUBBER, MOUNTING D

50204-MAH-000

$14.20

10

RUBBER, MOUNTING E

50205-MAH-000

$13.59

11

COVER, R. FR. SIDE

63500-MAH-000

Unavailable

12

COVER, L. FR. SIDE

63501-MAH-000

$29.85

13

BOLT, FLANGE (10X312)

90101-MAH-000

$30.61

14

BOLT, FLANGE (10X198)

90103-MAH-000

$19.08

15

BOLT, ENGINE HANGER (10X285) This part replaces 90104-KV3-830.

90105-MW0-000

$25.75

15

BOLT, ENGINE HANGER (10X285)

90105-MW0-000

$25.75

16

BOLT, SOCKET (10X45)

90181-MN0-000

$4.81

17

WASHER, SPECIAL (11X21X2.3)

90438-463-000

$2.53

18

WASHER (10.3X25)

90501-MB7-610

$5.41

19

COLLAR, ENGINE MOUNTING

90503-MAH-000

$4.59

20

BAND, WIRE HARNESS

90650-MA6-720

$4.15

21

CLIP, BODY COVER

90683-GR1-003

$2.92

22

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

23

NUT, FLANGE (10MM)

90303-428-900

$3.35

23

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.35

24

BULK HOSE, VACUUM (8X1000) (8X7)

95005-80001-20M

$23.91

25

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

26

BOLT, FLANGE (8X70)

95701-08070-07

$1.49

27

BOLT, FLANGE (8X40)

95801-08040-07

$1.49

28

BOLT, SOCKET (10X25)

96600-10025-07

$3.25

29

BOLT, SOCKET (10X35)

96700-10035-17

$9.38
