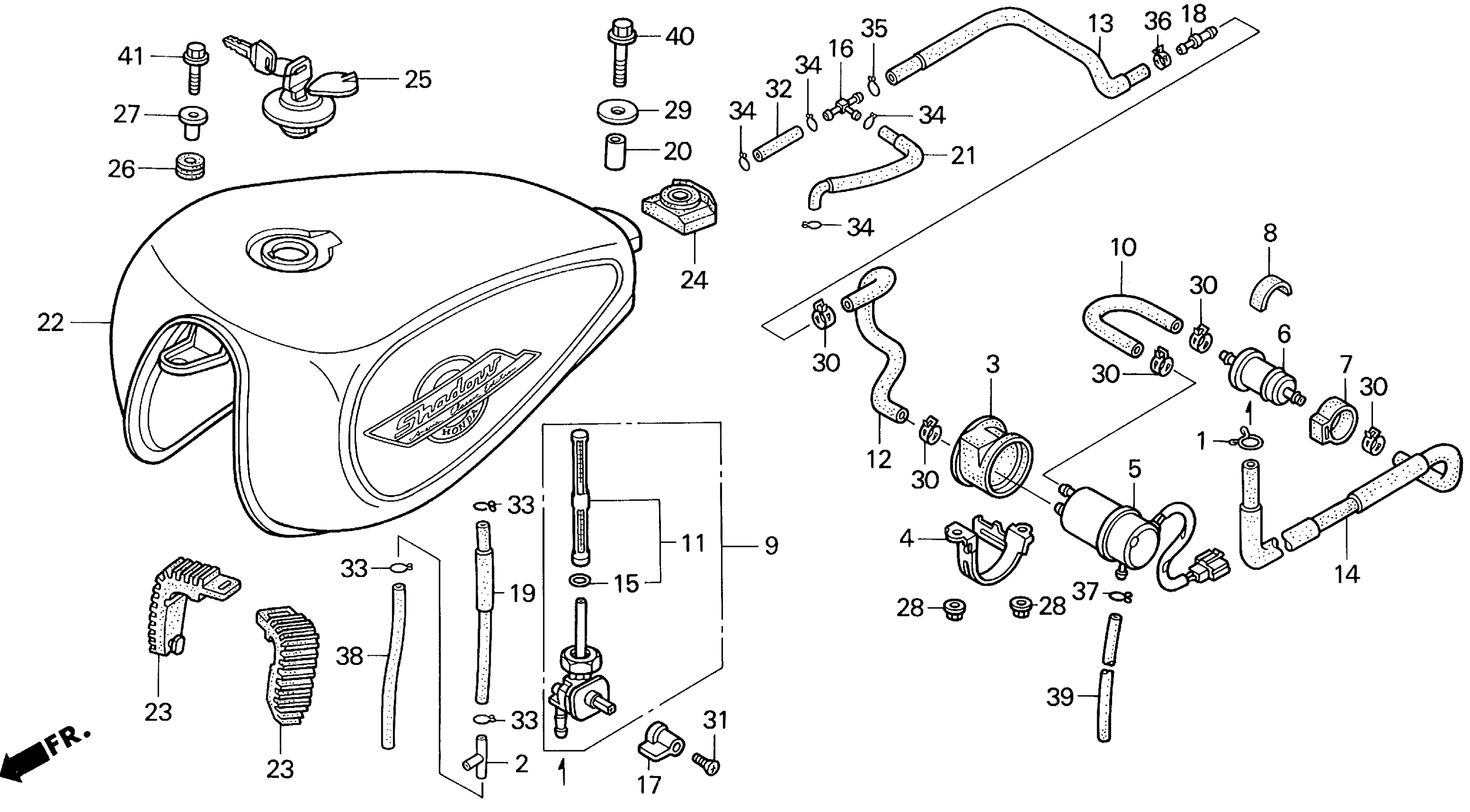

Honda VT1100C2AC (02) SHADOW SABRE, 97, VIN# 1HFSC324-VA240001 1100C/C2FUEL TANK 95-97 Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15771-KV6-000

Unavailable

3

RUBBER, FUEL PUMP

16701-MAA-000

Unavailable

4

BAND, FUEL PUMP (NOT AVAILABLE)

16703-MM8-000

Unavailable

5

PUMP, FUEL (MSDS) This part replaces 16710-MAH-751.

16710-MAH-753

Unavailable

5

PUMP, FUEL (MSDS) This part replaces 16710-MAH-752.

16710-MAH-753

Unavailable

5

PUMP, FUEL (MSDS)

16710-MAH-753

Unavailable

6

FILTER, FUEL

16900-MG8-003

$21.57

7

CUSHION, FUEL STRAINER

16905-MG7-000

$7.58

8

PROTECTOR

16911-MAH-300

$6.00

9

PETCOCK ASSY. This part replaces 16950-MAH-003.

16950-MAH-023

$95.20

9

PETCOCK ASSY. This part replaces 16950-MAH-013.

16950-MAH-023

$95.20

9

PETCOCK ASSY.

16950-MAH-023

$95.20

10

TUBE B, FUEL

16952-MAH-000

Unavailable

11

SCREEN SET, FUEL STRAINER

16952-MAH-003

$33.09

12

TUBE C, FUEL

16953-MAH-000

Unavailable

13

TUBE D, FUEL

16954-MAH-000

$15.22

14

TUBE A, FUEL

16955-MAH-000

$24.37

15

O-RING

16958-KM9-005

$3.71

16

JOINT, FUEL TUBE

16961-MK7-000

$19.90

17

LEVER, PETCOCK

16963-MY5-610

$12.30

18

JOINT, FUEL TUBE

16966-MR1-000

$7.23

20

COLLAR, FUEL TANK MOUNTING

17515-MAH-000

$2.82

21

TUBE, L. CARBURETOR FUEL

17515-MG8-000

$10.74

22

TANK SET, FUEL *NH1* This part replaces 17520-MAH-A00ZF.

17520-MCK-G00ZA

Unavailable

22

TANK SET, FUEL *NH1* This part replaces 17520-MAH-A40ZG.

17520-MCK-G00ZA

Unavailable

22

TANK SET, FUEL *NH1* This part replaces 17520-MAH-A80ZD.

17520-MCK-G00ZA

Unavailable

22

TANK SET, FUEL (TYPE17) (WL) (SOURCE: VINTAGE PARTS INC.)

17520-MAH-A00ZD

Unavailable

23

RUBBER, FR. FUEL TANK

17611-MM8-000

$23.93

24

CUSHION, RR. FUEL TANK

17613-MM8-000

$34.77

25

CAP, FUEL FILLER This part replaces 17620-KR3-751.

17620-KR3-753

$65.11

26

RUBBER, RADIATOR MOUNTING

19051-GE2-000

$4.75

27

COLLAR, SETTING

61104-422-000

$6.60

28

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$3.89

29

WASHER, TANK MOUNTING

90455-896-700

$2.90

30

CLAMP, CANISTER HOSE

90682-SA0-671

$7.32

31

SCREW, OVAL (5X12)

90111-MZ5-000

$3.68

32

BULK HOSE, FUEL (5.5X3000) (5.3X65)

95001-55003-60M

$56.68

34

CLIP, TUBE (B10)

95002-02100

$1.75

35

CLIP, TUBE (B12)

95002-02120

$1.79

36

CLAMP, TUBE (D12)

95002-41200-08

$2.31

37

CLIP, TUBE (C9)

95002-50000

$1.16

39

BULK HOSE, VACUUM (5X3000) (5X300)

95005-50003-30M

Unavailable

40

BOLT, FLANGE (8X35)

95701-08035-07

$1.29

41

BOLT, FLANGE (6X25)

96001-06025-07

$1.24
