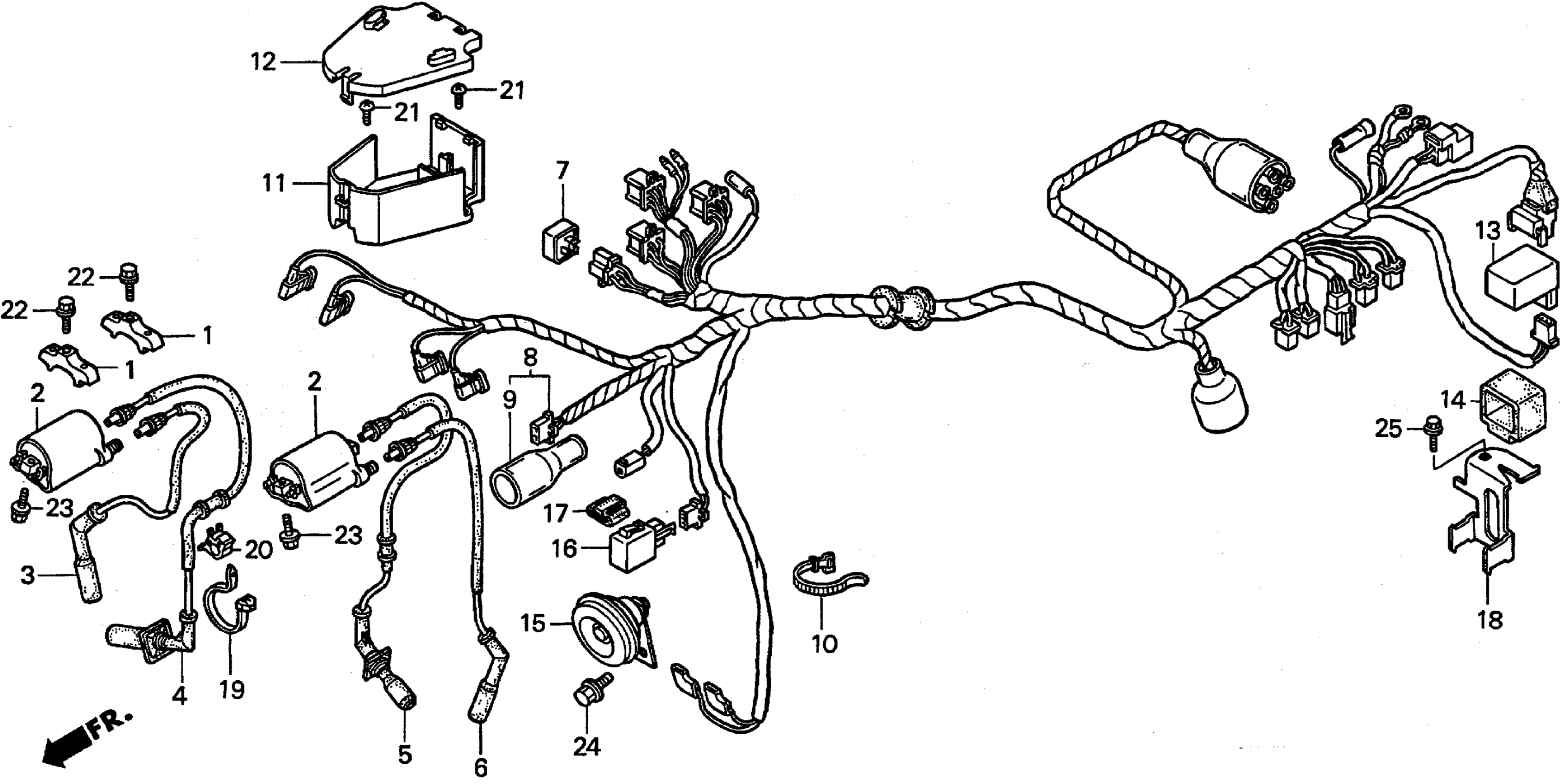

Honda VT1100C2A (99) SHADOW ACE, USA, VIN# 1HFSC320-XA400000 WIRE HARNESS Diagram

#

Description
Price

1

BRACKET, IGNITION COIL

30505-MM8-000

Unavailable

2

COIL, IGNITION (TEC)

30510-MM8-003

$100.62

3

CAP ASSY. 1, IGNITION

30751-MAH-003

$54.42

4

CAP ASSY. 2, IGNITION

30752-MAH-003

$67.25

5

CAP ASSY. 3, IGNITION

30753-MM8-770

$60.06

6

CAP ASSY. 4, IGNITION

30754-MAH-003

$58.20

7

RECTIFIER, SILICON

31700-196-000

$23.71

8

WIRE HARNESS

32100-MAA-A00

Unavailable

9

COVER, WIRE CONNECTOR

32108-MM8-680

Unavailable

10

BAND B1, WIRE

32161-404-610

$2.13

11

BOX, FR. CONNECTOR

32510-MM8-000

Unavailable

12

COVER, FR. CONNECTOR BOX

32511-MM8-000

$13.71

13

RELAY, FUEL CUT (SHINDENGEN)

36100-MN4-008

$85.69

14

SUSPENSION, FUEL CUT RELAY

36101-MB1-000

$6.08

15

HORN (LOW)

38120-MAH-003

Unavailable

16

RELAY, TURN SIGNAL (TATEISHI)

38301-MF5-771

$73.32

17

SUSPENSION, TURN SIGNAL RELAY

38306-MF5-770

$5.26

18

STAY, STARTER MAGNETIC SWITCH

50330-MAH-000

Unavailable

19

CLIP, CABLE (25MM)

90690-GHB-671

$1.99

20

CLIP, CABLE (10MM)

90690-GHB-641

$1.99

21

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$0.83

21

SCREW, PAN (5X12)

93500-05012-0A

$0.83

21

SCREW, PAN (5X12) This part replaces 93500-05012-00.

93500-05012-0A

$0.83

21

SCREW, PAN (5X12) This part replaces 93500-05012-1A.

93500-05012-0A

$0.83

22

BOLT, FLANGE (6X12)

95701-06012-08

$1.48

23

BOLT, FLANGE (6X20)

95701-06020-08

$0.35

24

BOLT, FLANGE (8X12)

95701-08012-07

$1.64

25

BOLT, FLANGE (6X16)

95701-06016-08

$1.32
