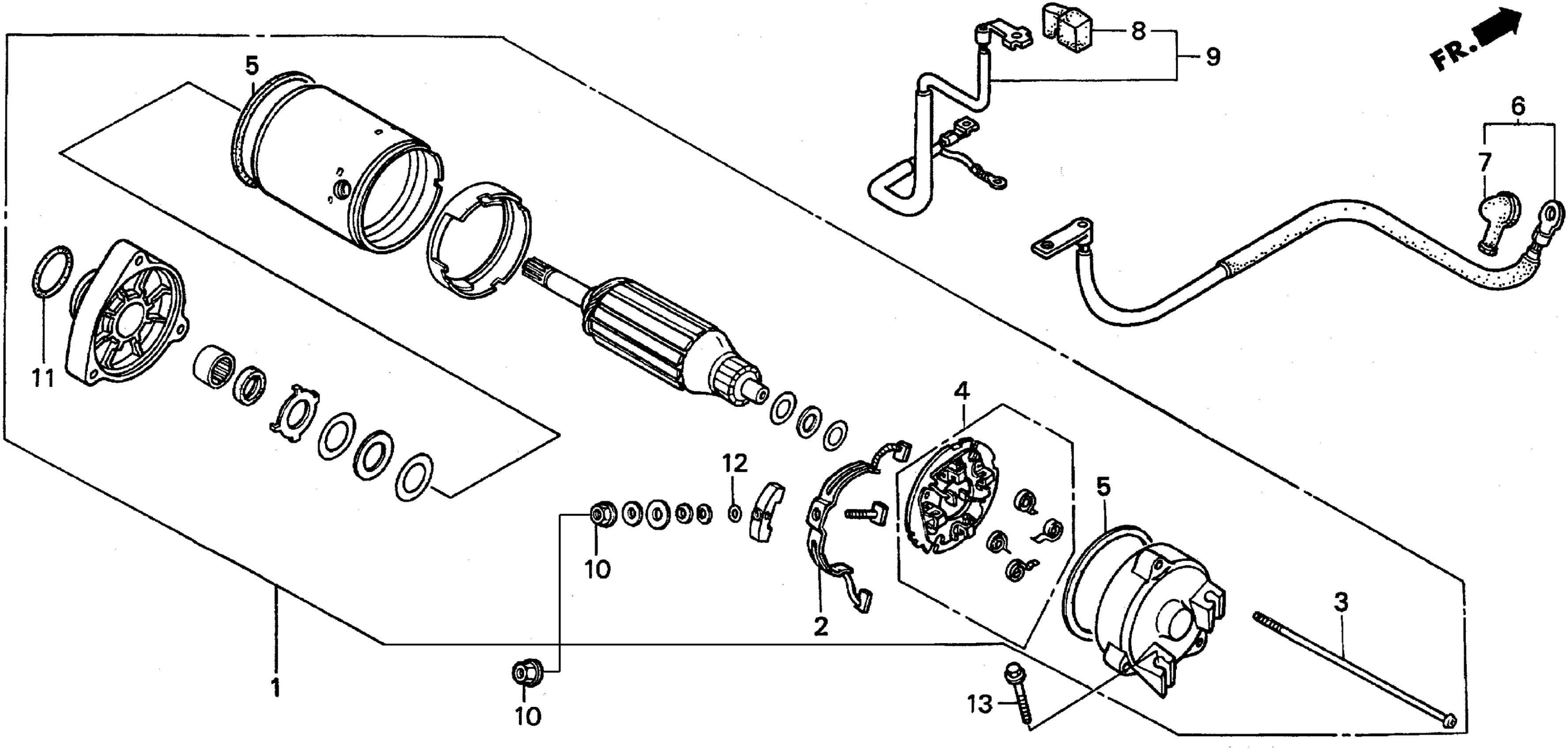

Honda VT1100C2A (99) SHADOW ACE, USA, VIN# 1HFSC320-XA400000 STARTER MOTOR Diagram

STARTER MOTOR ASSY.

31200-MAH-008

Unavailable

TERMINAL SET, BRUSH

31201-MR6-008

$23.39

BOLT, SETTING This part replaces 31205-MF5-008.

31205-MR1-008

$5.26

BOLT, SETTING

31205-MR1-008

$5.26

HOLDER SET, BRUSH

31206-MR6-008

$24.58

RING

31207-KS5-901

$3.12

CABLE, STARTER MOTOR (NOT AVAILABLE)

32410-MAH-000

Unavailable

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

COVER, BATTERY GROUND (NOT AVAILABLE)

32417-MM8-000

Unavailable

CABLE, BATTERY GROUND

32601-MAH-000

Unavailable

NUT-WASHER (6MM)

90071-MB0-000

$1.97

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

O-RING (24.4X3.1)

91312-MG7-003

$6.34

O-RING (4X2)

91320-MB0-000

$2.43

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
