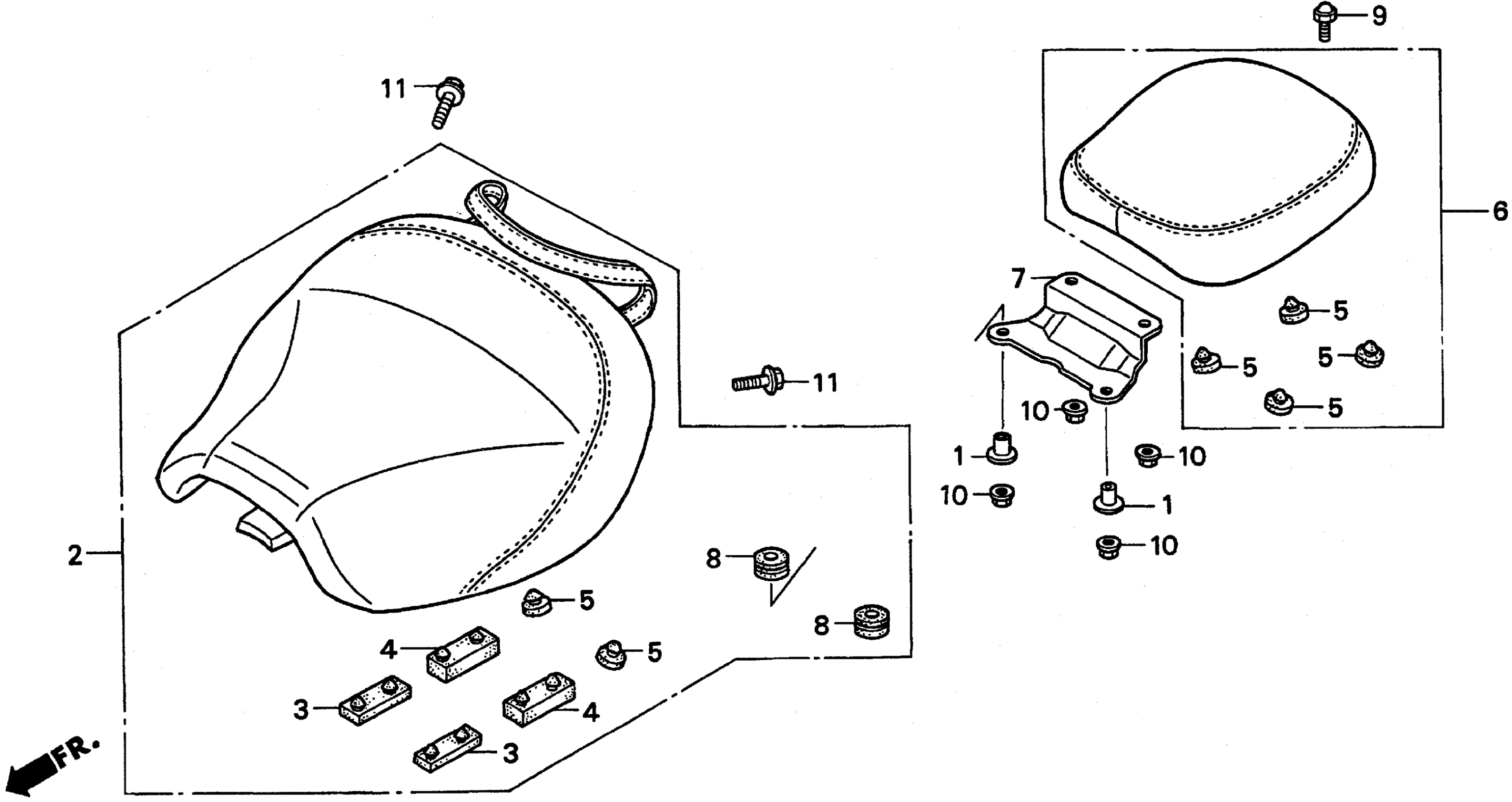

Honda VT1100C2A (99) SHADOW ACE, USA, VIN# 1HFSC320-XA400000 SEAT Diagram

#

Description

Price

1

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.28

1

COLLAR, FR. FENDER (WHITE)

61104-428-010

$4.28

1

COLLAR, FR. FENDER (BLACK)

61104-428-730

$4.01

2

SEAT ASSY., MAIN (NOT AVAILABLE)

77200-MAH-A80

Unavailable

3

RUBBER, SEAT SETTING

77204-312-000

$4.83

4

RUBBER B, SEAT SETTING (SOURCE: VINTAGE PARTS INC.)

77204-MAH-A80

$5.84

5

RUBBER B, SEAT STOPPER

77215-GC2-000

$4.83

6

SEAT ASSY., RR.

77300-MAH-000

Unavailable

7

STAY A, RR. SEAT

77301-MAH-000

Unavailable

8

CUSHION, TAILLIGHT

80112-MA6-000

$3.74

9

BOLT, CAP (6X16)

90103-GK4-000

Unavailable

10

NUT, FLANGE (6MM)

94050-06080

$0.60

11

BOLT, FLANGE (8X16)

95701-08016-07

$1.62
