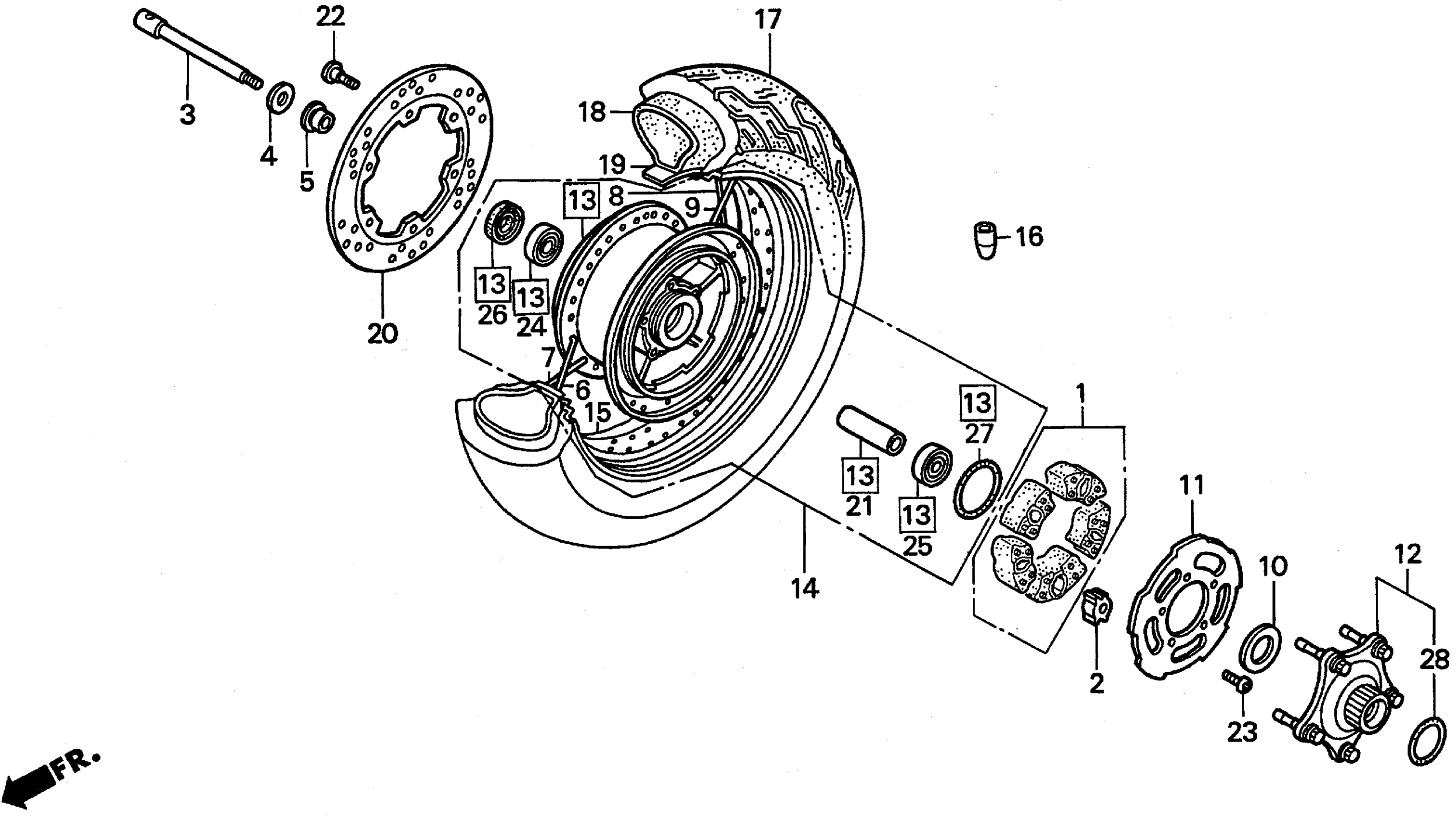

Honda VT1100C2A (99) SHADOW ACE, USA, VIN# 1HFSC320-XA400000 REAR WHEEL Diagram

DAMPER SET, WHEEL

06410-MBH-000

$54.62

PIECE, DAMPER WHEEL

41242-MR5-000

$17.49

AXLE, RR. WHEEL

42301-MM8-000

Unavailable

SPACER, RR. BRAKE SIDE

42312-463-000

$13.39

COLLAR, RR. BRAKE PANEL SIDE

42313-422-000

$38.23

SPOKE SET, R. RR. (INNER)

42604-MAH-405

$4.74

SPOKE SET, R. RR. (OUTER)

42605-MAH-405

$5.21

SPOKE SET, L. RR. (INNER)

42606-MAH-405

$5.21

SPOKE SET, L. RR. (OUTER)

42607-MAH-405

Unavailable

WASHER, THRUST

42616-MT3-000

$7.51

HOLDER, DAMPER

42617-MT8-000

$42.97

FLANGE SET, FINAL DRIVEN

42630-MAH-305

$192.11

HUB SUB-ASSY., RR. WHEEL

42635-MAH-A20

$570.80

WHEEL SUB-ASSY., RR. (NOT AVAILABLE)

42650-MAH-305

Unavailable

RIM, RR. WHEEL This part replaces 42701-MAH-003.

42701-MAH-013

$173.18

RIM, RR. WHEEL

42701-MAH-013

$173.18

WEIGHT, BALANCE (20G) This part replaces 42707-MR6-670.

42705-MEG-003

$8.08

WEIGHT, BALANCE (15G) This part replaces 42708-MR1-670.

42704-MEG-003

$8.08

TIRE, RR. (170/80-15) (DUNLOP) This part replaces 42711-MAH-A41.

42711-MM8-877

Unavailable

TIRE, RR. (170/80-15) (DUNLOP)

42711-MM8-877

Unavailable

TUBE, TIRE (DUNLOP)

42712-MR1-672

$41.43

FLAP, TIRE (45-15) (DUNLOP)

42713-MR1-672

$7.32

DISK, RR. BRAKE This part replaces 43251-MAZ-000.

43251-MBR-J11

$373.92

DISK, RR. BRAKE

43251-MBR-J11

$373.92

DISK, RR. BRAKE This part replaces 43351-MS2-000.

43251-MBR-J11

$373.92

COLLAR, FR. AXLE DISTANCE

44620-MT3-000

$18.26

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.21

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

BOLT, DISK (6X17)

90106-MBB-000

$3.65

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$27.50

BEARING, RADIAL BALL (20X47X20.6) (NTN)

91053-MN5-003

$74.94

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$12.13

DUST SEAL (30X47X8) (NOK)

91253-443-762

$12.13

O-RING (61X2)

91302-MA6-003

$5.17

O-RING (46.5X3.5)

91358-MB0-000

$3.76
