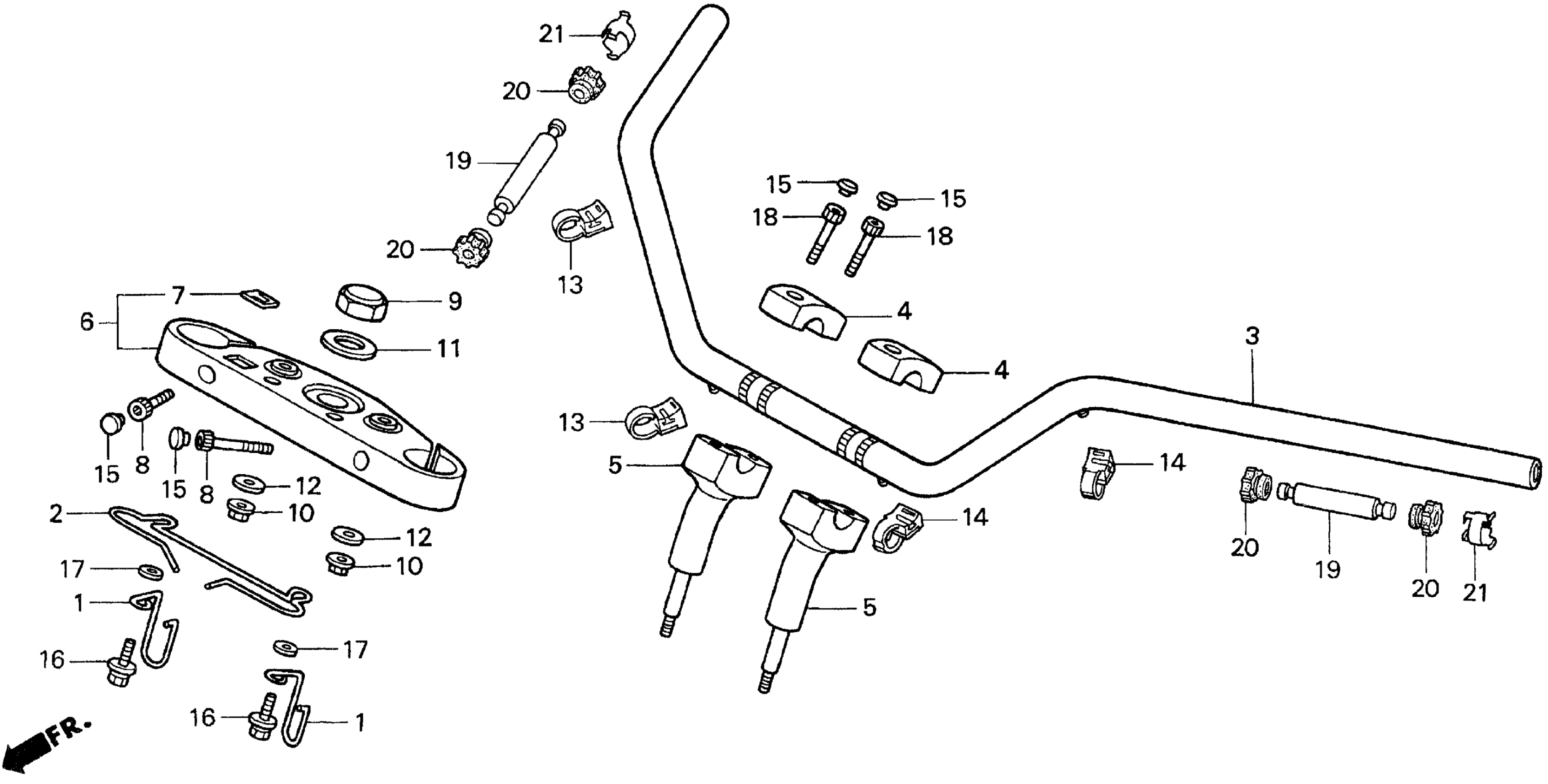

Honda VT1100C2A (99) SHADOW ACE, USA, VIN# 1HFSC320-XA400000 HANDLEBAR Diagram

#

Description
Price

1

CLIP, HARNESS

38128-MM8-000

$4.87

2

GUIDE, CABLE

50337-MM8-000

$20.82

3

HANDLEBAR (SOURCE: VINTAGE PARTS INC.)

53100-MAH-A80

$165.54

4

HOLDER, HANDLE (UPPER)

53131-MM8-000

$17.64

5

HOLDER, HANDLE (LOWER)

53231-MM8-000

$34.47

6

BRIDGE, FORK TOP (NOT AVAILABLE)

53300-MAH-A80

Unavailable

7

EMBLEM, WING MARK

86150-MR1-760

$8.09

8

BOLT, SOCKET (7X55)

90167-MM8-000

Unavailable

9

NUT, STEERING STEM

90304-415-000

$18.21

10

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.19

10

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.19

11

WASHER, STEERING STEM

90503-283-000

$4.17

12

WASHER, HANDLE CUSHION

90535-KB9-000

$5.86

13

CLIP, CABLE (12MM)

90690-GHB-691

$2.69

14

CLIP, CABLE (17MM)

90690-GHB-701

$2.80

15

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.36

16

BOLT-WASHER (6X20)

93404-06020-00

$1.50

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

17

WASHER, PLAIN (6MM)

94101-06800

Unavailable

18

BOLT, SOCKET (8X32)

96700-08032-10

$1.50

19

WEIGHT, HANDLE

53106-KG1-920

$12.37

20

RUBBER, HANDLE WEIGHT

53107-MM8-000

$4.66

21

RING, HANDLE WEIGHT SNAP

53108-KW9-920

$6.72
