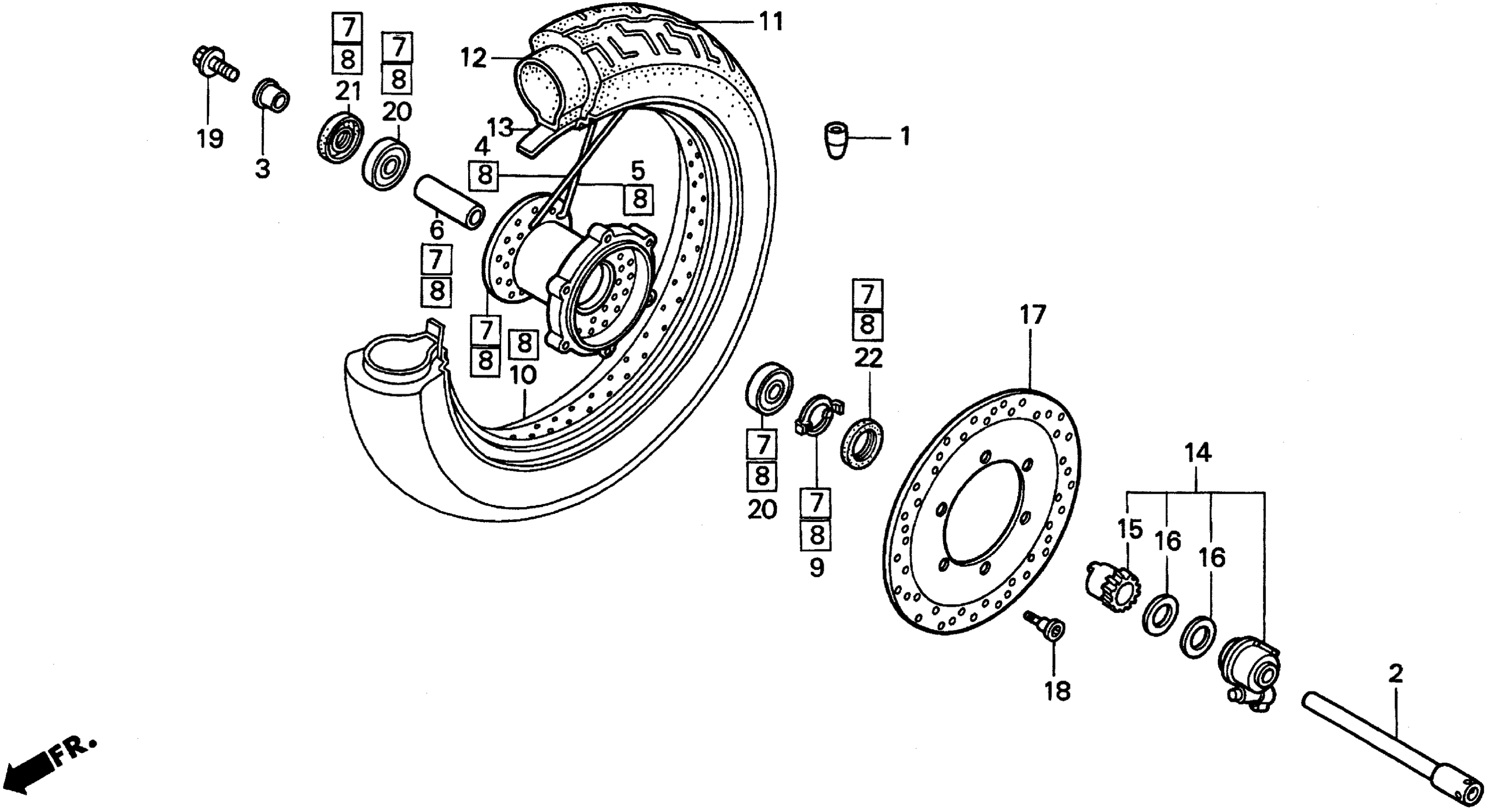

Honda VT1100C2A (99) SHADOW ACE, USA, VIN# 1HFSC320-XA400000 FRONT WHEEL Diagram

WEIGHT, BALANCE (20G) This part replaces 42707-MR6-670.

42705-MEG-003

$8.08

WEIGHT, BALANCE (15G) This part replaces 42708-MR1-670.

42704-MEG-003

$8.08

AXLE, FR. WHEEL

44301-MAH-671

$61.88

COLLAR, FR. WHEEL SIDE

44311-MM8-000

$19.15

SPOKE SET, FR. (INNER)

44604-MAH-405

Unavailable

SPOKE SET, FR. (OUTER)

44605-MAH-405

Unavailable

COLLAR, FR. AXLE DISTANCE

44620-MBC-000

$16.92

HUB SUB-ASSY., FR. WHEEL (NOT AVAILABLE)

44635-MAH-A40

Unavailable

WHEEL SUB-ASSY., FR. (NOT AVAILABLE)

44650-MAH-A40

Unavailable

RETAINER, GEAR BOX

44680-ML7-000

$5.08

RIM, FR. WHEEL (NOT AVAILABLE)

44701-MAH-003

Unavailable

TIRE, FR. (120/90-18) (65H) (BLACK WALL) (DUNLOP) (NOT AVAILABLE)

44711-MAH-672

Unavailable

TUBE, TIRE (120/90-18) (DUNLOP) (NOT AVAILABLE)

44712-MAH-671

Unavailable

FLAP, TIRE (30-18) (DUNLOP) (NOT AVAILABLE)

44713-MAH-671

Unavailable

BOX ASSY., SPEEDOMETER GEAR

44800-MM8-003

$98.63

GEAR, SPEEDOMETER

44806-MM8-003

$32.36

WASHER, SPEEDOMETER GEAR

44809-ML7-003

$2.99

DISK, FR. BRAKE

45251-MBC-000

Unavailable

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.21

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

BOLT, FR. AXLE

90305-ML7-000

$10.50

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$27.50

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-003.

91252-MC4-013

$6.98

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.98

DUST SEAL (45X55X5) (ARAI)

91258-ML7-003

$8.66
