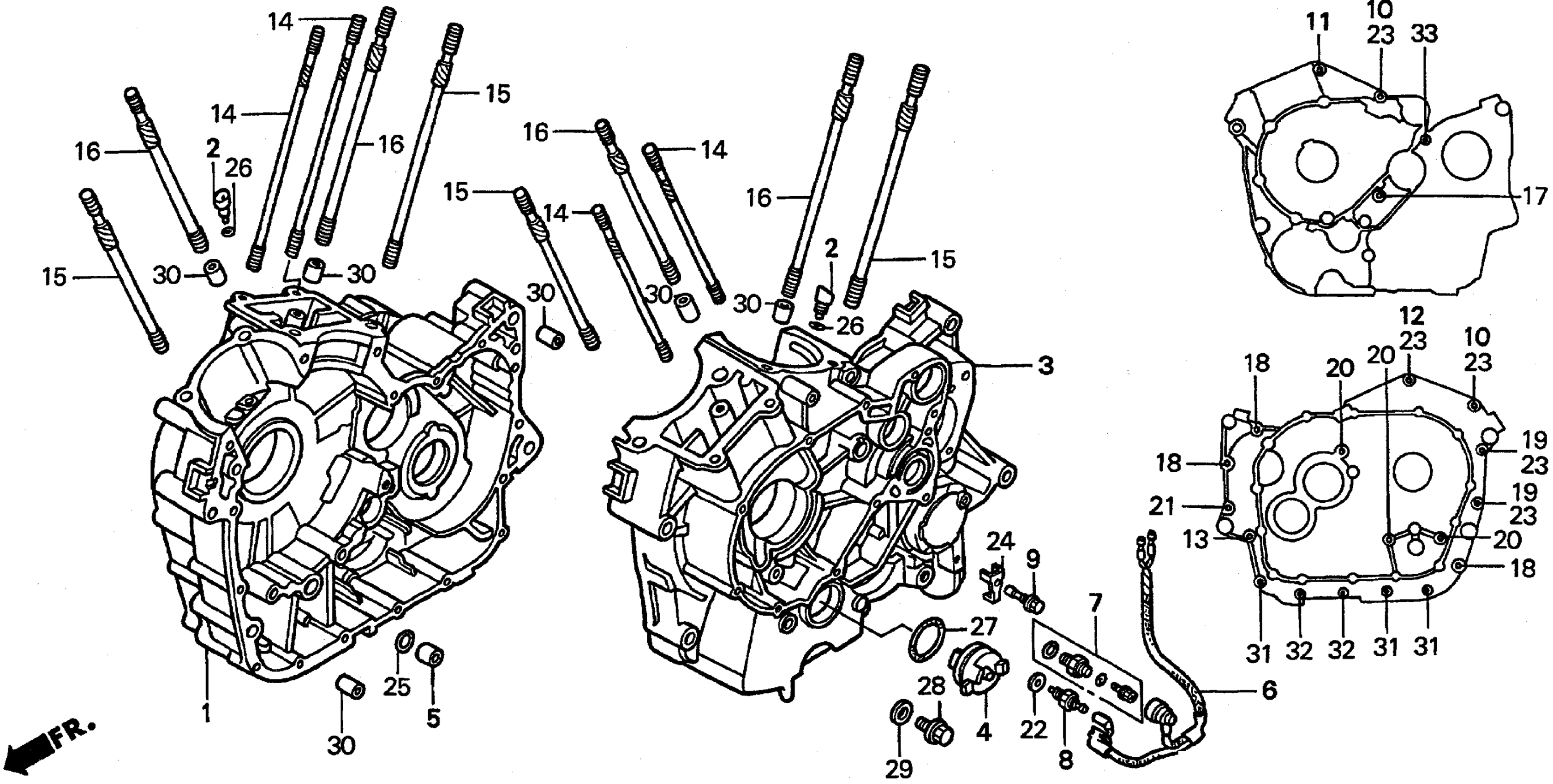

Honda VT1100C2A (99) SHADOW ACE, USA, VIN# 1HFSC320-XA400000 CRANKCASE Diagram

CRANKCASE, R.

11100-MBC-000

Unavailable

JET, OIL

11140-MAA-A00

$11.20

CRANKCASE, L. (SOURCE: VINTAGE PARTS INC.)

11200-MBC-000

Unavailable

PLUG, L. CRANKCASE

11211-MK7-770

$29.02

COLLAR, O-RING

15155-300-000

$3.47

SUB-HARNESS A (NOT AVAILABLE)

32101-MAH-000

Unavailable

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

SWITCH ASSY., NEUTRAL (TOYO)

35600-KE8-003

$18.90

BOLT, ORIFICE (1.6MM)

90002-MG8-000

$18.00

BOLT, FLANGE (8X125)

90005-MG8-000

$5.71

BOLT, SPECIAL (6X12)

90006-MAH-000

$4.07

BOLT, FLANGE (8X136)

90006-MG8-000

$7.03

BOLT, SPECIAL FLANGE (10X107)

90009-MAH-000

$16.39

BOLT, STUD (8X259)

90011-MAH-000

$11.62

BOLT, STUD (10X269)

90012-MBC-003

$17.84

BOLT, STUD (10X25)

90013-MBC-003

$18.84

BOLT, UBS (8X110)

90030-MS9-750

$10.59

BOLT, FLANGE (8X45)

90052-MG8-000

$4.59

BOLT, FLANGE (8X80)

90053-MG8-000

$5.70

BOLT, FLANGE (8X80)

90053-MM8-680

$5.67

BOLT, FLANGE (8X100)

90054-MG8-000

$7.02

WASHER, NEUTRAL

90443-MJ6-000

$1.92

WASHER, SEALING (8MM)

90441-MG8-000

$2.28

PLATE, SEALING (6MM)

90444-MG8-000

$4.89

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.92

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.99

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.67

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

PIN, DOWEL (14X20)

94301-14200

$2.28

BOLT, FLANGE (6X50)

95701-06050-07

$1.49

BOLT, FLANGE (6X90)

95701-06090-07

$2.39

BOLT, FLANGE (6X100)

96001-06100-07

$2.15
