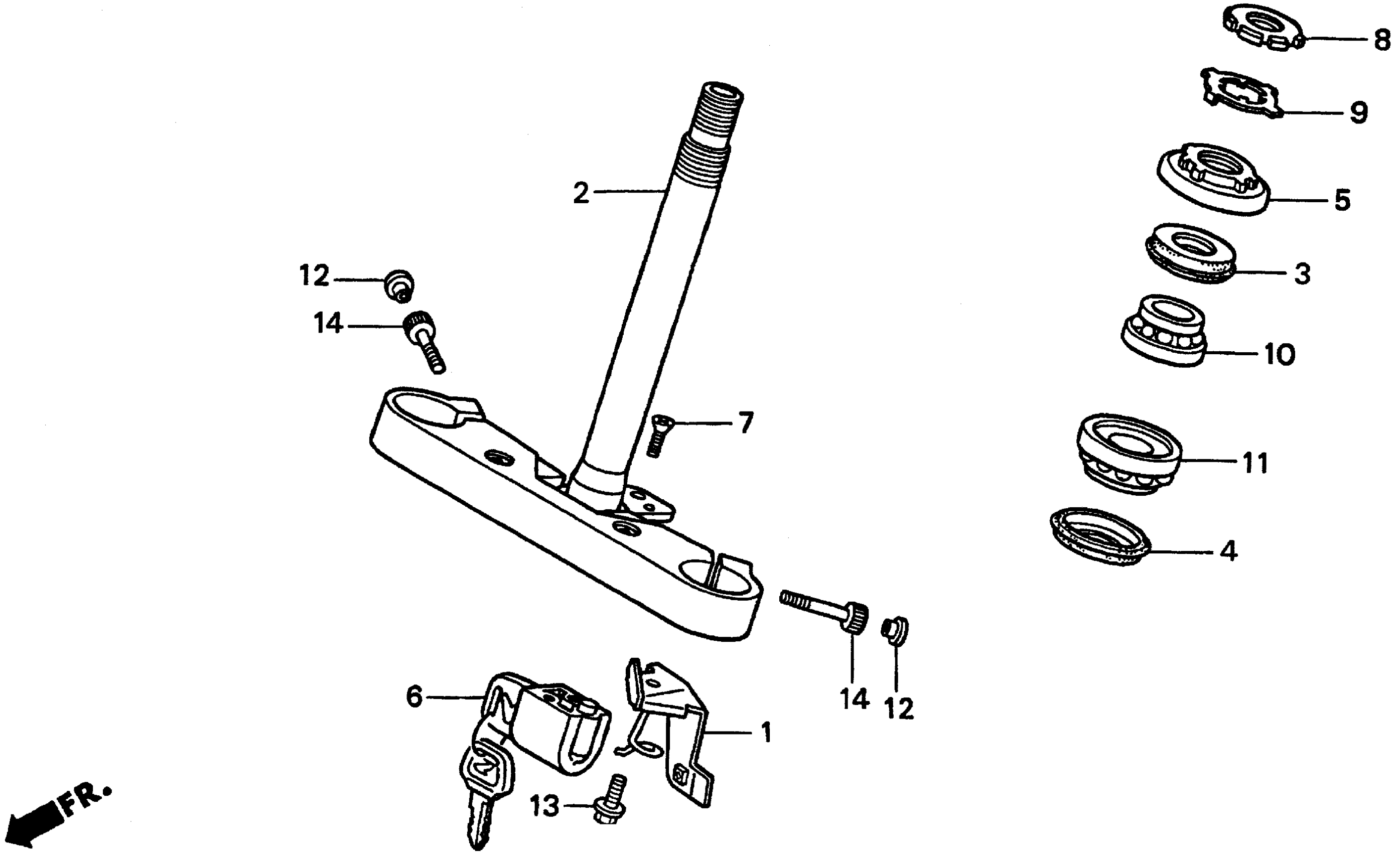

Honda VT1100C2A (98) SHADOW ACE, USA, VIN# 1HFSC320-WA300001 STEERING STEM Diagram

#

Description

Price

1

CLAMP, FR. BRAKE HOSE (NOT AVAILABLE)

45130-MBC-000

Unavailable

2

STEM, STEERING This part replaces 53200-MAH-671.

53200-MM8-881

Unavailable

3

DUST SEAL, STEERING (UPPER) (ARAI)

53213-MB4-771

$12.13

4

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

5

THREAD, STEERING HEAD TOP

53220-422-000

$32.73

5

THREAD, STEERING HEAD TOP This part replaces 53220-460-840.

53220-422-000

$32.73

6

LOCK, HANDLEBAR

53600-086-007

$47.89

7

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

8

THREAD B, STEERING HEAD TOP

90302-425-830

$21.73

9

WASHER, LOCK

90506-425-830

$7.05

10

BEARING, HEAD PIPE (UPPER) (KOYO)

91015-KT8-005

$36.57

11

BEARING, HEAD PIPE (LOWER) (KOYO)

91016-KT8-005

$36.57

12

CAP, SOCKET BOLT (8MM)

91455-MA6-750

$3.71

13

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

14

BOLT, SOCKET (10X28)

96700-10028-10

$2.11
