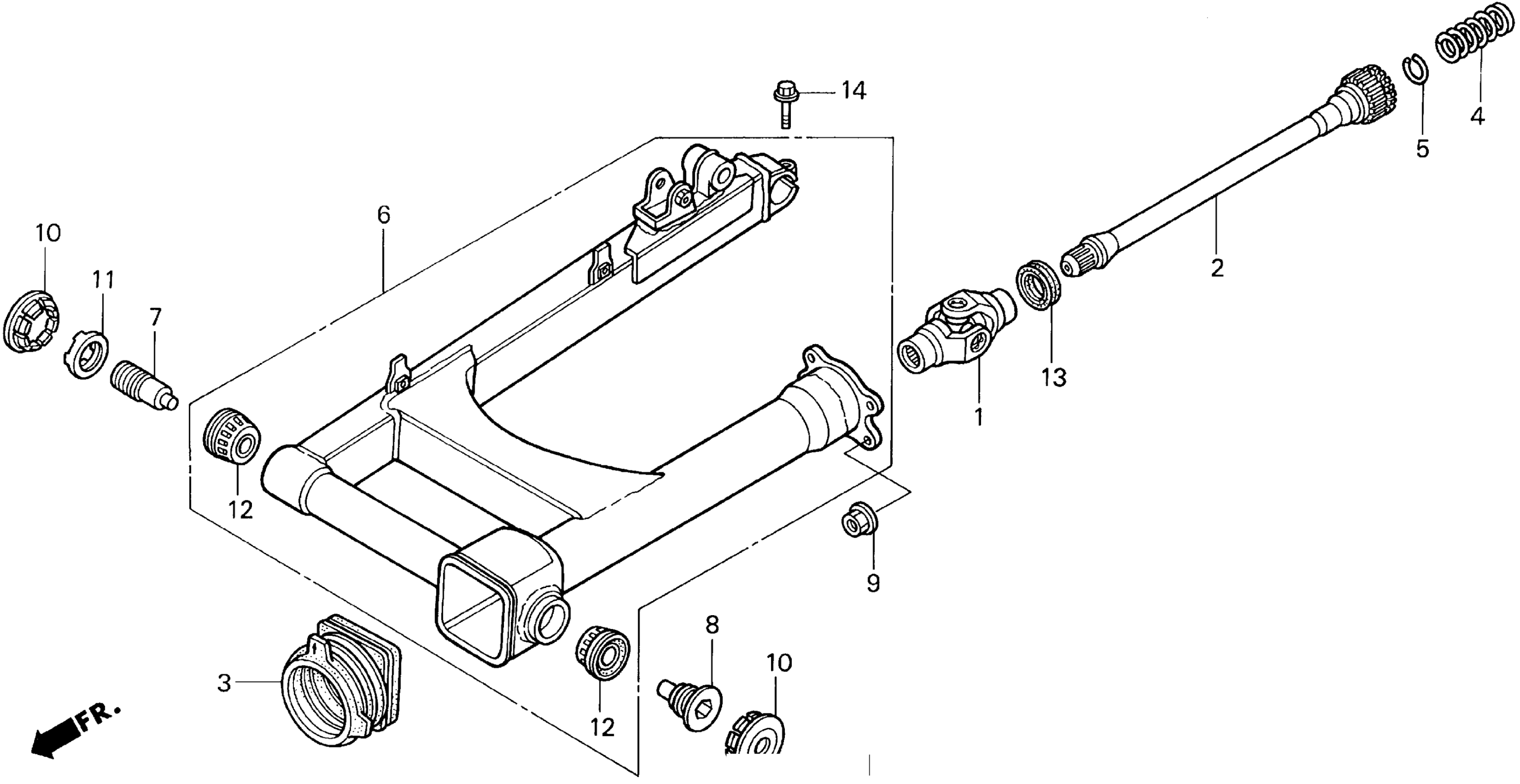

Honda VT1100C2A (96) SHADOW 1100 - ACE, USA, VIN# 1HFSC320-TA100001 VT1100C2SWINGARM Diagram

#

Description

Price

1

JOINT, YOKE (NOT AVAILABLE)

40200-MG8-003

Unavailable

2

SHAFT, DRIVE (NOT AVAILABLE)

40201-MG8-003

Unavailable

3

BOOT, JOINT

40207-MG8-000

$12.00

4

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.90

5

RING, STOPPER

40221-MB0-000

$4.53

6

SWINGARM ASSY. (SOURCE: VINTAGE PARTS INC.)

52100-MAH-000

Unavailable

7

BOLT, R. SWINGARM PIVOT (NOT AVAILABLE)

90121-HA6-000

Unavailable

8

BOLT, L. SWINGARM PIVOT

90122-MB0-000

Unavailable

9

NUT, HEX. (10MM)

90308-357-000

$4.85

10

CAP, R. LOCK NUT

90312-MB0-700

$18.22

11

NUT, SWINGARM PIVOT LOCK

90355-469-000

$17.54

12

BEARING, TAPER ROLLER (17X40X13.25) (KOYO)

91066-HA7-672

$62.07

13

OIL SEAL (27X43X7)

91261-ME9-005

$12.13

14

BOLT, FLANGE (8X32)

95701-08032-00

$1.49
